About the DCS RDV366N

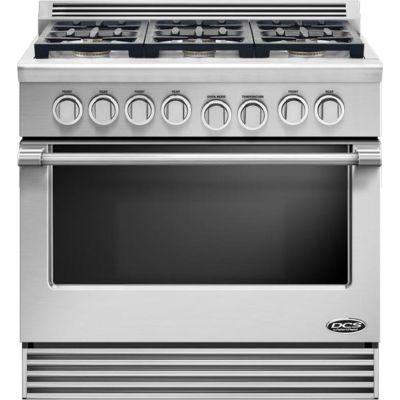

- DCS RDV366N 36 Inch Pro-Style Dual Fuel Range with 6 Sealed Burners
- 4.7 cu. ft. Self-Cleaning Oven with 5 Adjustable Extension Telescopic Racking System and Illuminated Knobs: Stainless Steel
- Natural Gas
Brand:
Series:
Professional
Style:
Slide-In
Width:
35 7/8"
Height:
36 1/4"
Depth:
30 1/4"
Capacity:
4.7 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
30
This range is as powerful as your culinary imagination. Patented Dual Flow Burners allow simmer temperatures as low as 140 and high boiling or frying outputs up to 17,500 BTU's. The large oven has a Full Extension Telescopic Racking System for easy accessibility.
About DCS
What do you get when you match style with performanceE A kitchen to die for! DCS appliances have a long and proud history of making top quality, commercial grade kitchen appliances for professional chefs and, more recently, for home chefs too. The result is brilliantly engineered indoor and outdoor appliances that deliver elegance, durability, performance and a high degree of functionality - just the ingredients that today's chef demands! Not only are DCS appliances the real deal, they also make a bold statement in your outdoor kitchen. The polished stainless steel welds provide a seamless finish and the hand crafted design creates an air of quiet strength and confidence, backed up by precise controls that keep you in charge of every aspect - from food storage and preparation, right through to clean-up. DCS appliances. Proof that you don't need to be a chef in order to cook like one. Available at Designer Appliances.
Key Features
Perfect Heat
- Sealed Dual Flow Burners, unique to DCS appliances, put you in control. The 17,500 BTU burner boils fast, but you can also gently simmer on any burner at 140CF.
Easy to Clean
- Sealed burners and an encapsulated cooking surface, coupled with a stainless steel finish, make the cooking surface easy to clean. Removable side racks make the oven space easy to clean too.
Information at a Glance
- Two powerful incandescent lights brightly illuminate the inside of the oven. All control knobs have an illuminated halo system so you can see what's happening at a glance.
Space
- The large convection oven holds full-size baking sheets. A full extension telescopic racking system gives smooth, easy access to the oven.
Available at Designer Appliances
- www.Designer Appliances.com
RDV366N User Guide
Specifications
Burner Output
Set 1 Output
17500
Set 2 QTY
2
Set 2 Output
12500
Set 1 QTY
4
Oven Features
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Top
Primary Oven Capacity
4.7 Cu. Ft.
Temperature Probe
No
Interior Oven Light
Yes
Racks
3
Proof Mode
No
Broiler Pan Included
Yes
Removable Door
Yes
Cooktop Features
Griddle
No
Burners / Elements
6
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Product Information
Brand
DCS
Model
RDV366N
MPN
71074
Capacity
Number of Burners
6
Burner
Burner 1 Output
17500
Burner 2 Output
12500
GTIN
UPC
780405710741
Technical Details
Star-K Certified
No
ADA Compliant
No
Ignition Type
Electronic
Oven Wattage
4,000
LP Conversion
No
Amps
30
Voltage
240 Volts
Specifications:
Series
Professional
Oven Features
Capacity
4.7 Cu. Ft.
Power
Electric
Racks
3 Adjustable, 5 Shelf Positions
Convection Cooking
Yes
Self-Cleaning
Yes
Telescopic Racking System
Yes
Concealed Element
Yes
Baking Performance
2,500 Watts
Broiling Performance
4,000 Watts
Oven Functions
Convection Baking, Roasting, Convection Broiling, Defrosting, Reheating
Cooktop Features
Lowest Simmer
3,000 BTU/hr at 140° F, All Burners
Power
Gas
Burners
6 Dual Flow Sealed Burners
Sealed Range Top
Yes
Front Left Burner
17,500 Maximum BTU/hr
Front Middle Burner
12,500 BTU/hr
Front Right Burner
17,500 Maximum BTU/hr
Rear Left Burner
12,500 Maximum BTU/hr
Rear Middle Burner
17,500 BTU/hr
Rear Right Burner
17,500 Maximum BTU/hr
Power Requirements
Electric
120-240V/60Hz/30A
Gas
0.5 NPT, Minimum 5/8" Diameter Flex Line
Natural Gas Pressure
6" to 9" W.C.
Liquid Propane Pressure
11" to 14" W.C.
Appearance
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Color
Stainless Steel
Style
Slide-In
Fuel Type
Dual Fuel
Fuel Subtype
Natural Gas
Dimensions
Width
35 7/8 Inch
Depth
30 1/4 Inch
Height
36 1/4 Inch
Warranty
Parts and Labor
2 Years, Limited
Dimensions
Width
35 7/8"
Depth with Handles
30 1/4"
Depth without Handles
27 1/2"
Height
35 3/4" - 36 3/4"
Shipping Weight
420 Lbs.
General
Manufacturer
DCS
