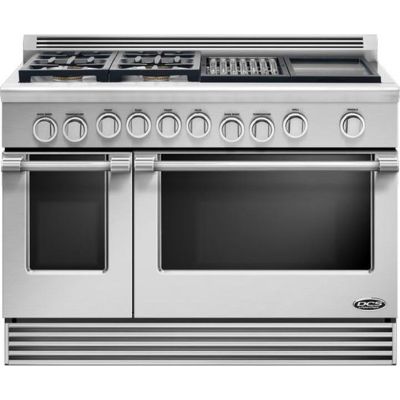

About the DCS RDV484GGL
- 4 Sealed Burners
- 6.7 cu. ft. Capacity
- Self-Cleaning Oven
- 5 Adjustable Extension Telescopic Racking System
- 18,000 BTU Griddle
- 12,000 BTU Grill
Brand:
Series:
Professional
Style:
Slide-In
Width:
47 7/8"
Height:
36 1/4"
Depth:
30 1/4"
Capacity:
4.7 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
Yes
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
50
Designed to meet the demands of the world's finest chefs, you need this large, 4,000-watt, self-cleaning convection oven. The oven has the Full Extension Telescopic Racking System for easy accessibility. The gas cooktop patented Dual Flow burners simmer as low as 140 and boil up to 17,500 BTU's. The cooktop also features a 12,000-BTU grill and an 18,000-BTU griddle. To aid the grill, the advanced Grease Management System grease-channeling technology fits neatly in the DCS DishDrawer.
About DCS
What do you get when you match style with performanceE A kitchen to die for! DCS appliances have a long and proud history of making top quality, commercial grade kitchen appliances for professional chefs and, more recently, for home chefs too. The result is brilliantly engineered indoor and outdoor appliances that deliver elegance, durability, performance and a high degree of functionality - just the ingredients that today's chef demands! Not only are DCS appliances the real deal, they also make a bold statement in your outdoor kitchen. The polished stainless steel welds provide a seamless finish and the hand crafted design creates an air of quiet strength and confidence, backed up by precise controls that keep you in charge of every aspect - from food storage and preparation, right through to clean-up. DCS appliances. Proof that you don't need to be a chef in order to cook like one. Available at Designer Appliances.
Key Features
Perfect Heat
- Sealed Dual Flow Burners, unique to DCS appliances, put you in control. The 17,500-BTU burner boils fast, but you can also gently simmer on any burner at 140CF.
Space
- The large convection oven holds full-size baking sheets, while, as a Dual Fuel model, a concealed bake element allows 12% more usable space. A full extension telescopic racking system gives smooth, easy access to the oven.
Information at a Glance
- Two powerful incandescent lights brightly illuminate the inside of the oven. All control knobs have an illuminated halo system so you can see what's happening at a glance.
Easy to Clean
- Sealed burners and an encapsulated cooking surface, coupled with a stainless steel finish, make the cooking surface easy to clean. Removable side racks make the oven space easy to clean too.
Available at Designer Appliances
- www.Designer Appliances.com
RDV484GGL User Guide
Specifications
Dimensions
Height
36 1/4 Inch
Depth
30 1/4 Inch
Width
47 7/8 Inch
Oven Features
Primary Oven Capacity
4.7 Cu. Ft.
Secondary Oven Capacity
2 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
Yes
Sabbath Mode
No
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Double Oven
Yes
Broiler Pan Included
Yes
Proof Mode
Yes
Racks
5
Removable Door
Yes
Cooktop Features
Griddle
Yes
Grill
Yes
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Burner Output
Set 1 QTY
2
Set 1 Output
17500
Set 2 QTY
2
Set 2 Output
12500
Burner 1 Output
17500
Burner 2 Output
12500
Product Information
Brand
DCS
Model
RDV484GGL
MPN
71062
UPC
780405710628
Series
Professional
Capacity
Number of Burners
4
Technical Details
Star-K Certified
No
ADA Compliant
No
Ignition Type
Electronic
Oven Wattage
4,000
LP Conversion
Yes
Amps
50
Voltage
240 Volts
GTIN
Dimensions
Depth with Handles
30 1/4"
Depth without Handles
27 1/2"
Height
35 3/4" - 36 3/4"
Shipping Weight
540 Lbs.
Width
47 7/8"
Primary Oven
Self-Cleaning
Yes
Telescopic Racking System
Yes
Concealed Element
Yes
Baking Performance
3,000 Watts
Broiling Performance
4,000 Watts
Convection Cooking
Yes
Racks
3 Adjustable, 5 Shelf Positions
Capacity
4.7 Cu. Ft.
Power
Electric
Secondary Oven
Capacity
2.0 Cu. Ft.
Power
Electric
Racks
2 Adjustable, 5 Shelf Positions
Baking Performance
2,250 Watts
Broiling Performance
3,600 Watts
Proofing Function
100°F
Cooktop Features
Sealed Range Top
Yes
Grill
12,000 BTU
Front Left Burner
17,500 Maximum BTU/hr
Rear Left Burner
12,500 Maximum BTU/hr
Front Right Burner
12,500 Maximum BTU/hr
Rear Right Burner
17,500 Maximum BTU/hr
Lowest Simmer
3,000 BTU/hr at 140° F, All Burners
Power
Gas
Burners
4 Dual Flow Sealed Burners
Griddle
18,000 BTU
Grease Management System
Yes
Oven Features
Oven Functions
Convection Baking, Roasting, Convection Broiling, Proofing, Defrosting, Reheating
Appearance
Fuel Type
Dual Fuel
Fuel Subtype
Liquid Propane
Style
Slide-In
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Power Requirements
Liquid Propane Pressure
11" to 14" W.C.
Electric
120-240V/60Hz/50A
Gas
0.5 NPT, Minimum 5/8" Diameter Flex Line
Natural Gas Pressure
6" to 9" W.C.
Warranty
Parts and Labor
2 Years, Limited
General
Manufacturer
DCS
