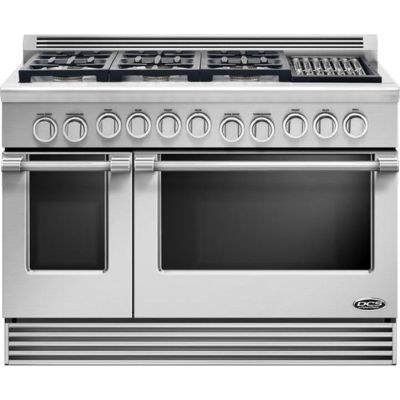

About the DCS RGV486GLN
- 48" Pro-Style Slide-In Gas Range
- 6 Sealed Burners, Grill
Brand:
Series:
Professional
Style:
Slide-In
Width:
47 7/8"
Height:
36 1/4"
Depth:
30 1/4"
Capacity:
5.3 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
Yes
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
With power, control and performance, the patented Dual Flow Burners allow simmer temperatures as low as 140 and high output up to 17,500 BTU's. The cooktop includes a 12,000-BTU grill and new Grease Management System grease channeling technology that fits neatly in the DCS DishDrawer. The large convection oven, with Full Extension Telescopic Racking System, makes for easy accessibility.
About DCS
What do you get when you match style with performanceE A kitchen to die for! DCS appliances have a long and proud history of making top quality, commercial grade kitchen appliances for professional chefs and, more recently, for home chefs too. The result is brilliantly engineered indoor and outdoor appliances that deliver elegance, durability, performance and a high degree of functionality - just the ingredients that today's chef demands! Not only are DCS appliances the real deal, they also make a bold statement in your outdoor kitchen. The polished stainless steel welds provide a seamless finish and the hand crafted design creates an air of quiet strength and confidence, backed up by precise controls that keep you in charge of every aspect - from food storage and preparation, right through to clean-up. DCS appliances. Proof that you don't need to be a chef in order to cook like one. Available at Designer Appliances.
Key Features
Perfect Heat
- Sealed Dual Flow Burners, unique to DCS appliances, put you in control. The 17,500-BTU burner boils fast, yet you can also gently simmer on any burner at 140CF.
Information at a Glance
- Two powerful incandescent lights brightly illuminate the inside of the oven. All control knobs have an illuminated halo system so you can see what's happening at a glance.
Space, Space and More Space
- The large convection oven holds full size baking sheets. A full extension telescopic racking system gives smooth, easy access to the oven.
Infrared Broiler
- DCS gas ranges have a powerful infrared broiler that delivers up to 19,000 BTU's and provides intense heat directly to the food. This is perfect for broiling as you can get a crisp skin on food while retaining the moisture inside.
Easy to Clean
- Sealed burners and an encapsulated cooking surface, coupled with a stainless steel finish, make the cooking surface easy to clean. Removable side racks make the oven space easy to clean too.
Available at Designer Appliances
- www.Designer Appliances.com
RGV486GLN Service & Warranty booklet
Specifications
Oven Features
Sabbath Mode
No
Secondary Oven Capacity
2.4 Cu. Ft.
Self-Cleaning
No
Temperature Probe
No
Timer
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Broiler Element Location
Top
Broiler Pan Included
Yes
Oven Control Type
Knobs
Primary Oven Capacity
5.3 Cu. Ft.
Proof Mode
Yes
Proofing
Yes
Racks
3
Interior Oven Light
Yes
Removable Door
Yes
Dimensions and Weight
Depth from Wall to Front without Handle and Knobs
29"
Height
35 3/4" - 36 3/4"
Shipping Weight
545 Lbs.
Width
47 7/8"
Depth from Wall to Front with Handle
30 1/4"
Depth from Wall to Front of Product with Open Door
46 11/16"
General Specs
Cooktop Burners
6 Sealed, Dual Flow; Grill with Grease Management System
Cooktop/Oven Power
Natural Gas
Gas Requirement
1/2 NPT, Minimum 5/8"-Diameter Flex Line
LP Pressure
11" to 14" W.C.
Natural Gas Pressure
6" to 9" W.C.
Oven Features
Convection Oven; Full Extension Telescopic Racking System; Infrared Broiler
Power Requirement
120V/60Hz/15A; 3-Wire
Specifications:
Series
Professional
Burner Output
Set 1 Output
17500
Set 1 QTY
4
Set 2 Output
12500
Set 2 QTY
2
Capacity
Main Oven
5.3 Cu. Ft.
Secondary Oven
2.4 Cu. Ft.
Oven Specs
Main Bake Oven
30,000 BTU
Main Oven Infrared Broil
19,000 BTU
Number of Positions
5
Number of Racks
2
Secondary Bake Oven
18,000 BTU
Cooktop Specs
Rear right burner
17,500 Maximum BTU/hr
Rear middle burner
17,500 Maximum BTU/hr
Rear left burner
12,500 Maximum BTU/hr
Front left burner
17,500 Maximum BTU/hr
Front middle burner
12,500 Maximum BTU/hr
Front right burner
17,500 Maximum BTU/hr
Grill
12,000 BTU
Lowest Simmer
3,000 BTU/hr at 140° F, All Burners
Appearance
Stainless Steel Handle
Yes
Style
Slide-In
Viewing Window
Yes
Clock
No
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Double Oven
Yes
Drawer
None
Fuel Subtype
Natural Gas
Fuel Type
Gas
Technical Details
Star-K Certified
No
Voltage
120 Volts
ADA Compliant
No
Amps
15
Oven BTUs
30,000
LP Conversion
No
Ignition Type
Electronic
GTIN
UPC
780405710482
Dimensions
Width
47 7/8 Inch
Depth
30 1/4 Inch
Height
36 1/4 Inch
Cooktop Features
Cooktop Control Type
Knobs
Burners / Elements
6
Downdraft Ventilation
No
Modules Required
No
Griddle
No
Grill
Yes
Hot Surface Indicator Light
No
Induction
No
Product Information
Brand
DCS
MPN
71048
Model
RGV486GLN
Burner
Burner 1 Output
17500
Burner 2 Output
12500
Capacity
Number of Burners
6
General
Manufacturer
DCS
