discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

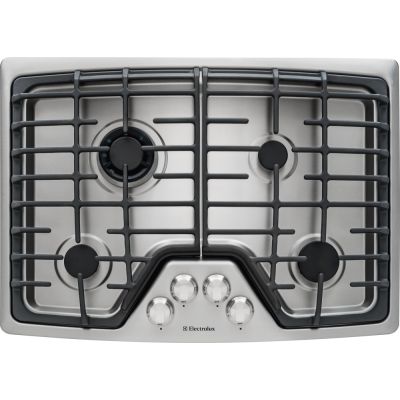

About the Electrolux EW30GC55PS
- 4 Sealed Burners
- Professional-Grade Control Knobs
- Min-2-Max Dual-Flame Sealed Burner
- Continuous Grates
- Electric Pilotless Ignition
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
4 1/4"
Depth:
21 3/4"
Volts:
120 Volts
Amps:
15
This Gas Cooktop from Electrolux brings cooking in the kitchen to the professional level. With its deep-well design, it keeps spills contained for easy cleanup and lowers the cooking surface to countertop-level, which makes moving oversize pots and pans onto and off of the cooking surface much easier. Continuous grates allow easy movement of even the heaviest pots and pans from burner to burner - without lifting.
About Electrolux
Electrolux, the Leading European Premium Appliance Brand. Built on a European heritage of innovation, their appliances help you create your home just the way you want it. Explore their sophisticated products, get design tips from their style trendsetters and turn your home into a reflection of you. Electrolux premium appliances have been used in fine homes and restaurants throughout Europe for more than 70 years. With 120 designers at eight design studios in seven countries, Electrolux appliances feature a truly unique design and quality that have set the standard in the appliance industry. Most of all, Electrolux helps you create the kitchen you've always wanted. A place that welcomes family and friends and nourishes the body and soul.
Available at Designer Appliances.
Key Features
Easy-to-Use Features
- Sealed burners and dishwasher-safe grates for easy cleanup
- Perfect over a wall oven
- Mounts above a single wall oven for additional installation options.
- Platinum Star Limited Warranty
- including a limited warranty with 3-year coverage on parts and 1-year coverage on labor without charge
- ADA Compliant
- When properly installed, this model is ADA-qualified based on the United States Access Board's ADA/ABA Accessibility Guidelines and the Department of Justice's 2010 ADA Standards for Accessible Design
Available at Designer Appliances
- www.Designer Appliances.com
EW30GC55PS Specification Sheet
Specifications
Burner Output
Burner 4 Output
5000
Burner 3 Output
9500
Burner 2 Output
14000
Burner 1 Output
20000
Set 1 QTY
1
Set 1 Output
20000
Set 2 QTY
1
Set 4 Output
5000
Set 4 QTY
1
Set 3 Output
9500
Set 3 QTY
1
Set 2 Output
14000
Dimensions and Appearance
Shipping Weight
54 Lbs.
Overall Height
4 1/4"
Overall Depth
21 3/4"
Gas/Power Supply Connection Location
Right Bottom Rear
Electrical Requirement
120V/15A
Electrical Cable
Yes
Overall Width
30"
Approved for Single Oven Combination Installation
Yes
Function
Burners / Elements
4
Sabbath Mode
No
Hot Surface Indicator Light
No
Induction
No
Downdraft Venting
No
Control Type
Knobs
Burners
4
Product Information
Model #
EW30GC55PS
Brand
Electrolux
UPC
057112990897
Model
EW30GC55PS
Configuration and Overview
Sealed Power Burner
14,000 BTU
Sealed Precision Burner 1
9,500 BTU
Sealed Precision Burner 2
5,000-750 BTU
Linear Flow Burner Valves
Yes
Electric Pilotless Ignition
Yes
LP Gas Conversion Kit
Yes
ADA Compliant
Yes
Min-2-Max Dual Flame Sealed Burner
20,000-1,100 BTU
Continuous Grates
Yes
Professional Grade Burner Controls
Yes
Deep Well-Formed Cooktop
Yes
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
Appearance
Number of Burners
4
Type
Drop-In
Surface Color
Stainless Steel
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
GTIN
EAN
0057112990897
Dimensions
Actual Height
4 1/4 Inch
Actual Depth
21 3/4 Inch
Actual Width
30 Inch
General
Manufacturer
Electrolux
