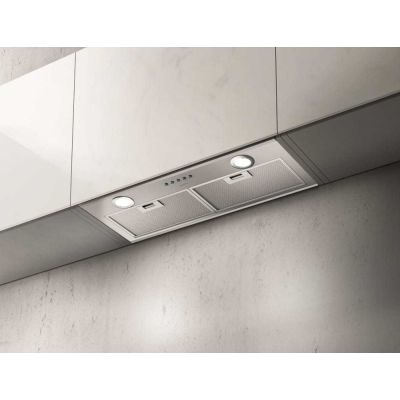

About the Elica EAS428S1
- 28 Inch Cabinet Insert Hood with Backlit Push Controls
- LED Lamps
- 400 CFM
- 3 Speeds and Dishwasher Safe Filters
Brand:
CFM:
400 CFM
Speeds:
3
Venting Type:
Convertible
Style:
Standard Hood
Width:
28 1/4"
Height:
9 1/2"
Depth:
10 3/4"
Key Features
Backlit Push Controls
- Silver metallic controls are lit with a gentle blue illumination.
LED Lamps
- Two LED lights shine brightly over the cooktop to help you achieve the best cooking results.
400 CFM
- Internal blower provides 400 CFM of ventilating power.
3 Speeds
- Choose among 3 speeds to help you remove smoke, grease, and odors.
Dishwasher Safe Filters
- Easily remove the aluminum filters and toss them in the dishwasher for a quick clean.
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Remote Control
No
Dash Replenishment
No
Bluetooth
No
Overview
Controls
Backlit Electronic Push Button 3-Speed
Aluminum Mesh Filters
2
Duct Transition
6" Round with Back Draft Damper (top only)
Filter Type
Dishwasher-Safe, Anodized Aluminum Mesh Filter
Installation Type
Ducted (Recirculating Kit sold separately)
Illumination
2 LED, 2.1 Watts
Finish
Stainless Steel
Warranty
Parts and Labor
2 Years
Blower Performance
Noise Level (min)
1.5 Sones
Noise Level (max)
5.9 Sones
Blower Type
Internal 400 CFM (3 -speed)
Blower Speed 3
400 CFM
Blower Speed 2
280 CFM
Blower Speed 1
160 CFM
Dimensions and Weights
Width
28 1/4"
Height
9 1/2"
Depth
10 3/4"
Capacity
Sones
5.9
Permanent Air Flow Reduction
Yes
Noise Level
5.9 Sones
Dimensions
Width
28 1/4 Inch
Depth
10 3/4 Inch
Height
9 1/2 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Amps
5
Energy Star Rated
No
ADA Compliant
No
Appearance
Venting Type
Convertible
Type
Cabinet Insert
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
190603001747
EAN
0190603001747
Features
Speeds
3
Delay Shut-Off
No
CFM
400 CFM
Approved for Outdoor Use
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Halogen Lighting
No
Filter Type
Mesh
Duct Size
6 Inch
Electrical Specifications
Wattage
340
Volts
120 V
Frequency
60 Hz
Amps
2.8 A
General
Series
Asti
Manufacturer
Elica
Product Information
Brand
Elica
Model
EAS428S1
