About the Fagor VFA78S
- Description
- Specifications
- Features
- Reviews
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Electric
Style:
Smoothtop
Width:
30 11/16"
Height:
1 15/16"
Depth:
20 1/2"
Cutout Width:
29 1/2"
Cutout Depth:
19 5/16"
Volts:
240/208 Volts
Amps:
40
They are a leader in home appliances manufacturing, using the most cutting edge technology and modern design innovations with an ever-constant focus on eco-friendly living.
Sleek look: adds an elegant look to your countertop.

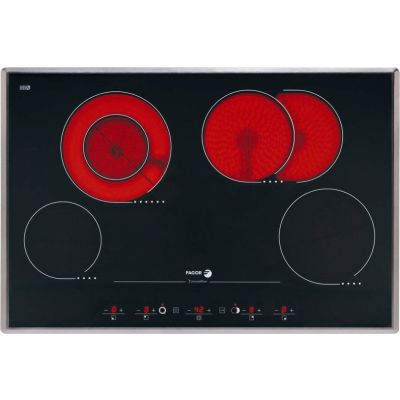

Fagor's new 30 inch vitroceramic hob model has a larger working surface with the advantage of having standard built-in measurements. The oval shape of the rings distributes heat uniformly to an oval pan with easy to use touch controls.
MFG SKU VFA-78S
Key Features
- 30" width.
- 1 Double High Light cooking zone (5"-8").
- 1 Oval High Light cooking zone (7"-11").
- 2 High Light cooking zones (6" and 7").
- Touch Control panel.
- Safety thermostat for all cooking zones.
- Residual heat indicators for all cooking zones.
- 9 level Power selector.
- Timer (1 to 99 minutes) can be assigned to any cooking zone.
- Safety Lock.
- MFG SKU VFA-78S
Specifications
Technical Details
Voltage
240/208 Volts
Amps
40
Modules Required
No
Burner Size and Power
Front Left
6" 1.2kW
Front Right
7" 1.8kW
Left Rear
5"-8" 0.7kW-2.1kW
Right Rear
7"-11" 1.4kW-2.2kW
Automatic Operation
Beeper
Yes
99 Min. Operation Timer
1
Safety
Safety Thermostat for Hitting Area
Yes
Safety Lock
Yes
Residual Heat Display
4
Recipient Detection System
No
Automatic Safety Cut-Off
Yes
Operating Control
Touch Sensor Control Area
Yes
Power Setting Selection Sensor (+/-)
4
Power Display Indication
Yes
General On/Off Sensor
Yes
Double Casing
No
Direct Access Switch for the Desired Heat
No
Burner Output
Set 4 QTY
1
Set 4 Output
1200
Set 3 QTY
1
Set 3 Output
1800
Burner 4 Output
1200
Burner 3 Output
1800
Burner 2 Output
2100
Burner 1 Output
2200
Set 2 QTY
1
Set 2 Output
2100
Set 1 QTY
1
Set 1 Output
2200
Grill
No
Griddle
No
Appearance
Type
Drop-In
Surface Color
Black
Style
Smoothtop
Color
Black
Cooktop
Cooktop
Number of Burners
4
Fuel Type
Electric
General Features
Number of Radiant (High Light)
2
Number of Oval (High Light)
1
Number of Double Circular (High Light)
1
39" Cable Connection Network
Yes
Cooktop Box Size
Width
30 11/16"
Height
1 15/16"
Depth
20 1/2"
Electrical Specifications
Voltage / Amps
240V / 40 Amp / 60Hz
Power
Electric / 7.4kW
Cutout Dimensions
Width
29 1/2"
Depth
19 5/16"
Function
Control Type
Touch Sensor
Burners / Elements
4
Burners
4
Sabbath Mode
No
Induction
No
Hot Surface Indicator Light
Yes
Downdraft Venting
No
Product Information
Brand
Fagor
MPN
VFA-78S
Model
VFA78S
Dimensions
Actual Width
30 11/16 Inch
Actual Height
1 15/16 Inch
Cutout Depth
19 5/16 Inch
Cutout Width
29 1/2 Inch
Actual Depth
20 1/2 Inch
General
Manufacturer
Fagor
