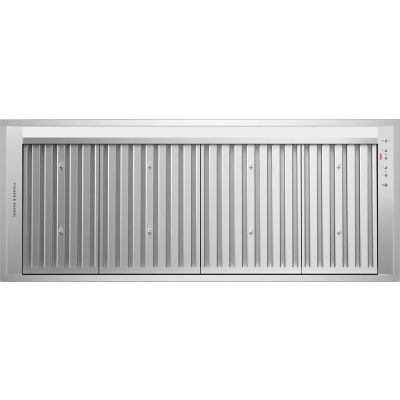

About the Fisher Paykel HPB481912N
- 48 Inch Under Cabinet Insert Range Hood with 5 Fan Speeds
- 1100 CFM Blower
- Dimmable LED Strip Lighting
- Dishwasher Safe Baffle Filters
- LED-Illuminated Soft Touch Buttons
- Filter Cleaning Alert
- Delayed Shut-Off
- Remote Control
Brand:
CFM:
1,100 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
46 7/16"
Height:
16 7/8"
Depth:
18 7/8"
Key Features
5 Fan Speeds
- Allow you to adjust ventilation to meet your needs.
1100 CFM Blower
- A powerful blower that quickly pulls smoke and cooking odors out of the air.
Dimmable LED Strip Lighting
- It provides full coverage of the cooktop, illuminating food in its true color, with no hot or dark spots and no glare or shadows.
- The dimmable lights have faded in and fade out features.
Dishwasher Safe Baffle Filters
- The stainless steel filters are easy to remove and are dishwasher safe.
- A self-contained grease tray within the filters makes them very easy to clean.
LED-Illuminated Soft Touch Buttons
- This easy to use range hood operates with fingertip control of LED-illuminated soft-touch buttons.
- Selected models also come with remote control.
Filter Cleaning Alert
- The clean filter reminder light will illuminate to remind you to clean the filters.
Delayed Shut-Off
- It allows you to delay the shut off on the range hood for up to 25 minutes.
- Enables you to continue to remove steam and cooking odors after cooking is complete.
Remote Control
- It allows you to adjust the fan speed and brightness of lighting without touching the range hood.
Achieve The Invisible
- This high quality integrated range hood seamlessly blends behind cabinetry in a variety of kitchen layouts.
- Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.
Edge to Edge Extraction
- Filters effectively reach edge to edge, which maximizes the amount of extraction area.
Energy Efficiency
- Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors.
- Plus, fewer moving parts mean less erosion and longer lifetime.
Simple Installation
- The simple installation process is compatible with most precut cabinetry.
- The adjustable mounting system can be installed with " to 9/16" cabinetry board.
HPB481912N Archicad Insert RangeHood
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Remote Control
Yes
Bluetooth
No
Ventilation Features
Dimmable lights/number of settings
Yes
Auto-off/Run-on timer
Yes
Filter cleaning alert
Yes
Light type
3000K LED Strip
Remote control
Yes
Simple sensing
Yes
Power Requirements
Supply voltage
120V
Warranty
Parts and Labor
2 Years
Installation and Cleaning
Ducted
Vertical only
Dishwasher safe filters
4
Air outlet size
10"
Product Information
Control type
Electronic
Performance
Filter type
Stainless Steel Baffle
Fan speeds
5
Extraction type
Surface
Dimensions
Width
46 7/16 Inch
Depth
18 7/8 Inch
Height
16 7/8 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Insert Liner
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
822843500987
Product Dimensions
Width
46 7/16"
Height
16 7/8"
Depth
18 7/8"
Fan Ratings
Maximum blower air flow
1100CFM
Capacity
Permanent Air Flow Reduction
Yes
CFM
1,100 CFM
Duct Size
10 Inch
Product Information
Brand
Fisher & Paykel
MPN
HPB4819-12 N
Model
HPB481912N
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Number of Fan Speeds
5
Lights
LED
Filter Type
Baffle
General
Manufacturer
Fisher Paykel
