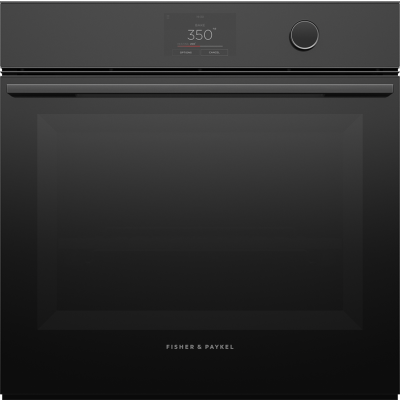

About the Fisher Paykel OB24SMPTDB1
- 24 Inch Convection Smart Electric Wall Oven with 3 cu. ft. Oven Capacity
- Pyrolytic Self-Clean
- Delay Start
- Air Fry
- Rapid Proof
- Slow Cook
- Warm
- Pastry Bake
- Pizza Bake
- Sabbath Mode
- Star-K Certified
- ADA Compliant
Brand:
Oven Style:
Single
Capacity:
3 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Black
Width:
23 7/16"
Height:
23 9/16"
Fuel Type:
Electric
Volts:
240/208 Volts
A highlight of the Fisher & Paykel collection, this Minimal style oven with touchscreen guided cooking helps to ensure every dish is cooked to perfection.
About Fisher & Paykel
Fisher & Paykel is a company that designs and manufactures home appliances and healthcare products. The company was founded in 1934 in New Zealand by Maurice Fisher and Woolf Paykel. The company is known for its innovative and premium products, such as the DishDrawer™ dishwasher, the CoolDrawer™ multi-temperature drawer, and the Optiflow™ nasal high-flow therapy. Fisher & Paykel operates in over 50 countries and has more than 4,000 employees worldwide.
Key Features
Cook with Confidence
- Using the large 5" touchscreen interface, you can cook with a favorite method, hero ingredient, cooking function, or recipe. Your oven will guide you through the steps, or change the temperature and heat type automatically, depending on your selection.
Generous Capacity
- With an exceptional 3 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves. Non-tip, full-extension shelves help to ensure the safe removal of hot dishes.
Exceptional Performance
- Our unique cooking technologies were developed to help deliver perfect results. ActiveVent ensures optimized moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
Safe and Sound
- The CoolTouch door of this built-in oven is safe to touch from the outside. Sturdy, fully extendable shelves slide all the way out, reducing the need for you to reach inside.
Self-Cleaning
- Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth. The enamel-coated side racks don't need to be removed when using this function.
Complementary Design
- Designed to blend seamlessly into the kitchen, this Minimal style oven features subtle textural and tonal contrasts. Available in a sleek black finish to support a considered kitchen design. Pair with a Warming Drawer for the ultimate kitchen solution.
Multi-Function Flexibility
- Each function has been tailored, tested, and perfected to ensure that no matter what you're cooking, you've got the right heat to match. A Wireless Temperature Sensor precisely monitors cooking in real-time, giving you complete control.
OB24SMPTDB1 Datasheet Oven
Specifications
Accessories
Broil grid
1
Broil pan
1
Broil rack
1
Full extension telescopic
1 set
Pyrolytic proof shelf runners
Yes
Step down wire shelf
1
Telescopic sliding shelves
1 set
Wireless temperature sensor
1
Capacity
Shelf positions
6
Total capacity
3 cu. ft.
Usable capacity
2.5 cu. ft.
Cleaning
Acid-resistant graphite enamel
Yes
Pyrolytic proof shelf runners
Yes
Pyrolytic self-clean
Yes
Removable oven door
Yes
Removable oven door inner
Yes
Removable shelf runners
Yes
Controls
Adjustable audio and display
Yes
Audio feedback
Yes
Automatic cooking/minute
Yes
Automatic pre-set
Yes
Celsius/Fahrenheit
Yes
Delay start
Yes
Electronic clock
Yes
Electronic oven control
Yes
Food probe
Yes
Guided cooking by food type
Yes
Halogen lights
Yes
Intuitive touchscreen display
Yes
Multi-language display
UK English, US English, Simplified Chinese, Français, Español
Sabbath mode
Yes
Soft close doors
Yes
Turned stainless steel dials
Yes
Wi-Fi connectivity
Yes
Wireless temperature sensor
Yes
Functions
Aero Bake
Yes
Aero Broil
Yes
Air fry
Yes
Bake
Yes
Broil
Yes
Classic bake
Yes
Dehydrate
Yes
Number of functions
16
Pastry Bake
Yes
Pizza bake
Yes
Rapid proof
Yes
Roast
Yes
Self-clean
Yes
Slow cook
Yes
True Aero
Yes
Vent bake
Yes
Warm
Yes
Performance
ActiveVent™ system
Yes
AeroTech™ technology
Yes
Automatic rapid pre-heat
Yes
Temperature range
95 °F - 540 °F
Safety
ADA compliant
Yes
Balanced oven door
Yes
Catalytic venting system
Yes
Control panel key lock
Yes
CoolTouch door
Yes
Non-tip shelves
Yes
Safety thermostat
Yes
Power Requirements
Supply voltage
208C - 240V
Amperage
16.6 - 19.4 A
Supply frequency
60Hz
Product dimensions
Width
23 7/16"
Depth
22 1/4"
Height
23 9/16"
Warranty
Parts and labor
2 years
Product Information
Brand
Fisher & Paykel
Model
OB24SMPTDB1
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
Steam Oven
No
Door Style
Drop Down
French Door Oven
No
Color
Black
Fingerprint Resistant
No
Stainless Steel Handle
No
Control Type
Digital and Knobs
Viewing Window
Yes
Drawer
None
Clock
Yes
Dimensions
Exterior Width
23 7/16 Inch
Exterior Depth
22 1/4 Inch
Exterior Height
23 9/16 Inch
Shabbos Compliance
Sabbath Mode
Yes
Certification
STAR-K
Smart
WiFi
Yes
Remote Monitoring
Yes
Remote Diagnostics
Yes
Smart Accessory Required
No
Capacity
Capacity
3 Cu. Ft.
Oven Racks
3
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Delay Bake
Yes
Fast Preheat
Yes
Convection
Yes
Convection Type
True European
Proof Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Element Location
Top
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Air Fry
Yes
Sous Vide
No
Technical Details
ADA Compliant
Yes
Undercounter Installable
Yes
Approved for Outdoor Use
No
LP Conversion
No
Voltage
240/208 Volts
GTIN
UPC
822843825172
EAN
0822843825172
