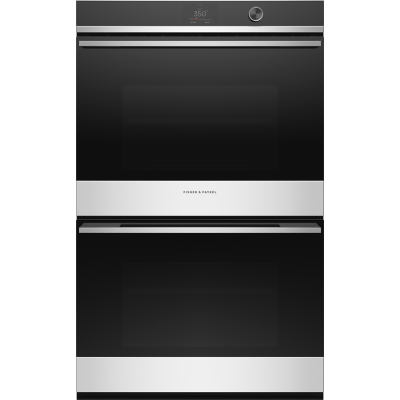

About the Fisher Paykel OB30DDPTDX1
- 30 Inch Built-In Double Electric Wall Oven with 8.2 Cu. Ft. Total Oven Capacity
- True European AeroTech™ Technology
- High Heat Self Clean
- Aero™ Bake
- CoolTouch Door
- 17 Cooking Functions
- Maxi-Broil
- Vent Bake
- Slow Cook
Brand:
Oven Style:
Double
Capacity:
8.2 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
29 15/16"
Height:
48 1/2"
Cutout Width:
30 1/8"
Cutout Height:
48 3/16"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Key Features
8.2 Total Oven Capacity
- Two 4.1 cu. ft. ovens
True European AeroTech™ Technology
- Dynamic true convection gives an even air temperature throughout the entire oven providing you with excellent results every time.
High Heat Self Clean
- Our self-clean technology breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.
Aero™ Bake
- Aero™ Bake generates heat at the top and bottom of the oven, with the fan creating airflow throughout which speeds up cooking so oven temperatures can be lowered by 20 degrees celcius for most recipes.
CoolTouch Door
- The CoolTouch door features triple glazing and a cooling system that ensures it's safe to touch from the outside - protecting both your hands and the surrounding cabinetry.
17 Cooking Functions
- Choose from 17 cooking functions - such as Aero™ Bake, Bake, Broil, Classic Bake, Maxi Broil, Pastry Bake, Pizza Bake, Rapid Proof, Self-Clean Function, Slow Cook, Vent Bake, Warm, and more.
Maxi Broil
- In Maxi Broil, heat is radiated from both broil elements, located at the top of the oven cavity at full power.
Vent Bake
- Vented baking allows the moisture content of the oven to be reduced, without compromising the temperature, creating a gentle air movement without the need to use a fan. Reducing the formation of condensation means it is perfect way to slow cook meat dishe
Other Features
- Slow Cook
- Automatic Pre-Set Temperatures
- Automatic Rapid Pre-Heat
- Precise Electronic Temperature Control
Specifications
Controls
Adjustable audio and display settings
Yes
Automatic cooking/minute timer
Yes
Automatic pre-set temperatures
Yes
Celsius/Fahrenheit temperature
Yes
Electronic clock
Yes
Electronic oven control
Yes
Precise electronic temperature control
Yes
Dial with an illuminated halo
Yes
Food probe
Yes
Guided cooking by food type and recipes
Yes
Intuitive touchscreen display
Yes
Multi-language display
UK English, US English, Simplified Chinese, Français, Español
Sabbath mode with Star K certification
Yes
Wi-Fi connectivity
Yes
Cleaning
Self-cleaning side runners
Yes
Acid resistant graphite enamel
Yes
Removable oven door
Yes
Removable shelf runners
Yes
Capacity
Usable gross capacity (top oven)
3.6 cu. ft.
Usable gross capacity (bottom oven)
3.6 cu. ft.
Total capacity
4.1 cu. ft.
Shelf positions
16
Usable capacity
3.6 cu. ft.
Accessories
Smokeless broil tray
1
Roasting pan
1
Full-extension telescopic shelves
Yes
Food probe
1
Self-cleaning side runners
2 sets
Full-extension sliding shelves
5 sets
Broil rack
1 set
Functions
Number of functions
17
Bake
Yes
Broil
Yes
Classic bake
Yes
Maxi Broil
Yes
Pastry Bake
Yes
Pizza bake
Yes
Rapid proof
Yes
Roast
Yes
Self-clean function
Yes
Slow cook
Yes
Vent bake
Yes
Warm
Yes
Aero Bake
Yes
Aero Broil
Yes
Air fry
Yes
Dehydrate
Yes
True Aero
Yes
Performance
Automatic rapid pre-heat
Yes
Broil power
4400W
AeroTech™ technology
Yes
Broil width
20"
Number of passes on Maxi Broil
12
Number of passes on broil
10
Power Requirements
Amperage
33.2 - 38.3A
Supply voltage
208 - 240V
Product Dimensions
Depth
23 15/16"
Height
48 1/2"
Width
29 15/16"
Safety
Advanced cooling system
Yes
Balanced oven door
Yes
Catalytic venting system
Yes
Control panel key lock
Yes
CoolTouch door
Yes
Non-tip shelves
Yes
ADA compliant
Yes
Full-extension sliding shelves
Yes
Product Information
Brand
Fisher & Paykel
Model
OB30DDPTDX1
MPN
OB30DDPTDX1
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Electric
Style
Double
Microwave
No
Door Style
Drop Down
French Door Oven
No
Color
Stainless Steel
Control Type
Digital and Knobs
Viewing Window
Yes
Drawer
None
Clock
Yes
Speed Oven
No
Steam Oven
No
Fingerprint Resistant
No
Dimensions
Cutout Width
30 1/8 Inch
Cutout Depth
22 5/8 Inch
Cutout Height
48 3/16 Inch
Exterior Width
29 15/16 Inch
Exterior Depth
23 15/16 Inch
Exterior Height
48 1/2 Inch
Depth to Handle
23 7/8 Inch
Smart
WiFi
Yes
Smart Accessory Required
No
Capacity
Capacity
8.2 Cu. Ft.
Upper Capacity
4.1 Cu. Ft.
Lower Capacity
4.1 Cu. Ft.
Oven Racks
4
Upper Racks
2
Lower Racks
2
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Fast Preheat
Yes
Convection
Yes
Convection Type
Standard
Proof Mode
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Pan Included
No
Interior Oven Light
Yes
Removable Door
Yes
Delay Bake
Yes
Air Fry
Yes
Sous Vide
No
Technical Details
Wattage
4,400
Amps
40
Voltage
240/208 Volts
Star-K Certified
Yes
ADA Compliant
Yes
Undercounter Installable
No
Approved for Outdoor Use
No
LP Conversion
No
GTIN
UPC
822843818594
EAN
0822843818594
Shabbos Compliance
Certification
STAR-K
Requires Shabbos Keeper
No
General
Manufacturer
Fisher Paykel
