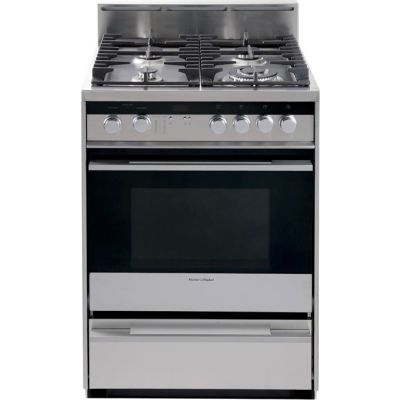

About the Fisher Paykel OR24SDMBGX2
- 1.9 cu. ft. Convection Oven
- 4 Sealed Burners
- Wok Burner
- Flame Failure Protection
- Liquid Propane Compatible
- Storage Drawer
Brand:
Style:
Freestanding
Width:
23 7/8"
Height:
36 7/32"
Depth:
24 5/64"
Capacity:
1.9 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Available at Designer Appliances.
This freestanding range combines the convenience of a gas oven with the control and precision of an integrated four burner gas cooktop. A fresh, clean look reflects the latest design philosophies from Europe, featuring refined control knobs and easy to follow icons on a simple designer control panel.
Key Features
Attractive and Durable Cast Iron Grates
- Exceptionally durable cast iron grates enhance the contemporary design and quality components.
Automatic Ignition
- Twice as fast as conventional gas valves. This means that their usage is now almost invisible to the user, as the time the user needs to hold the knob down to ignite the flame is halved. The gas valves are also equipped with a safety mechanism that locks
Flame Failure Protection
- A safety feature that ensures the gas supply to the burner is cut off if the flame is extinguished. If the flame is blown out, the gas valve cuts off the gas supply to the burner.
Gas Burners
- A range of gas burner sizes and powers for greater convenience and flexibility. Large, small and medium burners will suit any cooking style, from a fast stir-fry to a slow simmer.
Door and Oven Cavity Cooling System
- Freestanding ranges are equipped with a door and cavity cooling system. This is designed to minimize heat transfer and protect kitchen cabinetry by circulating cool air around the oven.
Double Glazed Doors
- The oven door has two panes of glass, combined with reflective coating and an innovative door cooling system to ensure that heat is reflected back in the oven cavity and the external temperature of the door remains safe to touch. The inner panel of the gl
- Available at Designer Appliances.
- www.designerappliances.com
OR24SDMBGX2 Installation Guide
Specifications
Burner Output
Set 3 QTY
1
Burner 1 Output
12000
Burner 2 Output
6000
Burner 3 Output
3500
Set 1 Output
12000
Set 1 QTY
1
Set 2 Output
6000
Set 2 QTY
2
Set 3 Output
3500
Cooking Modes
Bake
Yes
Broil
Yes
Convection Cooking with Ventilation
Yes
Defrost
Yes
Safety
Door Oven Cavity Cooling System
Yes
Double Glazed Doors
Yes
Flame Failure Protection (cooktop and oven)
Yes
Warranty
Labor Warranty
1 Year
Parts Warranty
1 Year
Controls
Clock
3 Button Electronic Clock
Burner Specifications
Triple-Ring Burner (Right Front)
12,000 BTU
Right Semi-Rapid Burner (Right Rear)
6,000 BTU
Auxillary Burner (Left Front)
3,500 BTU
Left Semi-Rapid Burner (Left Rear)
6,000 BTU
Capacity
Usable Oven Capacity
1.9 cu. ft.
Dimensions and Weight
Product Depth
24 5/64"
Product Height
35 7/16" - 36 7/32"
Product Width
23 7/8"
Cleaning
Oven Light
Rear
Removable Door with Soft Hinges
Yes
Removable Inner Door Glass
Yes
Surface
Hard-Wearing Enamel Interior
Cooktop/Hob Features
Automatic Ignition
Yes
Flame Failure Protection
Yes
Gas Burners
Yes
Grates
Yes; Cast Iron
LPG and Natural Gas Compatible
Yes
Triple Ring Burner
Yes
Performance Features
Oven Burner
Yes
Oven Thermostat
Yes
Wok Burner
12,000 - 5,000
Functions
4
Fan Motor
Yes
Broil Burner
Yes
Electronic Ignition
Yes
Appearance
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Type
Gas
Color
Stainless Steel
Clock
Yes
Oven Features
Temperature Probe
Yes
Timer
Yes
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Broiler Element Location
Top
Broiler Pan Included
Yes
Proof Mode
No
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
No
Self-Cleaning
No
Primary Oven Capacity
1.9 Cu. Ft.
Oven Control Type
Knobs
Interior Oven Light
Yes
GTIN
UPC
822843847044
Technical Details
Voltage
120 Volts
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Oven BTUs
21,500
Accessories
Broiling Pans
1
Broiling Racks
1
Drawers
Storage Compartment
Step Down Oven Shelves
2
Wok Stand
Yes
Dimensions
Width
23 7/8 Inch
Depth
24 5/64 Inch
Height
36 7/32 Inch
Cooktop Features
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Burners / Elements
4
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Product Information
Brand
Fisher & Paykel
Model
OR24SDMBGX2
MPN
84704
Capacity
Number of Burners
4
General
Manufacturer
Fisher Paykel
