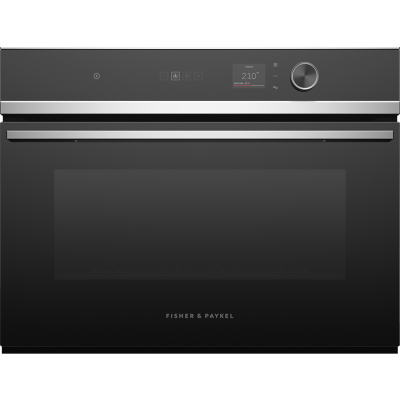

About the Fisher Paykel OS24NDLX1
- 24 Inch Single Combination Steam Smart Electric Wall Oven with 1.9 cu. ft. Oven Capacity
- 18 Functions
- True Convection Oven
- Steam Clean Oven
- Air Fry
- Roast
- Slow Cook
- Sous Vide
- Delay Start
- Sabbath Mode
- Star-K Certified
- ADA Compliant
Brand:
Oven Style:
Single
Capacity:
1.9 Cu. Ft.
Convection:
Yes
Color:
Stainless Steel
Width:
23 7/16"
Height:
18"
Cutout Width:
22 1/16"
Cutout Height:
17 5/16"
Fuel Type:
Electric
Volts:
240/208 Volts
Designed to be the cornerstone of any kitchen solution, our Combination Steam Oven is engineered for the home chef. In a compact size, this oven can be placed almost anywhere.
About Fisher & Paykel
Fisher & Paykel is a company that designs and manufactures home appliances and healthcare products. The company was founded in 1934 in New Zealand by Maurice Fisher and Woolf Paykel. The company is known for its innovative and premium products, such as the DishDrawer™ dishwasher, the CoolDrawer™ multi-temperature drawer, and the Optiflow™ nasal high-flow therapy. Fisher & Paykel operates in over 50 countries and has more than 4,000 employees worldwide.
Key Features
Combination Cooking
- Give every ingredient the respect it deserves with combination steam cooking.
- Using a fusion of dry convection heat with variable amounts of steam, you can easily retain the delicate texture of ingredients like salmon and snapper, the vitamins and minerals of greens, or the depth of flavor of a perfect cut of meat.
Mastery Of Temperature
- Elevate your meals with the precise temperature and humidity control of steam cooking.
- Steam cooking has a gentler heat transfer into the food, so you get nutritious and delicious results that are moist and tender on the inside, and crisp and flaky on the outside, all with minimal effort.
Preserve Flavor and Nutrients
- Cooking with steam creates dishes that are full of flavor, while preserving all the vitamins, minerals, and textures of delicate ingredients, like fish and seafood.
- With five steam-only cooking functions, including Sous vide, Steam, and Steam Proof, you can use steam to create healthier dishes that get the best out of each component on the plate.
Multi-Function Flexibility
- A truly multiple-function oven where both steam-only and convection-only cooking mediums can stand on their own merits.
- You have the freedom to choose - whether it's dry heat or moist heat, or a combination of the two - each delivering different cooking results. A Wireless Temperature Sensor precisely monitors cooking in real-time, giving you complete control.
Design Freedom
- This Contemporary style oven has a stylish black finish with stainless steel contrasts, designed to help you achieve a kitchen aesthetic that suits your design style.
- Pair with a Vacuum Seal Drawer for the ultimate kitchen solution.
Sized To Suit
- This compact 24" Steam Oven can be placed almost anywhere. All Companion products can be installed at a convenient height to suit your kitchen design and preference.
OS24NDLX1 Data Sheet Combination Steam Oven
Specifications
Accessories
Broil pan
1
Broil rack
1
Chromed shelf runners
Yes
Descale solution
2 sachets, Part 580925
Large solid dish
1
Perforated large dish
1
Step down wire shelf
1
Telescopic sliding runners
1 set
Wire shelf
1
Wired temperature sensor
1
Capacity
Shelf positions
4
Total capacity
1.9 cu. ft.
Usable capacity
1.6L
Cleaning
Acid-resistant graphite enamel
Yes
Descale cycle
Yes
Drying cycle
Yes
Removable oven door
Yes
Removable oven door inner
Yes
Removable shelf runners
Yes
Removable water tank
Yes
Steam clean (oven)
Yes
Controls
Adjustable audio and display
Yes
Audio feedback
Yes
Automatic cooking/minute
Yes
Automatic pre-set
Yes
Delay start
Yes
Electronic clock
Yes
Electronic oven control
Yes
Food probe
Yes
Guided cooking by food types
Yes
Halogen lights
Yes
Multi-language display
UK English, US English, Simplified Chinese, Français, Español
Sabbath mode
Yes
Soft close doors
Yes
True convection oven
Yes
Turned stainless steel dials
Yes
Wi-Fi connectivity
Yes
Wireless temperature sensor
Yes
Functions
Aero Bake
Yes
Aero Broil
Yes
Air fry
Yes
Bake
Yes
Maxi Broil
Yes
Number of functions
18
Pizza bake
Yes
Roast
Yes
Slow cook
Yes
Sous vide
Yes
Steam
Yes
Steam clean (oven)
Yes
Steam defrost
Yes
Steam proof
Yes
True Aero
Yes
True Aero + High steam
Yes
True Aero + Low steam
Yes
True Aero + Medium steam
Yes
Vent bake
Yes
Performance
ActiveVent™ system
Yes
AeroTech™ technology
Yes
Automatic rapid pre-heat
Yes
SteamTechnology
Yes
Temperature range
95 °F - 445 °F
Whisper quiet cooking
Yes
Safety
ADA compliant
Yes
Balanced oven door
Yes
Control panel key lock
Yes
CoolTouch door
Yes
Non-tip shelves
Yes
Safety thermostat
Yes
Power Requirements
Amperage
16.6-19.4A
Supply frequency
60Hz
Supply voltage
208-240V
Product Dimensions
Width
23 7/16"
Depth
22 1/4"
Height
18"
Warranty
Parts and labor
2 years
Product Information
Brand
Fisher & Paykel
Model
OS24NDLX1
MPN
82640
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
Steam Oven
Yes
Door Style
Drop Down
French Door Oven
No
Color
Stainless Steel
Fingerprint Resistant
No
Control Type
Digital and Knobs
Viewing Window
Yes
Drawer
None
Clock
Yes
Dimensions
Cutout Width
22 1/16 Inch
Cutout Depth
22 11/16 Inch
Cutout Height
17 5/16 Inch
Exterior Width
23 7/16 Inch
Exterior Depth
22 1/4 Inch
Exterior Height
18 Inch
Shabbos Compliance
Sabbath Mode
Yes
Certification
STAR-K
Smart
WiFi
Yes
Remote Monitoring
Yes
Remote Diagnostics
Yes
Smart Accessory Required
No
Capacity
Capacity
1.9 Cu. Ft.
Oven Racks
2
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Delay Bake
Yes
Fast Preheat
Yes
Convection
Yes
Convection Type
True European
Proof Mode
Yes
Steam Clean
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Air Fry
Yes
Sous Vide
Yes
Steam Assist
Yes
Technical Details
ADA Compliant
Yes
Undercounter Installable
Yes
Approved for Outdoor Use
No
LP Conversion
No
Voltage
240/208 Volts
GTIN
UPC
822843826407
EAN
0822843826407
