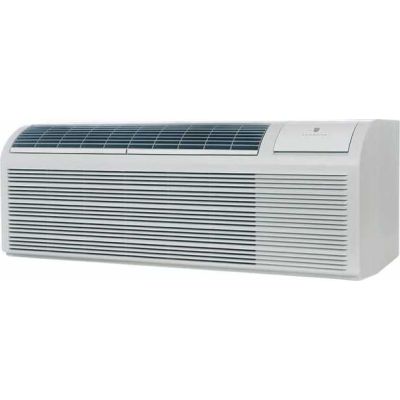

About the Friedrich PDE07K3SGR3
- 7,400 BTU Packaged Terminal Air Conditioner with Electric Heat
- Diamonblue™ Advanced Corrosion Protection
- 13.0 EER
- 1.69 Pts/ Hr Dehumidification
- Dual Motors
- Antimicrobial Treated Filter
- Room Freeze Protection and R32 Refrigerant
Brand:
Installation:
Wall
BTU:
7,400 BTU
Remote Included?:
No
Heat:
Electric Heat
Height:
16"
Width:
42"
Depth:
21 1/2"
Volts:
230/208 Volts
Amps:
2.6 Amps
Plug Type:
6-20P
Energy Star Rated:
No
EER:
13
This PDE07K3SGR3 is a 7,400 BTU cooling PTAC with electric resistive heat and an EER of 13.3. Not only is this unit better for the environment with its R32 refrigerant, it will save you money and run efficiently for years to come! It uses 208 / 230V electricity and features a 2 speed fan for better circulation. The Constant Fan Mode on the SG Series produces an uninterrupted stream of white noise. This helps to block outside noise as well as minimize the some of the noise related to compressor start-up.
About Fredrich
Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification.
Key Features
Conditioned Fresh Air
- Friedrich's FreshAire ® PTAC system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optim
Precision Inverter ® Technology
- Precision Inverter ® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent. Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort
Widest Cooling & Heating Range in the Industry
- Variable speed technology gives you the flexibility of a full line of PTACs with only two models, and offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.
FreshAire ® IAQ Ready
- FreshAire ® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product includes our patented FreshAire ® make-up system and is compatible with FreshAi
The Smoothest PTAC Sound Available
- The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room. This not only provides the best energy consumption curve but it also adds to guest comfort by eliminating the harsh start-u
Comfort & Convenience
- Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mil
Maintenance and Installation
- Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
Technical Details
Voltage
230/208 Volts
Plug Type
6-20P
ADA Compliant
No
Energy Star Rated
No
Features
Remote Control Included
No
Control Type
Digital
Energy Efficiency Rating
13
Heat
Electric Heat
Maximum Cooling Watts
560 Watts
Chassis Type
Thru the Wall
Type
Wall
PTAC
Yes
Window Type
Standard
Maximum Cooling Amps
2.6 Amps
Refrigerant Type
R-32
Indoor CFM, Low
282 CFM
Indoor CFM, High
311 CFM
Smart
Remote Monitoring
No
WiFi
No
Capacity
Cooling Capacity (BTU)
7,400 BTU
Dimensions
Height
16 Inch
Depth
21 1/2 Inch
Width
42 Inch
Electrical Data
Compressor LRA
13.0
Power Factor
0.97
Current Amps
2.4
Voltage
230/208
Compressor RLA
2.16
Outdoor Fan Motor
0.080
Volt Range
253-187
Performance Data
Cooling Capacity
7400
Cooling Watts
560
EER
13.0
Heater Size kW
3.6
Moisture Removal
1.69
Sensible Heat Ratio
86%
Product Information
Model
PDE07K3SGR3
Brand
Friedrich
Dimensions
R32 Charge
17.64
Shipping Weight
132.3
Net Weight
110.25
Packaged Dimensions
17 7/8" x 45" x 25 1/4" (all models)
Air Flow Data
Vent CFM
75
Indoor CFM Low
282.48
Indoor CFM High
311.9
General
Manufacturer
Friedrich
