About the Friedrich PDE07R3SGR3

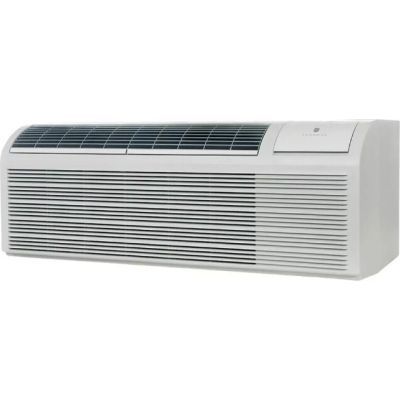

- Friedrich PDE07R3SGR3 7,500 BTU Packaged Terminal Air Conditioner with Electric Heat
- DiamonBlue Advanced Corrosion Protection
- 13.3 EER
- 1.69 Pts/ Hr Dehumidification
- Dual Motors
- Room Freeze Protection and 265 Volts
Brand:
Installation:
Window
BTU:
7,500 BTU
Heat:
Electric Heat
Height:
16"
Width:
42"
Depth:
21 1/2"
Volts:
265 Volts
Amps:
2.1 Amps
Plug Type:
7-20P
Energy Star Rated:
No
EER:
13.3
The Friedrich PDE07K3SE is a high-efficiency 7,500 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.
About Fredrich
Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification
Key Features
QuietMaster® Technology
- Solid-steel inner wall
- Advanced airflow design
- High-density insulation and foam for sound absorption
- Aesthetically engineered to block indoor noise
- Counterweights for vibration
- dampening
8-Way Airflow Control
- With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
- A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
- You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
- With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
- Auto restart saves settings if power is interrupted
Remote Control
- Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
- Money Saver®
- R-32 Refrigerant
- Universal fit decorative trim ring
Specifications
Technical Details
Voltage
265 Volts
Plug Type
7-20P
Energy Star Rated
No
Features
Heat
Electric Heat
Maximum Cooling Watts
560 Watts
Maximum Cooling Amps
2.1 Amps
Type
Window
Energy Efficiency Rating
13.3
Control Type
Digital
Refrigerant Type
R-32
Vent CFM
75 CFM
Indoor CFM, Low
282 CFM
Indoor CFM, High
311 CFM
PTAC
Yes
Smart
Remote Monitoring
No
WiFi
No
Capacity
Cooling Capacity (BTU)
7,500 BTU
Dimensions
Height
16 Inch
Depth
21 1/2 Inch
Width
42 Inch
Product Information
Model
PDE07R3SGR3
Brand
Friedrich
Electrical Data
Compressor LRA
12.0
Power Factor
0.97
Current Amps
2.1
Volt Range
292-239
Voltage
265
Compressor RLA
2.2
Outdoor Fan Motor HP
0.080
Vent CFM
75
Indoor CFM Low
282.48
Indoor CFM High
311.9
Overview
Sensible Heat Ratio
86%
Moisture Removal
1.69
Heater Size
3.6
EER
13.3
Cooling Watts
560
Cooling BTU
7500
Dimensions
Dimensions with Packaging (inches)
17 7/8" x 45" x 25 1/4"
R-32
Yes
Shipping Weight
132.3
Net Weight
10.25
Cut Out Dimensions (H x W x D)
16 1/4" x 42 1/4
Dimensions with Front (H x W x D)
16" x 42" x 21 1/2"
Sleeve Dimensions (H x W x D)
16" x 42" x 13 3/4"
General
Manufacturer
Friedrich
