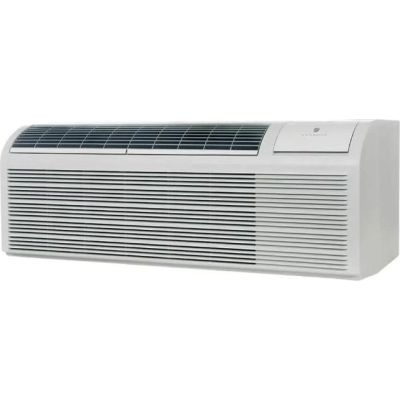

About the Friedrich PDE09R3SGR3
- 10,000 BTU Packaged Terminal Air Conditioner with Electric Heat
- DiamonBlue Advanced Corrosion Protection
- 12.5 EER
- 2.11 Pts/ Hr Dehumidification
- Dual Motors
- Room Freeze Protection and 265 Voltage
Brand:
Installation:
Wall
BTU:
10,000 BTU
Max CFM:
75 CFM
Heat:
Electric Heat
Height:
16"
Width:
42"
Depth:
21 1/2"
Volts:
265 Volts
Amps:
3.2 Amps
Plug Type:
7-20P
Energy Star Rated:
No
EER:
12.5
The Friedrich unit is a high-efficiency 10,000 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.
About Fredrich
Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification
Key Features
QuietMaster® Technology
- Solid-steel inner wall
- Advanced airflow design
- High-density insulation and foam for sound absorption
- Aesthetically engineered to block indoor noise
- Counterweights for vibration
- dampening
8-Way Airflow Control
- With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
- A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
- You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
- With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
- Auto restart saves settings if power is interrupted
Remote Control
- Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
- Money Saver®
- R-32 Refrigerant
- Universal fit decorative trim ring
Specifications
Technical Details
Voltage
265 Volts
ADA Compliant
No
Energy Star Rated
No
Plug Type
7-20P
Features
Heat
Electric Heat
Maximum Cooling Watts
800 Watts
Maximum Cooling Amps
3.2 Amps
Chassis Type
Thru the Wall
Type
Wall
Energy Efficiency Rating
12.5
Control Type
Digital
Refrigerant Type
R-32
Vent CFM
75 CFM
Indoor CFM, Low
282 CFM
Indoor CFM, High
330 CFM
Window Type
Standard
PTAC
Yes
Smart
Remote Monitoring
No
WiFi
No
Capacity
CFM Room Circulation
75 CFM
Cooling Capacity (BTU)
10,000 BTU
Dimensions
Height
16 Inch
Depth
21 1/2 Inch
Width
42 Inch
Product Information
Model
PDE09R3SGR3
Brand
Friedrich
Electrical Data
Compressor LRA
13.5
Power Factor
0.97
Current Amps
3.3
Volt Range
292-239
Voltage
265
Compressor RLA
3.0
Outdoor Fan Motor HP
0.080
Vent CFM
75
Indoor CFM Low
282
Indoor CFM High
330
Overview
Sensible Heat Ratio
85%
Moisture Removal
2.11
Heater Size
3.6
EER
12.1
Cooling Watts
775
Cooling BTU
10000
Dimensions
Dimensions with Packaging (inches)
17 7/8" x 45" x 25 1/4
R-410A Charge (oz.)
24
Shipping Weight
132.3
Net Weight
110.3
Cut Out Dimensions (H x W x D)
6 1/4" x 42 1/4"
Dimensions with Front (H x W x D)
16" x 42" x 21 1/2"
Sleeve Dimensions (H x W x D)
16" x 42" x 13 3/4"
General
Manufacturer
Friedrich
