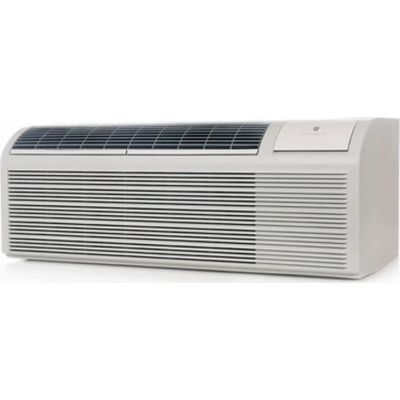

About the Friedrich PDE12R3SGR3
- 12,300 BTU Packaged Terminal Air Conditioner with Electric Heat
- DiamonBlue Advanced Corrosion Protection
- 11.6 EER
- 2.74 pts/ Hr Dehumidification
- Dual Motors
- Room Freeze Protection and 265 Voltage
Brand:
Installation:
Window
BTU:
12,300 BTU
Heat:
No
Height:
16"
Width:
42"
Depth:
21 1/4"
Volts:
265 Volts
Amps:
4 Amps
Plug Type:
7-20P
Energy Star Rated:
No
EER:
11.6
The Friedrich unit is a high-efficiency 12,300 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.
About Fredrich
Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification
Key Features
QuietMaster® Technology
- Solid-steel inner wall
- Advanced airflow design
- High-density insulation and foam for sound absorption
- Aesthetically engineered to block indoor noise
- Counterweights for vibration
- dampening
8-Way Airflow Control
- With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
- A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
- You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
- With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
- Auto restart saves settings if power is interrupted
Remote Control
- Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
- Money Saver®
- R-32 Refrigerant
- Universal fit decorative trim ring
Specifications
Technical Details
Voltage
265 Volts
Plug Type
7-20P
Energy Star Rated
No
Features
Maximum Cooling Watts
1,060 Watts
Maximum Cooling Amps
4 Amps
Type
Window
Heat
No
Energy Efficiency Rating
11.6
Refrigerant Type
R-32
Indoor CFM, Low
306 CFM
Indoor CFM, High
341 CFM
Window Type
Standard
PTAC
Yes
Control Type
Digital
Vent CFM
75 CFM
Smart
Remote Monitoring
No
WiFi
No
Capacity
Cooling Capacity (BTU)
12,300 BTU
Dimensions
Height
16 Inch
Depth
21 1/4 Inch
Width
42 Inch
Product Information
Model
PDE12R3SGR3
Brand
Friedrich
Dimensions
Dimensions with Packaging (inches)
17 7/8" x 45" x 25 1/4"
R-410A Charge (oz.)
21.16
Shipping Weight
136.71
Net Weight
114.66
Cut Out Dimensions (H x W x D)
16 1/4" x 42 1/4
Dimensions with Front (H x W x D)
16" x 42" x 21 1/2"
Sleeve Dimensions (H x W x D)
16" x 42" x 13 3/4"
Electrical Data
Current Amps
4.0
Volt Range
292-239
Voltage
265
Power Factor
0.97
Compressor LRA
21.0
Vent CFM
75
Indoor CFM Low
306.02
Indoor CFM High
341.33
Outdoor Fan Motor HP
0.080
Compressor RLA
3.3
Overview
Sensible Heat Ratio
75%
Moisture Removal
2.74
Heater Size
3.6
EER
11.6
Cooling Watts
1060
Cooling BTU
12,300
General
Manufacturer
Friedrich
