About the Friedrich PVH09K3FC
- Friedrich PVH09K3FC 9,800 BTU Packaged Terminal Air Conditioner with 8,500 BTU Reverse Heating Capacity
- MUA
- DiamonBlue Advanced Corrosion Protection
- 12.52 EER
- 1.4 Pts/ Hr Dehumidification
- Dual Motors and 230/208 Voltage
Brand:
Installation:
Window
BTU:
9,800 BTU
Heat:
Heat Pump
Height:
16"
Width:
42"
Depth:
21"
Volts:
230/208 Volts
Amps:
3.56 Amps
Plug Type:
6-20P
Energy Star Rated:
No
EER:
12.52

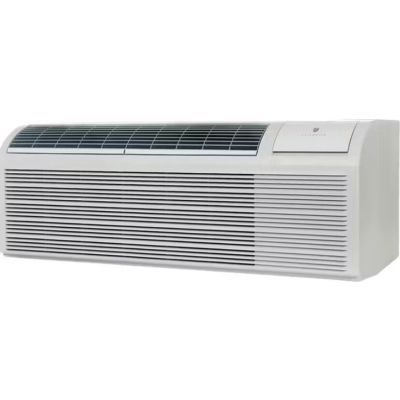

The Friedrich unit is a high-efficiency 9,800 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.
About Fredrich
Friedrich is recognized as the top brand of specialty air treatment products for the worldwide market, offering differentiated solutions for room air conditioning, dehumidification, and air purification
Key Features
QuietMaster® Technology
- Solid-steel inner wall
- Advanced airflow design
- High-density insulation and foam for sound absorption
- Aesthetically engineered to block indoor noise
- Counterweights for vibration
- dampening
8-Way Airflow Control
- With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
- A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
- You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
- With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
- Auto restart saves settings if power is interrupted
Remote Control
- Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
- Money Saver®
- R-32 Refrigerant
- Universal fit decorative trim ring
Specifications
Technical Details
Plug Type
6-20P
Voltage
230/208 Volts
ADA Compliant
No
Energy Star Rated
No
Features
Heat
Heat Pump
Maximum Heating Watts
710 Watts
Maximum Heating Amps
3.09 Amps
Maximum Cooling Watts
815 Watts
Maximum Cooling Amps
3.56 Amps
Type
Window
Energy Efficiency Rating
12.52
Control Type
Digital
Refrigerant Type
R-32
Indoor CFM, Low
535 CFM
Indoor CFM, High
700 CFM
Window Type
Standard
PTAC
Yes
Smart
Remote Monitoring
No
WiFi
No
Capacity
Heating Capacity (BTU)
8,500 BTU
Cooling Capacity (BTU)
9,800 BTU
Dimensions
Height
16 Inch
Depth
21 Inch
Width
42 Inch
Product Information
Model
PVH09K3FC
Brand
Friedrich
Electrical Data
Voltage (1 PHASE, 60 Hz)
230/208
Volt Range
253-187
Current
3.56
Outdoor Fan Motor
0.06
Compressor RLA
3.2
Power Factor
0.80
Reverse Heat
3.09
Overview
Sensible Heat Ratio
77%
Moisture Removal
1.4
COP
3.51
Heating Watts
710
Reverse Heating Capacity Min./Max
5606-11475
Reverse Heating Capacity
8500
Heater Size
3.6
Energy Efficiency Ratio EER
12.52
Cooling Watts
815
Cooling Capacity Min/Max
4400-12000
Cooling Capacity
9,800
Dimensions
R-32 Charge
24.3 oz
Shipping Weight
132
Net Weight
109
Airflow Data
General
Manufacturer
Friedrich
