About the Frigidaire FCWS3027AS
- 30 Inch Single Electric Wall Oven with 5.3 Cu.Ft. Capacity
- Fan Convection
- Self Clean
- Touch Screen Controls
- Keep Warm Setting
- Delay Start
- Timed Cook
- Hidden Bake Element
- Control Lock
- Sabbath Mode
Brand:
Oven Style:
Single
Capacity:
5.3 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
29 7/8"
Height:
28"
Cutout Width:
28 1/2"
Cutout Height:
26 3/4"
Fuel Type:
Electric
Volts:
240 Volts
Amps:
20
Achieve amazing cooking results with Frigidaire's 30 inch electric single wall oven. Get faster, more even multi-rack baking with a powerful convection fan that evenly circulates hot air throughout the oven. Cook more at once with the Extra Large 5.3 cubic feet of oven capacity. When it's cleanup time, simply select the self-clean or steam-clean option and have the oven do all the hard work for you. It's never been easier!
About Frigidaire
When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style, an appliance that has been designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances and they take pride in offering superior products and service to their customers. Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart.
Key Features
Large Oven Capacity
- Cook more at once with a extra large, 5.3 cu. ft. capacity oven.
Fan Convection
- Get faster, more even multi-rack baking results with Fan Convection.
Self Clean
- Your oven cleans itself - so you don't have to with Self Clean. Self clean options available in convenient 2, 3 and 4-hour cycles.
Touch Screen Controls
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
Keep Warm Setting
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
Convenient Cook Time Setting
- Allows you to program the amount of time you want your oven to cook and then turn off.
Customizable Broil Temperatures
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Other Features
- Control Lock
- Delay Start
- Hidden Bake Element
- Star-K Certified
- Sabbath Mode
- ADA Compliant
FCWS3027AS Installation Guide
Key Features
Achieve better baking results with Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
Your oven cleans itself - so you don't have to with Self Clean
Self clean options available in convenient 2, 3 and 4-hour cycles.
Peace of Mind with our Frigidaire Fit Promise
We promise that your new 30" Frigidaire single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.

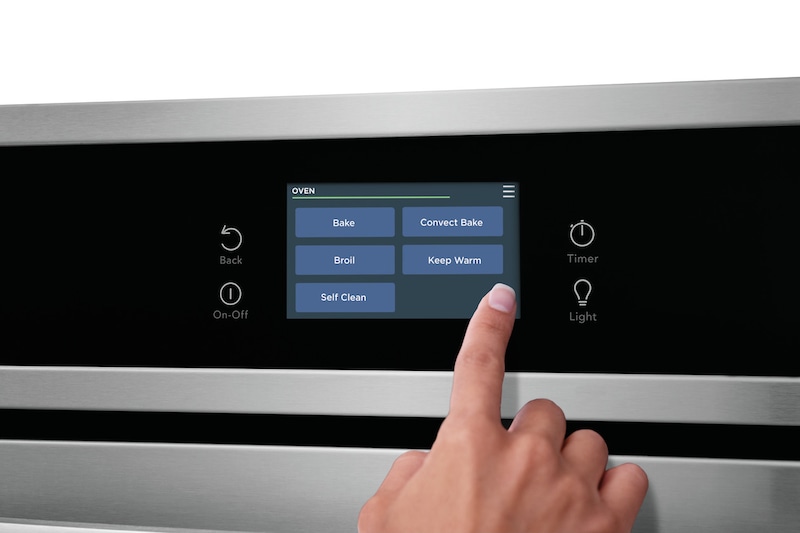

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

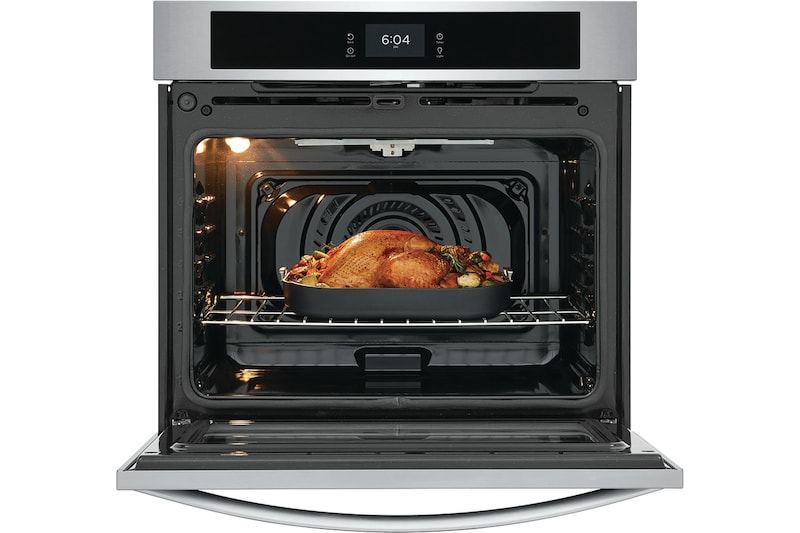

Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu. ft. capacity oven.
Get that perfect finish with customizable Broil Temperatures
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

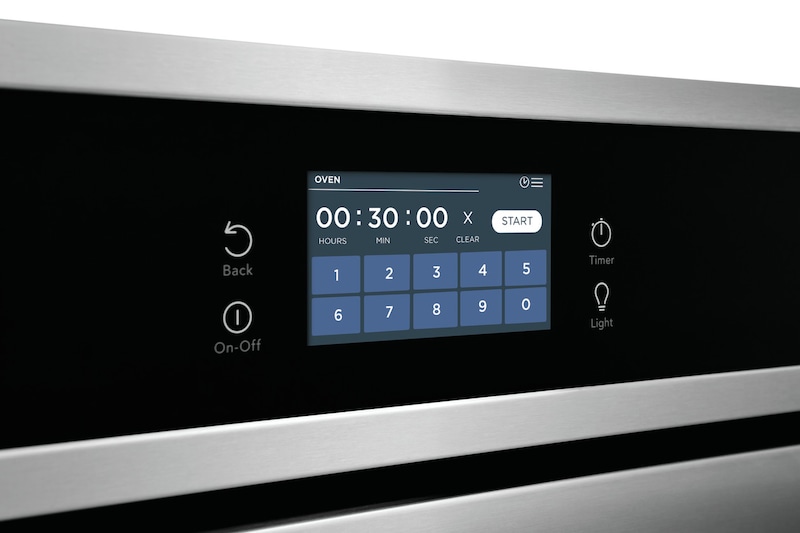

Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
Specifications
Overview
Total Capacity
5.3 cu. ft.
Keep Warm
Yes
Quick Preheat
No
Self-Clean/Clean Options
Yes (2, 3, 4 Hours)
Kitchen Timer
Yes
Display Type
Capacitive Touch
Broil
Yes
Clock
Yes
Cook Time
Yes
Convection Bake
Yes
Self Clean
Yes
Control Lock
Yes
Oven Interior Color
Midnight Black
Oven Light Quantity
1
Oven Light Type
Halogen
Rack Position Type
Embossed
Number of Rack Positions
6
Rack Type 1
Flat
Rack Type 1 Quantity
2
Bake Element Type
Hidden
Bake Element Pass
4
Bake Element
2,500 Watts
Broil Element
4,000 Watts
Broil Element Pass
6
Broil System
Yes
Convection
Yes
Convection Type
Fan
Electrical Specifications
Voltage Rating
240 V
Amps @ 240 Volts
20 Amps
Connected Load @ 240V
3.7 kW
Minimum Circuit Required
20 Amps
Product Information
Brand
Frigidaire
Model
FCWS3027AS
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Appearance
Fuel Type
Electric
Style
Single
Steam Oven
No
Door Style
Drop Down
Color
Stainless Steel
Stainless Steel Handle
Yes
Control Type
Touch Sensor
Viewing Window
Yes
Drawer
None
Clock
Yes
Fingerprint Resistant
No
Dimensions
Cutout Width
28 1/2 Inch
Cutout Height
26 3/4 Inch
Exterior Width
29 7/8 Inch
Exterior Depth
25 3/16 Inch
Exterior Height
28 Inch
Depth to Handle
27 6/10 Inch
Cutout Depth
23 1/2 Inch
Smart
WiFi
No
Bluetooth
No
Capacity
Capacity
5.3 Cu. Ft.
Oven Racks
2
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Delay Bake
Yes
Convection
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Glide Rack(s)
No
Temperature Probe
No
Broiler
Yes
Broiler Element Location
Top
Interior Oven Light
Yes
Removable Door
Yes
Air Fry
No
Fast Preheat
Yes
Convection Type
Standard
Proof Mode
No
No Preheat
No
Technical Details
Star-K Certified
Yes
Undercounter Installable
Yes
Approved for Outdoor Use
No
Wattage
2,500 Watts
Voltage
240 Volts
ADA Compliant
Yes
Amps
20
Dimensions
Width
29 7/8"
Depth
25 3/16"
Depth With Door 90° Open
48 3/16"
Depth With Handle
27 6/10"
Height
28"
Oven Interior Width
25 2/10"
Oven Interior Depth
19 7/8"
Oven Interior Height
18 1/8"
Minimum Cutout Width
28 1/2"
Maximum Cutout Width
29"
Minimum Cutout Height
26 3/4"
Maximum Cutout Height
28"
Cutout Depth
23 1/2"
Certifications and Approvals
ADA Compliant
Yes
Safety Certifications and Approvals
CSA Listed
Yes
UL Listed
Yes
RoHS
Yes
Shabbos Compliance
Certification
STAR-K
GTIN
UPC
012505514982
General
Manufacturer
Frigidaire
