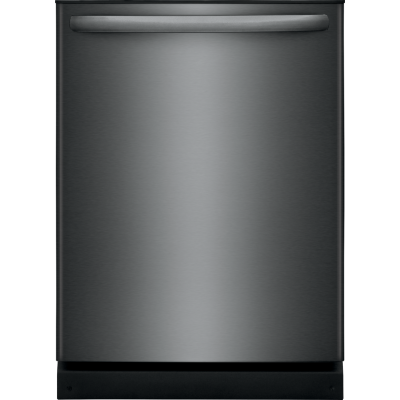

About the Frigidaire FDPH4316AD
- 24 Inch Fully Integrated Dishwasher with 14 Place Settings
- 4 Wash Cycles
- 52 dBA
- PVC Coated Racks
- MaxDry™
- DishSense® Sensor
- Energy Star® Certified: Black Stainless Steel
Brand:
Width:
24"
Height:
33 1/2"
Color:
Black Stainless Steel
Sound Level:
52 dB
WiFi:
No
Accepts Panels:
No
Control Style:
Fully Integrated
Stainless Steel Interior:
No
Water Softener:
No
Type:
Built In
ADA Compliant:
No
The Frigidaire 24" built-in dishwasher offers triple the cleaning power giving your dishes a more effective clean with three spray arms that achieve better water coverage. Plus, enjoy an enhanced dry with MaxDry™, which delivers better results, reducing the need for towel drying. The sleek bar handle upgrades the look of your kitchen, and the stay-put door allows you to open the door from any angle. This quiet dishwasher (52 dBA) also includes DishSense® Sensor Technology, a sanitize option, and is Energy Star® Certified.
About Frigidaire
When you select a Frigidaire home appliance, you have chosen a product of exceptional performance, convenience, and style as well as an appliance designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances and they take pride in offering superior products and services to their customers. Through meaningful innovations, Frigidaire has humanized their technology to create uncluttered appliance designs, intuitive controls, and features that are as useful as they are smart.
Key Features
14 Place Settings
- Cleans 14 place settings in one cycle.
4 Wash Cycles
- Features easy-to-use cleaning wash cycle including Energy Saver, Heavy, Normal, and Quick.
52 dBA
- Enjoy a quiet performance of 52 dBA with a noise insulation system that reduces noise while the dishwasher is in use.
MaxDry™ Option
- Get an enhanced dry with the MaxDry™ option, which raises the temperature and delivers better results reducing the need for towel drying.
DishSense® Sensor Technology
- Get better cleaning results with sensor technology that adjusts cleaning performance based on the soil level of your dishes.
60-Minute Wash
- Quickly clean your dishes in our 60-minute wash cycle.
Sanitize Option
- Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
Delay Start
- Set your dishwasher to run on your schedule with the delay start option.
Three Spray Arms
- Give your dishes a more effective clean with three spray arms, which achieve better water coverage during the cleaning cycle.
Stay-Put Door
- Reduce door slamming and dishes clinking with a stay-put door that allows you to open the door at any angle to load and unload dishes.
Sleek Bar Handle
- Sleek bar handle design upgrades the look of your kitchen.
Additional Features
- PVC Coated Racks
- Plastic Tub
- Energy Saver
- ENERGY STAR® Certified
FDPH4316AD Complete Owners Guide
Specifications
GTIN
EAN
0012505116186
UPC
012505116186
Appearance
Accepts Panels
No
Color
Black Stainless Steel
Type
Built In
Technical Details
ADA Compliant
No
Amps
10
Approved for Outdoor Use
No
CEE Rating
Tier I
Energy Star Rated
Yes
Voltage
120 Volts
Product Information
Brand
Frigidaire
Model
FDPH4316AD
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Capacity
Capacity
14 Place Settings
Shabbos Compliance
Certification
None
Sabbath Mode
No
Features
Control Style
Fully Integrated
Control Type
Touchpad
Cup Shelves
Yes
Cutlery Tray
Yes
Electronic Display
No
Fingerprint Resistant
No
Fold-Down Tines
Yes
Interior Light
No
Leveling Legs
Yes
Number of Spray Arms
3
Rack Material
PVC
Recessed Handles
No
Rinse Aid Dispenser
Yes
Stainless Steel Interior
No
Tall Tub
Yes
Water Filtration
Yes
Water Heating
Yes
Dimensions
Cutout Depth
24 Inch
Cutout Height
34 1/4 Inch
Cutout Width
24 Inch
Depth
25 Inch
Height
33 1/2 Inch
Width
24 Inch
Wash Features
Cycles
4
Delay Start
Yes
Dry Type
Heated
Hard Food Disposer
Yes
Heavy Duty Cycle
Yes
Heavy Duty Wash
Yes
High Temperature Wash
Yes
NSF Certified Rinse
Yes
Options
3
Quick Wash Setting
Yes
Sanitize Cycle
Yes
Sensor Clean
Yes
Sound Level
52 dB
Steam Wash
No
Warranty Info
Labor
1 Year
Parts
1 Year
Dishwasher Options
Air Dry
Yes
Dry - Heat
Yes
Dry - Max
Yes
Drying System
Static Vent
Heated Dry
Yes
High Temperature
Yes
Start/Cancel
Yes
Washing Temperature - High
Yes
Washing Temperature - Sanitize
Yes
Dishwasher Cycles
Energy Saver
Yes
Heavy
Yes
Normal
Yes
Number of Cycles
4
Quick
Yes
Dimensions
Control Location
Top
Depth
25"
Depth With Door Open
49 1/4"
Hard Food Disposer or Filtration
Yes
Maximum Height
35"
Minimum Height
33 1/2"
Motor Speeds
Single-Speed
Rinse Aid Dispenser
Yes
Smart Soil Sensor
Yes
Width
24"
Lower Rack
Filter Material
Plastic
Lower Spray Arm
Bi-Beam
Maximum Height Clearance
13"
Middle Spray Arm
Bi-Beam
Minimum Height Clearance
11"
Number of Silverware Basket
1
Number of Silverware Basket Lids
3
Rack Coating
PVC
Rack Type
Standard
Tub Color
Midnight Ink
Tub Design
Tall Tub
Tub Material
Plastic
Upper Spray Arm
Spray Arm
Warranty
Rinse Aid Indicator
Yes
Sound Level
52 dBA
Warranty - Labor
1 Year
Warranty - Parts
1 Year
Upper Rack
Automatic Temperature Control
Yes
Cup Shelf
Yes
Minimum Height Clearance
8"
Rack Coating
PVC
Rack Spacer
Yes
Rack Type
Standard
Wash Levels
5
Wash System
Direct Feed
Water Pressure
120 psi
Water Usage
3.2 Gallons
Overview
Place Setting Capacity
14
Washing Temperature - High
Yes
Washing Temperature - Sanitize
Yes
Certifications and Approvals
Annual Energy
240 kWh
CEE Tier Tier
1
cUL Listed
Yes
Door and Handle Design
Handle
Door Latch
Pull
Door Type
StayPut
ENERGY STAR Certified
Yes
Meets ASSE 1006 Requirements
Yes
NSF Certified
Yes
UL Listed
Yes
Electrical Specifications
Amps @ 120 Volts
10 Amps
Connected Load @ 120V
1.2 kW
Control Lock
Yes
Delay Start Hours
2-4-6 Hours
Digital Display
No
Voltage Rating
120 V
Specifications:
Start/Cancel
Yes
Installation
Connection Location
Right Bottom
Detergent Dispenser
Yes
Filter Trap
Removable
Filtered Water
100 %
Number of Leveling Legs
4
Water Inlet Location
Left Bottom Front
Specifications:
Water Softener
No
Smart
WiFi
No
General
Manufacturer
Frigidaire
