About the Frigidaire FFGC3026SB
- 4 Sealed Burners with Low Simmer Burner
- Cast Iron Grates
- Ready-Select Controls
- Electronic Pilotless Ignition
- Liquid Propane Conversion
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
4 1/4"
Depth:
21 3/4"
Cutout Width:
28 1/4"
Cutout Depth:
19 3/8"
Volts:
120 Volts
Amps:
15
Simple and sleek, this 30-inch gas cooktop by Frigidaire features four (4) sealed burners, which makes for easy cleaning in the seamless drop-well surface. On this surface are strong cast iron grates with a black matte finish. Frigidaire's Ready-Select controls make selecting flame settings quick and easy. There's a range of BTU power, from 15,000 for high-octane cooking to 5,000 for low simmering of delicate foods and sauces. Available for you here at AJMadsion.com
Key Features
- Signature Features
Ready-Select Controls
- Select options or control cooking temperature with these easy-to-use controls.
Sealed Gas Burners
- Enjoy easier clean-up and a burner that stays looking great.
Electronic Pilotless Ignition
- Saves energy and can be ignited manually if the electricity is out.
Color-Coordinated Control Knobs
- White and Black cooktops come with matching knobs, while Stainless Steel models feature Stainless Steel knobs.
- More Easy-To-Use Features
LP Gas Conversion Option
- Kit included.
Low Simmer Burner
- Perfect for delicate foods and sauces.
A.D.A. Compliant
- When properly installed, this model is A.D.A.-qualified.
FFGC3026SB Installation Instructions
Key Features

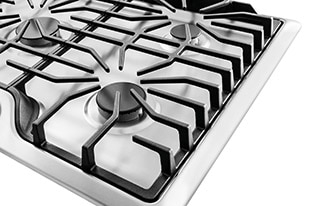

Continuous Grates
Move heavy pots & pans without lifting with continuous light cast iron grates.

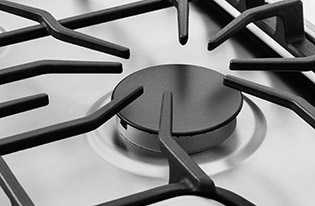

Sealed Gas Burners
Enjoy easier cleanup and a burner that stays looking great.
Color-Coordinated Control Knobs
White, Black and Bisque cooktops come with matching knobs - while Stainless Steel models feature our neutral black knobs.
Specifications
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
UPC
057112992068
Model
FFGC3026SB
Brand
Frigidaire
Burner Specifications
Number of Burners
4, Sealed
Left Rear
9,500 BTU
Left Front
12,000 BTU
Right Front
15,000 BTU
Right Rear
5,000 BTU
Cut-out Dimensions
Cut-out Width
28 1/4" - 28 5/8"
Cut-out Height
8"
Cut-out Depth
19 3/8" - 19 3/4"
Burner Output
Set 4 QTY
1
Set 4 Output
5000
Set 3 QTY
1
Set 3 Output
9500
Set 2 QTY
1
Set 2 Output
12000
Set 1 QTY
1
Set 1 Output
15000
Burner 4 Output
5000
Burner 3 Output
9500
Burner 2 Output
12000
Burner 1 Output
15000
Grill
No
Griddle
No
French Top
No
Function
Sabbath Mode
No
Burners / Elements
4
Burners
4
Induction
No
Hot Surface Indicator Light
No
Downdraft Venting
No
Control Type
Knobs
Technical Details
Voltage
120 Volts
Star-K Certified
No
Modules Required
No
Amps
15
ADA Compliant
Yes
LP Conversion
Yes
Ignition Type
Electronic
Appearance
Type
Drop-In
Style
Sealed Burner
Number of Burners
4
Color
Black
Continuous Grates
Yes
Fuel Type
Gas
Fuel Subtype
Natural Gas
Cooktop
Cooktop
Technical Specifications
Voltage Rating
120V/60Hz/15A
Power Supply Connection Location
Right Rear
LP Gas Conversion Kit
Included
Gas Supply Connection Location
Right Rear
Combination Installation w/ Electric Single Wall Oven
Yes
Amps at 120 Volts
1.0
Product Dimensions & Weight
Shipping Weight
45 lbs.
Product Width
30"
Product Height
4 1/4"
Product Depth
21 3/4"
Dimensions
Actual Width
30 Inch
Actual Height
4 1/4 Inch
Actual Depth
21 3/4 Inch
Cutout Width
28 1/4 Inch
Cutout Depth
19 3/8 Inch
GTIN
EAN
0057112992068
General
Manufacturer
Frigidaire
