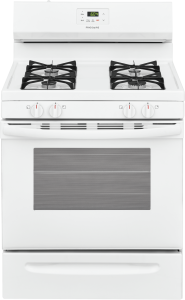

About the Frigidaire FFGF3005MW
- 4 9,000 BTU Open Burners
- 4.2 cu. ft. Oven
- Interior Light
- Electronic Ignition
- Broil & Serve Drawer
- Manual Clean
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47 1/2"
Depth:
28 1/2"
Capacity:
4.2 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Even Baking Technology
- Their latest technology ensures even baking every time.
Broil and Serve Drawer
Color-Coordinated Oven Door with Large Window
- Stylish look with a large window makes it easy to check on what's cooking without opening the door.
Bright Lighting
- Their bright lighting makes it easy to see what's inside.
Manual Clean Oven
Black Steel Grates
Electronic Ignition
Lift-Up Porcelain Cooktop
Towel-Bar Handle
2 Oven Racks
LP Gas Conversion Option
A.D.A. Compliant
Available At Designer Appliances
www.designerappliances.com
Manuals & Downloads
FFGF3005MW Owner's Guide
FFGF3005MW Specifications Sheet
FFGF3005MW Wiring Diagram
Key Features
Color-Coordinated Oven Door with Large Window
Our large oven window makes it easier to check on the status of your dish without having to open the oven door.
Low Simmer Burner
Perfect for cooking delicate foods and sauces.
LP Gas Conversion Option
Built with American Pride
Designed, engineered and assembled in the U.S.A.
Even Baking Technology
Our even baking technology ensures even baking every time.
Broil and Serve Drawer
Easily toast, brown, or crisp the outside of your food at the touch of a button.
Bright Lighting
Our bright lighting makes it easy to see what's inside.
Manual Clean Oven
ADA Compliant*
Specifications
Oven Features
Broiler Pan Included
No
Primary Oven Capacity
4.2 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
No
Self-Cleaning
No
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Bottom
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
Proof Mode
No
Appearance
Fuel Type
Gas
Style
Freestanding
Color
White
Cooktop
Open Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Broiler
Clock
No
Dimensions
Width
29 7/8 Inch
Depth
28 1/2 Inch
Height
47 1/2 Inch
Interior Width
23 Inch
Interior Depth
19 3/16 Inch
Interior Height
15 7/8 Inch
Burner Output
Set 1 QTY
4
Set 1 Output
9000
Burner 1 Output
9000
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Ignition Type
Electronic
Oven BTUs
18,000
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Product Information
Brand
Frigidaire
Model
FFGF3005MW
UPC
012505506697
Features
Oven Control
Mechanical
Timing System
No
Surface Type
Color-Coordinated Porcelain
Sealed Gas Burners
No
Grates
Black Square Steel
Window
Large
Exterior Door Finish
Color-Coordinated
Handle Design
Color-Coordinated
Exterior Finish (Side Panels)
Color-Coordinated
Convection System
No
Oven Cleaning System
Manual Clean
Drawer Functionality
Broil
A.D.A. Compliant
Yes
Cooktop Features
Right Front Burner
9,000 BTU
Right Rear Burner
9,000 BTU
Left Front Burner
9,000 BTU
Center Extra Zone Burner
N/A
Left Rear Burner
9,000 BTU
Dimensions
Cutout Width
30" Min.
Cutout Depth
24" Min.
Cutout Height
36"
Oven Interior Width
23"
Overall Height
47 1/2"
Overall Depth
28 1/2"
Overall Width
29 7/8"
Oven Interior Height
15 7/8"
Oven Interior Depth
19 3/16"
Overall Depth with Door Open 90?
46 5/8"
Oven Controls
Add-a-Minute
No
Delay Bake
No
Self-Clean
No
Quick Clean Option
No
Delay Clean
No
Kitchen Timer
No
Timed Cook Option
No
Auto Oven Shut-Off
No
Broil
Yes
Bake
Yes
Specifications
Power Supply Connection Location
Left Bottom Rear
Gas Supply Connection Location
Right Bottom Rear
Voltage Rating
120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts
1.8 kW
Amps @ 120 Volts
15 Amps
Shipping Weight (Approx.)
157 Lbs.
Oven Features
Broil Burner
14,000 BTU
Bake Burner
18,000 BTU
Broiling System
Standard
Even Baking System
Yes
Rack Configuration
2 Standard
Oven Light
1
Capacity
4.2 Cu. Ft.
GTIN
EAN
0012505506697
Capacity
Number of Burners
4
General
Manufacturer
Frigidaire
