discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
2 Item(s)

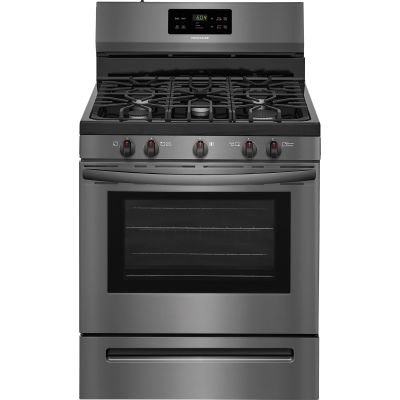

About the Frigidaire FFGF3054TD
- Simmer Burner
- Quick Boil
- Store-More™ Drawer
- One-Touch Self-Clean
- Continuous Grates
- 5 Sealed Burner
- 5 cu. ft.
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47"
Depth:
25 3/4"
Capacity:
5 Cu. Ft.
Burners:
5
Convection:
No
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
5
Enhance your kitchen with this freestanding gas range from Frigidaire. The cooktop features 5 sealed burners including specialty burners. Use the simmer burner to gently prepare delicate foods and sauces. The power burner is ideal getting your meals table ready faster. The oven offers 5 cu. ft. of capacity, allowing you to prepare an array of meals. Keep your cookware stored and organized with the range's Store-More™ storage drawer.
About Frigidaire
When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style; an appliance that has been designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances and they take pride in offering superior products and service to their customers. Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart.
Key Features
Simmer Burner
- Gently prepare delicate foods and sauces.
Quick Boil
- Get your meals table ready faster.
Store-More™ Drawer
- Keep your cookware stored and organized.
One-Touch Self-Clean
- Effortlessly keep your oven spotless.
Additional Features
- Continuous Grates
- 5 Sealed Burner
- 5 cu. ft.
FFGF3054TD Installation Instructions
Key Features
Quick Boil
Get meals on the table faster with our 17,000 BTU burner - water boils faster than the traditional setting.

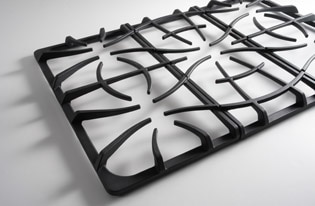

Continuous Corner-to-Corner Grates
Move heavy pots & pans without lifting with continuous corner-to-corner grates.

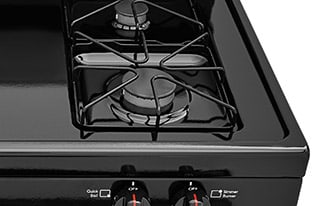

Sealed Gas Burners
Enjoy easier cleanup and a burner that stays looking great.
Electronic Kitchen Timer
Times up to 12 hours (control panel colors vary by model)
Delay Clean
Set the oven to begin cleaning on your schedule.
Timed Cook Option
Lets you set the oven to begin cooking at a predetermined time. (Control panel colors vary by model)
Specifications
Technical Details
ADA Compliant
No
Amps
5
LP Conversion
Yes - Purchase Kit
Oven BTUs
18,000
Star-K Certified
No
Voltage
120 Volts
Product Information
Brand
Frigidaire
Model
FFGF3054TD
Oven Features
Broiler
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Convection
No
Delay Bake
Yes
Digital Temperature Display
Yes
Double Oven
No
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
5 Cu. Ft.
Proof Mode
No
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
No
Self-Cleaning
Yes
Steam Clean
No
Temperature Probe
No
Timer
Yes
WiFi Connected
No
Burner Output
Burner 1 Output
17000
Burner 2 Output
5000
Burner 3 Output
9500
Burner 4 Output
12000
Burner 5 Output
9500
Set 1 Output
17000
Set 1 QTY
1
Set 2 Output
12000
Set 2 QTY
1
Set 3 Output
9500
Set 3 QTY
2
Set 4 Output
5000
Set 4 QTY
1
Simmer Burner
Yes
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
French Top
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Black Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Subtype
Natural Gas
Fuel Type
Gas
Style
Freestanding
Viewing Window
Yes
Specifications:
Dimensions
Depth
25 3/4 Inch
Depth to Handle
29 1/4 Inch
Height
47 Inch
Interior Depth
19 1/8 Inch
Interior Height
18 5/8 Inch
Interior Width
24 3/8 Inch
Width
29 7/8 Inch
Capacity
Number of Burners
5
Dimensions
Cabinet Cutout Dimensions Depth
24"
Cabinet Cutout Dimensions Height
36"
Cabinet Cutout Dimensions Width
30"
Depth
25 3/4"
Depth Including Handle
29 1/4"
Depth with Door Open 90°
46 9/16"
Height
47"
Oven 1 Interior Depth
19 1/8"
Oven 1 Interior Height
18 5/8"
Oven 1 Interior Width
24 3/8"
Width
29 7/8"
Oven Specifications
Bake
18,000 BTU
Baking System
Even Baking Technology
Oven 1 Broil
13,500 BTU
Oven 1 Broiling System
Vari-Broil™ High/Low
Oven 1 Cleaning System
Self-Clean
Oven 1 Interior Lighting
1 Incandescent
Oven 1 Rack Configuration
2 Standard
Oven 1 Rack Positions
6 positions
Oven 1 Type
Main
Oven 1 Window
Extra-Large Visualite®
Total Capacity
5 Cu. Ft.
Additional Specs
Adjustable Leveling Legs
4 Adjustable
Control Panel Finish
Black Stainless Appearance
Cooktop Finish
Black Porcelain
Door Finish
Black Stainless Steel
Drawer Finish
Black Stainless
Drawer Functionality
Storage
Exterior Finish
Painted
Handle Color
Black Stainless
Installation Type
Free-Standing
Manifold Finish
Black Stainless
Manifold Panel
Color Coordinated
Power Type
Gas
Size
30"
Cooktop Specifications
Burners
5
Center Round
9,500 BTU
Cooking Surface
Sealed Burners
Grate Color
Black Matte
Grate Material
Cast Iron
Grates
3 Continuous Grates
Knob Color
Black Stainless
Knob Type
Color Coordinated
Left Front
9,500 BTU
Left Rear
12,000 BTU
Low Simmer Burner
Yes
Quick Boil
Yes
Right Front
17,000 BTU
Right Rear
5,000 BTU
Electrical Specifications
Minimum Circuit Required (Amps)
5A
Power Supply Connection Location
Rear Centerline Lower
Voltage Rating
120V
Certifications & Approvals
ADA Compliant
No
Agency Approval
CSA Certified
Sabbath Mode
No
Cooking Controls
Bake
Yes
Broil
Variable Broil
Cancel Button
Yes
Lockout
Yes
Lower Drawer Controls
Storage
Probe
No
Self-Clean
2-3 Hours
Timed Bake
Yes
Timed Shut-off
12 hours
Timer
Yes
GTIN
UPC
012505511516
Smart
WiFi
No
General
