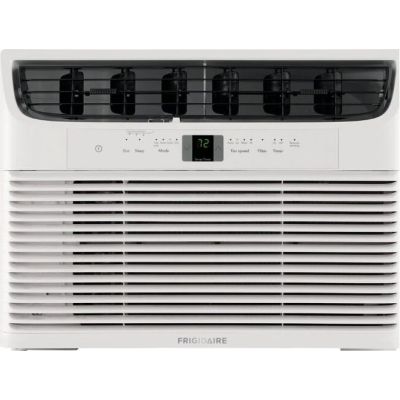

About the Frigidaire FHWC103TC1
- Frigidaire FHWC103TC1 10,000 BTU Window Room Air Conditioner with Multi Airflow
- 24-Hour On/Off Timer
- Sleep Mode
- Automatic Restart
- Washable Dust Filter
- Clean Filter Alert and Remote Control
Brand:
Installation:
Window
BTU:
10,000 BTU
Remote Included?:
Yes
Heat:
No
Height:
14 1/2"
Width:
19"
Depth:
21 1/2"
Volts:
115 Volts
Amps:
9.4 Amps
Plug Type:
5-15P
Energy Star Rated:
No
The Frigidaire 10,000 BTU Window-Mounted Room Air Conditioner is more than your standard air conditioner. The even weight distribution and slide-out chassis help make this unit easy to install. Control the temperature and fan speed from across the room with remote control. Capture dust from the air and keep your air conditioner working efficiently with easy-to-clean washable dust filter.
About Frigidaire
When you select a Frigidaire home appliance, you have chosen a product of exceptional performance, convenience, and style as well as an appliance designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances and they take pride in offering superior products and services to their customers. Through meaningful innovations, Frigidaire has humanized their technology to create uncluttered appliance designs, intuitive controls, and features that are as useful as they are smart.
Key Features
Multi-Direction Airflow
- Enables optimum circulation and cooling with 6-way directional airflow and three different fan speeds.
Easy-to-Clean Washable Dust Filter
- Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable dust filter.
Programmable 24-Hour On/Off Timer
- Customize times to fit your schedule for immediate comfort when you get home by presetting the unit to turn on and off in half hour increments.
Clean Filter Alert
- Have peace of mind knowing when its time to clean your dust filter with Clean Filter alerts.
Sleep Mode
- The temperature gradually increases a few degrees over the course of the night to make the room more comfortable for sleeping and to save energy.
Remote Control
- Easily manage your room's temperature and fan speed from across the room with the included remote control.
Automatic Restart
- Automatically resumes operating at its previous settings when power is restored to your unit.
Specifications
Functions
Dry Mode
Yes
Combined Energy Efficiency Ratio
10.9
Dehumidification - Pints per Hour
3
Operating Temperature Low
60 F
Operating Temperature High
90 F
BTU (Cool)
10000 BTU
Cool Area
450 sq.
Wi-Fi Enabled
No
Energy Saver
Yes
Low Voltage Start-up
Yes
Sleep Mode
Yes
Product Weight
57.76 lbs
Prop 65 Label
Yes
Refrigerant Type
R-32
Warranty - Labor
1 Year
Warranty - Parts
1 Year
Clean Air Ionizer
No
24-Hour On/Off Timer
Yes
Air Quality Sensor
No
Auto Fan
Yes
Auto Restart
Yes
Product Information
Brand
Frigidaire
Model
FHWC103TC1
Dimensions
Width
19 Inch
Depth
21 1/2 Inch
Height
14 1/2 Inch
Capacity
Cooling Capacity (BTU)
10,000 BTU
Smart
WiFi
No
Remote Monitoring
No
Features
Refrigerant Type
R-32
Indoor CFM, Low
423 CFM
Indoor CFM, High
545 CFM
Sleep Mode
Yes
Type
Window
Maximum Cooling Amps
9.4 Amps
Maximum Cooling Watts
890 Watts
Heat
No
Control Type
Digital
Remote Control Included
Yes
Window Type
Standard
Technical Details
Energy Star Rated
No
ADA Compliant
No
Plug Type
5-15P
Voltage
115 Volts
GTIN
UPC
12505285271
Overview
Air CFM (Low)
423 CFM
Noise Level dBA (Med)
55 dBA
Noise Level dBA (High)
59.5 dBA
Cabinet Louvers
Yes
Dust Air Filter
Yes
Exhaust Vent
Yes
Filter Access Location
Front
Filter Check Indicator
Yes
Option for Advanced Filtration
No
Noise Level dBA (Low)
53 dBA
Motor RPM (High)
1585 RPM
Motor RPM (Med)
1365 RPM
Air CFM (Med)
465 CFM
Air CFM (High)
545 CFM
Air Direction Control
Manual
Air Discharge
Front of Unit
Fan Speeds - Cool
3
Fan Speeds - Fan
3
Fresh Air
Yes
Motor RPM (Low)
1246 RPM
Rear Grill
No
Supplemental Heat
No
Window Kit
Yes
Electrical Specifications
Amps (Cool)
9.4 Amps
Plug Type
LCDI 5-15P
Voltage Rating
115 V
Watts (Cool)
890 Watts
Installation
Power Cord Length
72"
Dimensions and Volume
Window Height Minimum
15 1/2"
Window Width Maximum
36"
Window Width Minimum
23"
Height
14 1/2"
Width
19"
Depth
21 1/2"
Controls
Control Type
Electronic
Remote Control
Yes
CSA Listed
Yes
ENERGY STAR Certified
No
General
Manufacturer
Frigidaire
