discontinued

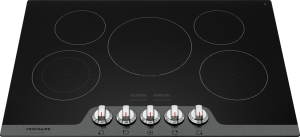

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the Frigidaire FGEC3067MS
- 5 Heating Elements
- 2 Expandable Elements
- Keep Warm Zone
- Express-Select Knob Controls
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
30 3/8"
Height:
2 5/8"
Depth:
21 3/8"
Cutout Width:
29 5/8"
Cutout Depth:
20 1/4"
Volts:
240/208 Volts
Amps:
40
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
SpaceWise Expandable Elements
- Flexible elements expand to your cooking needs.
Express-Select Controls
- Easily go from warm to boil.
Quick Boil
- Boils water faster.
Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
Fits-More Cooktop
- The Fits-More cooktop features five elements so you can cook more at once.
Ceramic Glass Cooktop
- For a more beautiful cooktop that's easy to clean.
Approved Over Frigidaire Electric Wall Ovens
- Cooktops are approved for installation above any of their Single Electric Wall Ovens.
Hot Surface Indicators
- Available at Designer Appliances.
- www.designerappliances.com
FGEC3067MS Installation Instructions
Key Features
Express-Select Controls
Easily go from warm to boil.
Specifications
Burner Output
Burner 4 Output
100
Burner 3 Output
1200
Burner 2 Output
1500
Burner 1 Output
3000/1600
Set 2 Output
1500
Set 2 QTY
1
Set 1 Output
3000/1600
Set 1 QTY
2
Set 3 QTY
1
Set 3 Output
1200
Griddle
No
Grill
No
Set 4 Output
100
Set 4 QTY
1
Specifications
Voltage Rating
240/208V / 60Hz
Connected Load (kW Rating) @ 240/208 Volts
8.8/6.6 kW
Amps @ 240/208 Volts
36.7/31.7 Amps
Minimum Circuit Required
40 Amps
Shipping Weight (Approx.)
63 Lbs.
Power Supply Connection Location
Right Rear
Approved For Electric Single Wall Oven Combination Installatio
Yes
Function
Burners / Elements
5
Sabbath Mode
No
Hot Surface Indicator Light
Yes
Induction
No
Downdraft Venting
No
Control Type
Knobs
Burners
5
Dimensions
Overall Depth
21 3/8"
Overall Height
2 5/8"
Cutout Width
29 5/8" Min. - 29 7/8" Max.
Cutout Depth
20 1/4" Min. - 20 1/2" Max.
Cutout Height
5"
Overall Width
30 3/8"
Product Information
Model
FGEC3067MS
Brand
Frigidaire
UPC
057112990408
Appearance
Type
Drop-In
Number of Burners
5
Trim Color
Stainless Steel
Surface Color
Black
Color
Stainless Steel
Cooktop
Cooktop
Style
Smoothtop
Fuel Type
Electric
Features
Controls
Express-Select
Surface Type
Black Ceramic Glass
Right Front Element
6"/9" - 1,600/3,000 Watts
Right Rear Element
7" - 1,500 Watts
Left Front Element
6"/9" - 1,600/3,000 Watts
Left Rear Element
6" - 1,200 Watts
Center Element
Keep Warm Zone - 100 Watts
Hot Surface Indicators
Yes
Control Location
Right Side
Dimensions
Cutout Depth
20 1/4 Inch
Cutout Width
29 5/8 Inch
Actual Height
2 5/8 Inch
Actual Depth
21 3/8 Inch
Actual Width
30 3/8 Inch
Technical Details
Voltage
240/208 Volts
Amps
40
Modules Required
No
Star-K Certified
No
ADA Compliant
No
Specifications:
Series
Gallery
General
Manufacturer
Frigidaire Gallery
