About the Frigidaire FHWC3050RS
- 30 Inch Under-Cabinet Ventilation Hood with 3-Speed 400 CFM PowerPlus Fan
- Smudge-Proof Finish
- 4 PowerBright LED Lights and Dishwasher-Safe Filters
Brand:
CFM:
400 CFM
Venting Type:
Ducted
Style:
Canopy Pro Style
Width:
30"
Height:
10 1/2"
Depth:
20"
Key Features

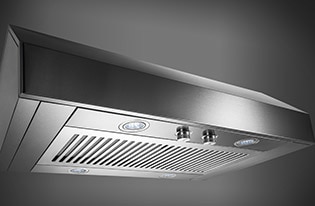

PowerPlus 3-Speed Fan
- Powerful airflow at 3 different speeds - quietly moves up to 400 cu. ft. of air per minute.
Smudge-Proof
- Resists fingerprints and cleans easily.

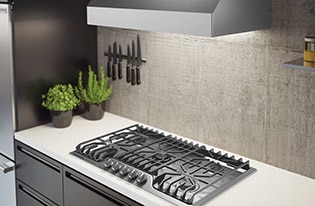

PowerBright LED Cooktop Lighting
- Clear, bright view of your cooktop workspace with LED lighting for seamless meal preparation. Offers 3 different brightness levels.
Dishwasher-Safe Filters
- For consistently clean air circulation, use our removable, dishwasher-safe filters.
FHWC3050RS Installation Instructions
Key Features
PowerPlus 3-Speed Fan
Powerful air flow at 3 different speeds - quietly moves up to 400 cu. ft. of air per minute.
Smudge-Proof Stainless Steel
Resists fingerprints and cleans easily.
PowerBright LED Cooktop Lighting
Clear, bright view of your cooktop workspace with LED lighting for seamless meal preparation. Offers 3 different brightness levels.
Stainless Steel Filters
For consistently clean air circulation, use our removable, dishwasher safe filters.
Specifications
Smart
WiFi
No
Dash Replenishment
No
Bluetooth
No
Smart Accessory Required
No
Ventilation/Light System
Exhaust Duct
External
Duct/Ductless Vent
No
Duct Diameter
3-1/4" x 10"
Cooktop Light
Yes
Charcoal Filter
Optional
Blower Type
Fan
AutoStart Heat Sensor
No
Air Discharge
Vertical
Exhaust Fan Capacity
400
Exhaust Fan Speeds
3
Filter Type
Dishwasher-Safe Stainless Steel
Work-Area Light
LED
Vent Style
Hidden
Non-stick Coating
Yes
Lights
4
Filters
2
Electrical Specifications
Watts @ 120 Volts
330
Voltage Rating
120V 60Hz
Connected Load @ 120V
0.33
Circuit Amps
15.0
Amps @ 120 Volts
3.25
Controls
Electronic Controls w/ Display
No
Control Type
Knob
Dimensions
Width
30 Inch
Depth
20 Inch
Height
10 1/2 Inch
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Model
FHWC3050RS
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Canopy Pro Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Fingerprint Resistant
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
GTIN
UPC
012505563515
Dimensions: Cut-Out
Height
10-3/4"
Certifications & Approvals
UL/cUL (ElxEProEDesFrig)
Yes - cULus
Agency Approval(All Brands)
UL/cUL
Warranty
Parts and Labor
1 Year Limited
General Specifications
PROP 65 Label
Yes
Mounting Type
Easy Fit
Filter Type
Dishwasher-Safe Stainless Steel
Features
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Lighting Levels
3
Capacity
CFM
400 CFM
Sones
6.6
Permanent Air Flow Reduction
No
Noise Level
6.6 Sones
Dimensions: Exterior
Width
30"
Height
10-1/2"
Depth
20"
General
Manufacturer
Frigidaire Professional
