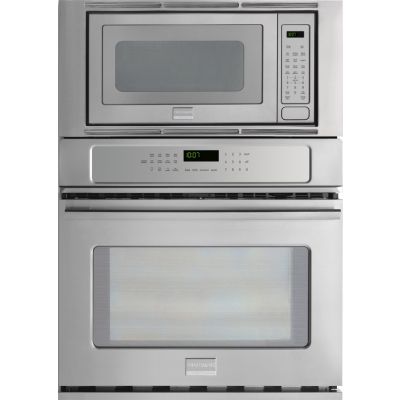

About the Frigidaire FPMC2785PF
- 27" Combination Wall Oven with 3.8 cu. ft. True Convection Oven
- 2.0 cu. ft. Microwave
- Self-Clean
- PowerPlus Preheat
- Automatic/Sensor Cooking and One Touch Options
Brand:
Oven Style:
Double
Capacity:
2 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
27"
Height:
42 3/4"
Cutout Width:
24 7/8"
Cutout Height:
41 1/8"
Fuel Type:
Electric
Volts:
230/208 Volts
Amps:
30
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
PowerPlus Preheat
- Preheat in less than six minutes.
True Convection
- Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking.
Fits-More Microwave Oven
- Extra-large microwave provides 2.0 cu. ft. of cooking space.
Smudge-Proof Stainless Steel
- Reduces fingerprints and smudges so it's easy to clean.
Effortless Convection
- Takes the guesswork out of convection cooking.
- Their oven automatically adjusts standard baking temperatures to convection temperatures for consistent results.
SpaceWise Half Rack
- Flexible rack system that adjusts to cook multiple dishes at once.
- Remove the half rack and you'll have extra height for tall dishes.
PowerPlus Broil
- Added power means you can broil food faster.
One-Touch Keep Warm Setting
- Just one touch of a button keeps food warm until everything - and everyone - is ready.
Effortless Reheat
- Reheat almost anything at the touch of a button.
Built with American Pride
- Appliances that are high-performing, more accessible, and more innovative than ever.
- Designed, built, and engineered in the U.S.A.
"My Favorite" Setting
- Easily program your most used setting with the touch of a button.
Pro-Select Controls
- Precise control at your fingertips.
Sabbath Mode (Star-K Certified)
- Available at Designer Appliances.
- www.designerappliances.com
FPMC2785PF Complete Owner's Guide
Specifications
Technical Details
ADA Compliant
No
Amps
30
Star-K Certified
Yes
Undercounter Installable
No
Voltage
230/208 Volts
Wattage
3400
Oven Features
Broiler Element Location
Top
Control Type
Digital
Convection
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Racks
3
Proofing
No
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
Yes
Timer
Yes
Microwave Features
Capacity
2 Cu. Ft.
Convection Oven
No
Watts
1200
With Turntable
Yes
Appearance
Clock
Digital
Color
Stainless Steel
Drawer
None
Fuel Type
Electric
Microwave
Yes
Speed Oven
No
Stainless Steel Handle
Yes
Steam Oven
No
Style
Double
Viewing Window
Yes
Dimensions
Cutout Depth
23 1/2"
Cutout Height
41 1/8"
Cutout Width
24 7/8"
Exterior Depth
24 1/2"
Exterior Height
42 3/4"
Exterior Width
27"
Specifications:
Series
Professional
Certifications
Sabbath Mode (Star-K Certified)
Yes
Dimensions
Cutout Depth
23 1/2" Min.
Cutout Height
41 1/8" - 41 1/4"
Cutout Width
24 7/8" - 25 1/4"
Microwave Interior Depth
18 5/8"
Microwave Interior Height
10 1/2"
Microwave Interior Width
17 3/8"
Oven Interior Depth
18 3/4"
Oven Interior Height
17"
Oven Interior Width
20 1/2"
Overall Depth
24 1/2"
Overall Depth with Door Open
45 1/2"
Overall Height
42 3/4"
Overall Width
27"
Microwave Control Options
Add-30-Seconds
Yes
Auto Cook Options
3
Auto Defrost Options
6
Auto Melt / Soften Options
4
Auto Reheat Options
3
Baked Potato Button
Yes
Chicken Nugget Button
Yes
Delay Start
Yes
Keep Warm
Yes
Popcorn Button
Yes
Reheat Button
Yes
Sensor Cooking Options
5
Snack Button
Yes
Snack Menu Options
3
User Preferences
Yes
Vegetable Cook Sensor
Yes
Specifications
Amps @ 240/208 Volts
28.8/25 Amps
Connected Load (kW Rating) @ 240/208 Volts
6.9/5.2 kW
Minimum Circuit Required
30 Amps
Power Supply Connection Location
Left Bottom Rear
Shipping Weight (Approx.)
220.0 Lbs.
Voltage Rating
240/208V / 60Hz
Features
Control / Timing System
Pro-Select
Exterior Door Finish
Smudge-Proof Stainless Steel
Handle Design
Stainless Steel
Microwave Features
Clock
Yes
Control Lock
Yes
Interior Color
White
Interior Light
Yes
Microwave Capacity
2.0 Cu. Ft.
Power Levels
10
Touch Pad Buttons
28
Turntable Diameter
16"
Turntable On / Off
No
Watts (IEC-705 Test Procedure)
1,200 Watts
Window
Large
Oven Features
Bake Element
1,450 Watts
Baking System
Even Baking Technology
Broil Element
3,400 Watts
Broiling System
PowerPlus Broil
Convection System
PowerPlus Convection
Hidden Bake Element
Yes
Oven Capacity
3.8 Cu. Ft.
Oven Cleaning System
Self Clean / Steam Clean
Oven Lights
2 Halogen
Oven Rack Configuration
1 Heavy Duty, 1 SpaceWise Half Rack, 1 Offset Rack
Oven Window
Extra-Large with Pro-Tint Finish
PowerPlus Preheat
Yes
Oven Controls
Add-a-Minute
No
Chicken Nugget Button
No
Convection Conversion
Effortless
Effortless Temperature Probe
Yes
Keep Warm
Yes
My Favorite
Yes
Pizza Button
No
Slow Cook
Yes
General
Manufacturer
Frigidaire Professional
