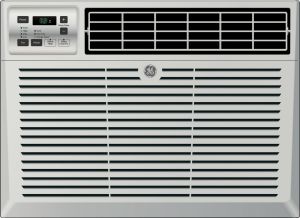

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
2 Item(s)

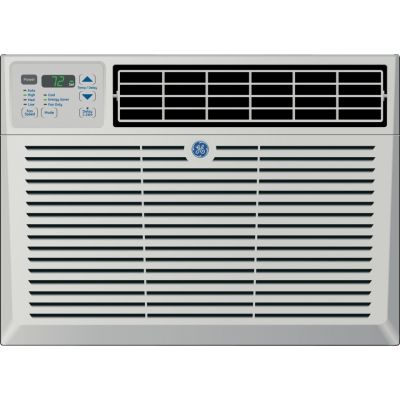

About the GE AEM18DQ
- R-410A Refrigerant
- 10.7 EER
- 470 CFM
- Delay Timer
- Energy Saver
- Digital Thermostat
- Remote Control
Brand:
Installation:
Window / Wall
BTU:
18,000 BTU
Max CFM:
470 CFM
Remote Included?:
Yes
Heat:
No
Height:
17 25/32"
Width:
23 5/8"
Depth:
25 7/16"
Volts:
230/208 Volts
Amps:
8.8 Amps
Plug Type:
6-15P
Energy Star Rated:
Yes
EER:
10.7
Selecting a GE air conditioner is not only good for the occupant and guests, it's a decision that will leave you resting comfortably as well. All GE air conditioners are engineered to give many years of dependable service with a full complement of standard features and a variety of exclusive GE features. They're designed for hassle-free installation and easy maintenance.
How to Choose a Room Air Conditioner
Compared to large capacity central units, room air conditioners have several advantages. The initial cost of a room air conditioning unit is significantly lower than the cost of central air. Because room air conditioners are designed for cooling small spaces, operating costs are reduced. And, room air conditioners can provide personalized temperature and humidity controls that central systems cannot.
Calculating Cooling Capacity
Cooling capacity is the critical factor in properly selecting a room air conditioner. Cooling capacity is measured in British Thermal Units (BTUs) and typical models will range in capacity from 5,000 BTUs to 28,500 BTUs.
Choosing an undersized unit will overwork the unit and it will not cool properly. Choosing an over-sized unit will cost more to buy and operate and it will not dehumidify properly.
We can help you to calculate capacity. Be prepared to provide specific information on:
- Room Dimensions
- A simple floor plan to show the location of doors and north-facing windows
- The number of people it will serve
- Sources of heat such as lamps, TV and appliances
- An explanation of what's above the intended room
- Your insulation provisions
Cooling Capacity by Room Size
Measure the length and width of the area to be cooled. Multiply the length by the width to determine square footage or square meters. Locate the room size in the chart below to select the appropriate BTUs. Then use the product information to select the unit for your room. When cooling rooms with uninsulated ceilings, great rooms, or southern or western sun exposures - step up to the next BTU size.
| Room Size | BTU | |
| Sq. Ft. | Sq. m | |
| 150 | 14 | up to 5,000 |
| 165 | 15 | 5,200 |
| 216 | 20 | 6,000 |
| 350 | 33 | 8,000 |
| 425 | 39 | 9,000 |
| 500 | 46 | 10,000 |
| 640 | 60 | 14,00 |
| 900 | 84 | 15,100 |
| 1,110 | 103 | 18,000 |
| 1,170 | 109 | 18,500 |
| 1,435 | 133 | 22,000 |
| 1,672 | 154 | 25,000 |
| 1,960 | 182 | 28,500 |
Air Conditioner Tips
Air flow - Keep air filters clean. Do not block air flow areas.
Roomside view - J-models feature concealed power cord storage, this eliminates excessive cord exposure when receptacle is located close to unit.
Key Features
18,000/17,600 BTU
10.7 EER
230/208 Volts
Fits Windows 26" - 41" Wide
Minimum Height 18-1/2"
R-410A Refrigerant
Electronic Digital Thermostat
Remote Control
Energy Saver Feature
Available At Designer Appliances
www.designerappliances.com
Manuals & Downloads
AEM18DQ Use and Care Manual
AEM18DQ Installation Instructions
AEM18DQ Energy Guide
Specifications
FEATURES
Rotary Compressor
Yes
Unit Type
Cool Only
Vent/Air Exchange Exhaust
Top Discharge
Refrigerant Type
R-410A
Unit Features
Selectable Thermostat on Remote
Remote Control
Yes
Plug Type
Tandem/NEMA 6-15
Louver Style
4-Way
Thermostat Type
Electronic
Airflow (cfm) Roomside (hi/low)
470/390
Chassis Type
Slide-Out
Delay Timer
24-Hour On/Off
Fan Speed Selections
3 Cooling3 Fan Only
Filter Type
One Touch Lift-Out
CAPACITY
Cooling BTUH (MIN)
17600.0 Btu
Cooling BTUH (MAX)
18000.0 Btu
Dehumidification (pts./hr.)
5.5
Cooling EER (BTUH / Watt)
10.7
APPEARANCE
Color Appearance
Light Cool Gray
Installation
EZ Mount
ECONOMICAL / QUIET
Energy Saver
Yes
WEIGHTS & DIMENSIONS
Approximate Shipping Weight
133 lb
Depth to Louvers
6 11/16 in
Grille Depth
1 15/16 in
Min./Max. Window Opening Width (in.)
26/41
Minimum Window Opening Height (in.)
18-1/2
Net Weight
117 lb
Overall Height
17 25/32 in
Overall Depth
25 7/16 in
Overall Width
23 5/8 in
Product Information
UPC
084691240044
Model
AEM18DQ
Brand
GE
POWER / RATINGS
Voltage (MAX)
230.0 V
Voltage (MIN)
208.0 V
Cooling - Watts
1680/1650
Cooling - Rated Cooling Amps AHAM
8.1/8.8
Features
Window Type
Standard
PTAC
No
Remote Control Included
Yes
Control Type
Digital
Energy Efficiency Rating
10.7
CFM Room Circulation
470 CFM
Heat
No
Maximum Cooling Watts
1,680 Watts
Maximum Cooling Amps
8.8 Amps
Cooling Capacity (BTU)
18,000 BTU
Wall Sleeve Included
No
Chassis Type
Slide Out
Type
Window / Wall
Technical Details
Energy Star Rated
Yes
ADA Compliant
No
Plug Type
6-15P
Voltage
230/208 Volts
WARRANTY
Warranty Notes
See written warranty for full detailsLimited 1-Year
Dimensions
Height
17 25/32 Inch
Depth
25 7/16 Inch
Width
23 5/8 Inch
General
Manufacturer
GE
