About the GE AVES12DCXXA

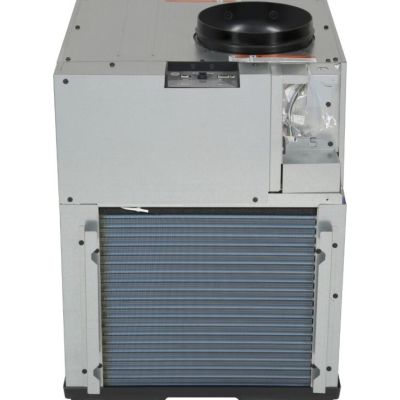

- GE AVES12DCXXA 12,000 BTU Vertical Air Conditioner with Electric Heat
- Insta - Platform™
- Self-Contained Drainage System
- Ultra-Quiet
- Reverse Cycle Defrost and Corrosion Protection
Brand:
Installation:
Vertical
BTU:
12,000 BTU
Remote Included?:
No
Heat:
Electric Heat
Series:
Zoneline Vertical
Height:
31 7/8"
Width:
23 5/8"
Depth:
24 1/8"
Volts:
230/208 Volts
Amps:
5.6 Amps
Energy Star Rated:
No
EER:
11.8
Vertical closet installations in hotels, apartments, condos, or suite-style setups where floor space is at a premium. Ideal for environments requiring corrosion resistance and efficiency, with both cooling and electric heat. Units work well in coordinated HVAC systems.
Key Features
Insta-Platform™
- One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Self-Contained Drainage System
- Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing
- Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum
- Plenum is easily installed from the interior of building, without the need for exterior building access* (*caulking required)
- Self-aligning, lock in place system proof when the chassis is placed on the platform
Onboard Diagnostics
- Electronic controls give clear and fast
Anti-Corrosion Design
- Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet
- Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ WIFI capability
- An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Smart
Remote Monitoring
No
Remote Control
No
Google Home
No
Alexa
No
WiFi
No
Remote Diagnostics
No
Dash Replenishment
No
Smart Accessory Required
No
Capacity
Cooling Capacity (BTU)
12,000 BTU
Dimensions
Height
31 7/8 Inch
Depth
24 1/8 Inch
Width
23 5/8 Inch
Product Information
Model
AVES12DCXXA
Brand
GE
Weights & Dimensions
Net Weight
120 lb
Approximate Shipping Weight
132 lb
Warranty
Parts Warranty
Limited 2-5 Year Warranty
Limited
5-Year Warranty, Sealed Refrigeration System
Labor Warranty
Limited 1-Year Warranty
Technical Details
Voltage
230/208 Volts
ADA Compliant
No
Energy Star Rated
No
Features
Refrigerant Type
R-454B
PTAC
No
Remote Control Included
No
Energy Efficiency Rating
11.8
Heat
Electric Heat
Maximum Cooling Watts
1,060 Watts
Maximum Cooling Amps
5.6 Amps
Type
Vertical
Overview
Product Type
Vertical Air Conditioners
Makeup Air
No
EER2 Minimum (230V) OPT for SEER2
11.8 / 11.7
Corrosion Treated
Yes
Cool with Resistance Heat
Yes
Control Type
Tactile touch pad with LED Display
Refrigerant Charge (oz.)
33
Refrigerant Type
R454B
Sensible Heat Ratio
0.77
Capacity
Dehumidification (pts./hr.)
3
Cooling BTU (230 / 208V)
12500 / 12400
Accessories Needed
Outdoor Grille
Yes
Thermostat
Yes
Access panel / Return Air Grille
Yes
Power Connection
Yes
Wall Plenum
Yes
Insta-Platform™
Yes
Power/Ratings
Volts/Amps
230 / 208V
Cooling - Watts
1060 / 1070
Cooling - Amperes
5.6 / 5.2
Zoneline Features
SmartHQ™ Management Capable (Requires module & Subscription)
Yes
Onboard Diagnostics
Yes
Corrosion Protection
Yes
Reverse Cycle Defrost
Yes
Ultra-Quiet
Yes
Quick-Install Plenum
Yes
Fast-Connect Plumbing
Yes
Self-Contained Drainage System
Yes
Saves 60% on Install Time
Yes
Insta - Platform™
Yes
General
Series
Zoneline Vertical
Manufacturer
GE
