About the GE AVVS12DCXWA

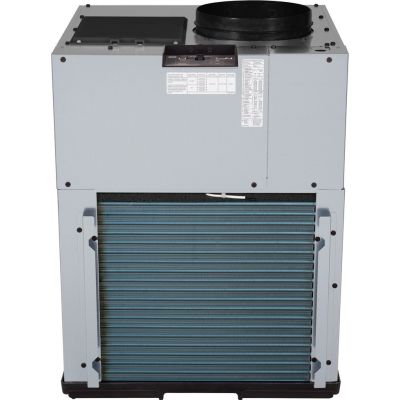

- GE AVVS12DCXWA 11,000 BTU Vertical Zoneline Inverter Air Conditioner with Heat Pump
- Insta - Platform™
- Self-Contained Drainage System
- Ultra-Quiet
- Reverse Cycle Defrost and Corrosion Protection
Brand:
Installation:
Vertical
BTU:
12,000 BTU
Remote Included?:
No
Heat:
Heat Pump
Height:
31 7/8"
Width:
23 5/8"
Depth:
24 1/8"
Volts:
230/208 Volts
Amps:
4.8 Amps
Energy Star Rated:
No
EER:
12
The UltimateV11 is the next generation of VTAC featuring Inverter Technology enabling controlled and precise performance in a broad range of applications. The UltimateV11 has achieved the energy efficiency DOE industry requirements.
Key Features
Insta-Platform™
- One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Self-Contained Drainage System
- Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing
- Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum
- Plenum is easily installed from the interior of building, without the need for exterior building access* (*caulking required)
- Self-aligning, lock in place system proof when the chassis is placed on the platform
Onboard Diagnostics
- Electronic controls give clear and fast
Anti-Corrosion Design
- Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet
- Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ™ Wifi Ready (Requires Subscription)
- An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Capacity
Heating Capacity (BTU)
10,900 BTU
Cooling Capacity (BTU)
12,000 BTU
Dimensions
Height
31 7/8 Inch
Depth
24 1/8 Inch
Width
23 5/8 Inch
Product Information
Model
AVVS12DCXWA
Brand
GE
Dimension and Weight
Weight
125 lbs.
Height
31 7/8"
Depth
24 1/8"
Width
23 5/8"
Warranty
Parts Warranty
Limited 2-year entire appliance
Labor Warranty
Limited 1-year entire appliance
Smart
WiFi
Yes
Features
Type
Vertical
Refrigerant Type
R-454B
PTAC
No
Remote Control Included
No
Energy Efficiency Rating
12
Heat
Heat Pump
Maximum Cooling Watts
1,050 Watts
Maximum Cooling Amps
4.8 Amps
Technical Details
Voltage
230/208 Volts
ADA Compliant
No
Energy Star Rated
No
Certifications
Claims & Certifications
California Prop 65, UL, AHRI, CUL, NRCAN
Power/Ratings
Cooling BTUH Range (@95F Outdoor)
5200 - 16,200
CFM @ 0.1 ESP Dry
380 (low fan), 465 (high fan)
Cooling BTUH (MAX - 115F)
11200
Cooling - Watts
1050
Cooling BTUH (95F)
12500
Cooling - Amperes
4.8
CFM @ 0.3 (high fan) Nominal Cooling
420
Volts/Amps
230 / 208V
Overview
Heating BTU at 17F max
9100
Heating BTU at 17F nominal
6300
Heating BTU HP @ 47F
11200
Refrigerant Type
R454B
Sensible Heat Ratio
76% ( at 95F Nominal Cool High Fan)
COP2 at 17F nominal / max
2.2
Refrigerant Charge (oz.)
38.5
Heat Pump with Resistance Heat Backup
Yes
Control Type
Tactile touch pad with LED Display
SEER2
17
Dehumidification (pts./hr.)
2.8 Nominal Cooling High Fan
Color
Gray
HSPF2 Rating
8.1
Makeup Air
No
EER2 @ 95F (12,000 BTU)
12
Corrosion Treated
Yes
COP2 @ 47F
3.5
Heating BTU Range @ 47F
4500 - 13000
Heat Pump
Yes
Product Type
Vertical Air Conditioners
General
Manufacturer
GE
