About the GE AVVS24DCXWA

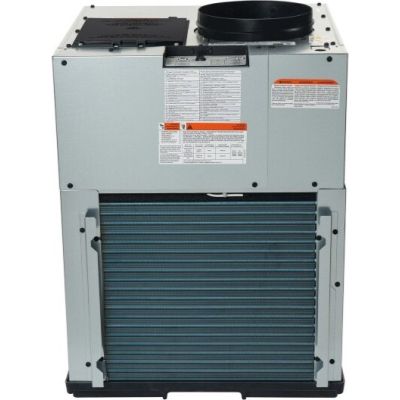

- GE AVVS24DCXWA 22,400 Vertical Air Conditioner with Heat Pump
- Insta - Platform™
- Inverter Technology
- Adjustable Makeup Air
- Ultra Quiet
- Reverse Cycle Defrost
- Corrosion Protection and SmartHQ Wifi Ready
Brand:
Installation:
Vertical
BTU:
22,400 BTU
Remote Included?:
No
Heat:
Heat Pump
Series:
Zoneline
Height:
31 7/8"
Width:
23 5/8"
Depth:
24 1/8"
Volts:
230/208 Volts
Amps:
10.9 Amps
Energy Star Rated:
No
EER:
8.9
This unit is well-suited for light commercial use (vertical terminal air conditioner, “VTAC”) or multi-tenant buildings where you want a single package unit that handles both heating & cooling and also provides fresh-air intake via make-up air.
Key Features
Inverter Driven
- Inverter-driven, variable-speed compressor: the unit supports a broad cooling capacity range (from ~5,000 to ~24,000 BTU) thanks to the inverter technology.
R-454B
- Uses refrigerant R-454B (lower GWP refrigerant) for improved environmental performance.
Built-in “make-up air” function
- the unit can bring in fresh outdoor air (30-70 CFM without filter; 20-50 CFM with MERV13 filter) to replace indoor air in tighter buildings.
WiFi-ready / smart integration
- supports remote monitoring/management (via GE SmartHQ) for property-management or commercial applications.
Wide heating range
- in heating mode the heat-pump offers ~21,500 BTU at 47 °F ambient, and a range of 5,000-23,000 BTU.
Installation-friendly features
- “Insta-Platform™”, self-contained drainage, quick-install plenum, fast-connect plumbing, self-aligning lock-in-place system.
Corrosion protection
- rust-proof basepan, double painted compressor, stainless steel brackets, etc for extended durability.
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Smart
App Integration
SmartHQ
Remote Monitoring
Yes
WiFi
Yes
Capacity
Heating Capacity (BTU)
21,500 BTU
Cooling Capacity (BTU)
22,400 BTU
Dimensions
Height
31 7/8 Inch
Depth
24 1/8 Inch
Width
23 5/8 Inch
Product Information
Model
AVVS24DCXWA
Brand
GE
Overview
Net Weight
125 lb
Approximate Shipping Weight
137 lb
Parts Warranty
5 year limited parts warranty
Labor Warranty
Limited 1-year entire appliance
Voltage (MIN)
208 V
Voltage (MAX)
230 V
Self-Aligning, Lock-In-Place System
Yes
Inverter Technology
Yes
Saves 60% on Install Time
Yes
Insta - Platform™
Yes
Sensible Heat Ratio
0.7
SEER2
16
Refrigerant Type
R454B
HSPF2 Rating
7.7
Heating BTU Range @ 47F
5,000-23,000
Heating BTU @17F (Nominal/Max)
17000
Heat Pump COP2@17F (Nominal/Max)
2 (230V Performance Data Listed)
EER
8.9
COP2 @ 47F
2.8
Cooling BTU (230 / 208V)
22400
Self-Contained Drainage System
Yes
Fast-Connect Plumbing
Yes
Rated Heat Pump BTU
21500
Heat Pump - Watts
925
Heat Pump - Amps
4.4
Cooling BTUH (MAX - 75F)
27800
Cooling BTUH (MAX - 115F)
20200
Cooling BTUH Range (@95F Outdoor)
5000 - 24,000
Cooling - Watts
2430
Cooling - Amperes
10.9
SmartHQ™ Wifi Ready (Requires Subscription)
Yes
Onboard Diagnostics
Yes
Corrosion Protection
Yes
Reverse Cycle Defrost
Yes
Ultra-Quiet
Yes
Quick-Install Plenum
Yes
Features
Type
Vertical
Maximum Cooling Amps
10.9 Amps
Refrigerant Type
R-454B
PTAC
Yes
Remote Control Included
No
Energy Efficiency Rating
8.9
Heat
Heat Pump
Maximum Heating Watts
925 Watts
Maximum Heating Amps
4.4 Amps
Maximum Cooling Watts
2,430 Watts
Technical Details
Voltage
230/208 Volts
CSA Sustainability Compliant
No
ADA Compliant
No
Energy Star Rated
No
General
Series
Zoneline
Manufacturer
GE
