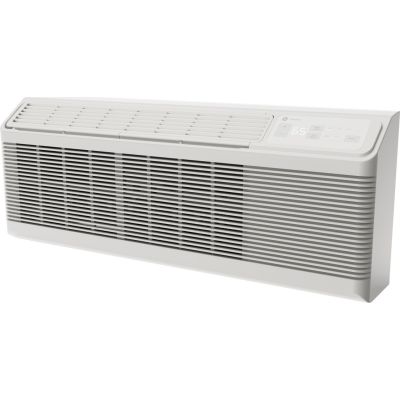

About the GE AZES15DCXXA
- GE AZES15DCXXA 14,800 BTU Packaged Terminal Air Conditioner with Electric Heat
- 10.6 EER
- Sleep Mode
- Smart Fan
- Auto Power Recovery
- R454B Refrigerant
- Electronic Controls
- 3 Fan Speed Selections and 208/230 Voltage
Brand:
Installation:
Window / Wall
BTU:
14,800 BTU
Heat:
Electric Heat
Series:
Zoneline
Height:
16"
Width:
42"
Depth:
20 13/16"
Volts:
230/208 Volts
Amps:
6.7 Amps
EER:
10.6
This 14,800 BTU GE Zoneline PTAC air conditioner will keep your guests comfortable all year round. The PTAC AC unit offers high-quality construction and customizable settings to meet even the pickiest guests' climate control demands. This GE Zoneline 14,800 BTU PTAC AC Unit with Electric Heat uses 208/230 Volts and Universal Amps.
About GE
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.
Key Features
Heat Pump
- Efficiently provides both cooling and heating, ensuring year-round comfort.
Corrosion Protection
- Extends Life of the Unit in Sea Coast Areas/Corrosive Environments.
Electronic Touch Controls
- Intuitive touch-sensitive controls for precise temperature and mode adjustments.
Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
Boost Heat Option
- Provides Supplemental Resistance Heat in Heat Pump Mode
Other Features
- Sleep Mode
- Auto Power Recovery
- 2 Pints/Hour
- LED Display
- R 454B Refrigerant
- 3-Stage Heating Design
- Reverse Cycle Defrost
- Quick Heat Recovery
Specifications
Features
Heating SystemElectric Resistance
Yes
Vent Air Filter
Yes
Freeze Sentinel
Yes
Heat Sentinel (85F)
Yes
Proportional - Integral ID Airflow
Yes
Random Twist/Length Segment Tangential Blower
Yes
Remote Thermostat Compatibility
Yes
Universal Heaters
Yes
Weather Protected Electrical Components
Yes
Louver Style
Reversible
Control Type
Tactile touch pad with LED Display
Central Desk Control Compatibility
Yes
Automatic Indoor Frost Control
Yes
"Sleep" Mode
Yes
"Smart Fan" Fan Cycle Control
Yes
Auto Power Recovery
Yes
Discharge Grille
2-position
Fan Speed Selections
Hi/Low Cooling
Fan Speed Control
Yes
Temperature Range
60 - 85 F
Corrosion Treated
Yes
Heat - Cool
Yes
Electronic Micro Computer Control
Yes
Fan Cycle Switch
Yes
Rotary Compressor
Yes
Vent Control
3-position
Concealed Manual Vent Control
Yes
Temperature Limiting
Electronic 7-Step
Fan Motor
2
Hi/Low Fan Only
Yes
Hi/Low Heating
Yes
Sensible Heat Ratio
63%
Power Factor
97
Refrigerant Type
R454B
Filter Type
Rigid Frame
Slide-Out
Yes
Manual Vent Control
Hidden
Chassis Type
Slide-In
Outdoor Vent Control - 3 Positions
Yes
Warranty
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Certifications
California Prop 65
Yes
UL
Yes
AHRI
Yes
CUL
Yes
NRCAN
Yes
Product Information
Brand
GE
Model
AZES15DCXXA
Power / Ratings
Voltage (MAX)
230.000000
Voltage (MIN)
208
Cooling - Amperes; L.R.
31.5
Cooling - Amperes; F.L. - Cooling
6.3/6.7
Cooling - Amperes
6.3/6.7
Cooling - Watts
1390/1380
Weights & Dimensions
Overall Width
42
Approximate Shipping Weight
117
Overall Height
16
Overall Depth
20 13/16
Net Weight
107
Dimensions
Width
42 Inch
Depth
20 13/16 Inch
Height
16 Inch
Features
Indoor CFM, High
440 CFM
Indoor CFM, Low
330 CFM
Refrigerant Type
R-454B
PTAC
Yes
Control Type
Digital
Type
Window / Wall
Maximum Cooling Amps
6.7 Amps
Maximum Cooling Watts
1,390 Watts
Heat
Electric Heat
Energy Efficiency Rating
10.6
Technical Details
ADA Compliant
No
Voltage
230/208 Volts
GTIN
UPC
84691942580
General
Series
Zoneline
Manufacturer
GE
Capacity
Cooling Capacity (BTU)
14,800 BTU
Smart
WiFi
No
Remote Monitoring
No
Capacity
Cooling BTUH (MAX)
14800.000000
CFM Indoor Fan Low
330
CFM Indoor Fan High
440
Cooling EER (BTUH / Watt)
10.5 / 10.6
Dehumidification (pts./hr.)
4.5 (High Speed)
Vent CFM (high fan at zero ESP)
33
Cooling BTUH (MIN)
14500
