About the GE GDF511PGMBB
- 24 Inch Built In Dishwasher with Dry Boost™ Heated Dry
- 1 HR Wash
- Piranha Hard Food Disposer
- Automatic Hot Start
- Cabinet Depth
- Heavy Wash
- 59 dBA
- Optional Wi-Fi
- Energy Star
- Tall Tub and 4 Wash Cycles: Black
Brand:
Width:
23 3/4"
Height:
34 3/4"
Sound Level:
59 dB
WiFi:
No
Accepts Panels:
No
Control Style:
Full Console
Stainless Steel Interior:
Yes
Water Softener:
No
Type:
Built In
ADA Compliant:
No
Key Features
Dry Boost™ Heated Dry
- Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
1 HR Wash
- Enjoy a quality clean when you're short on time
Piranha Hard Food Disposer
- To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
Automatic Hot Start
- Provides optimal water temperature for dependable performance

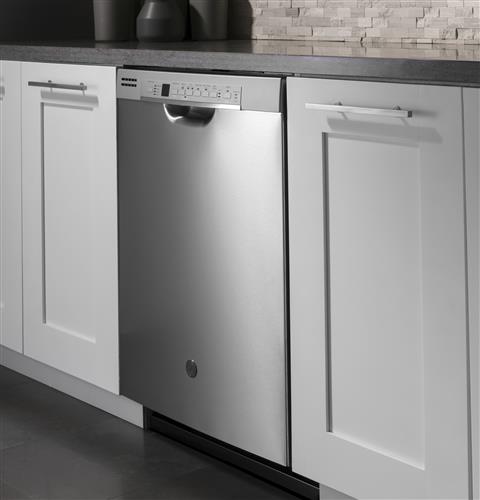

Cabinet Depth Flush Install
- Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity

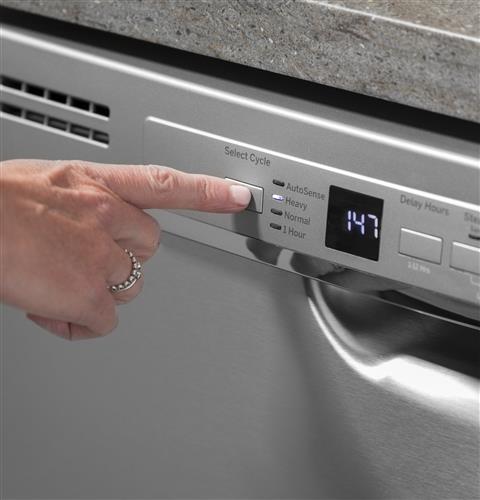

Heavy Wash
- Great for heavily soiled dishes and cookware

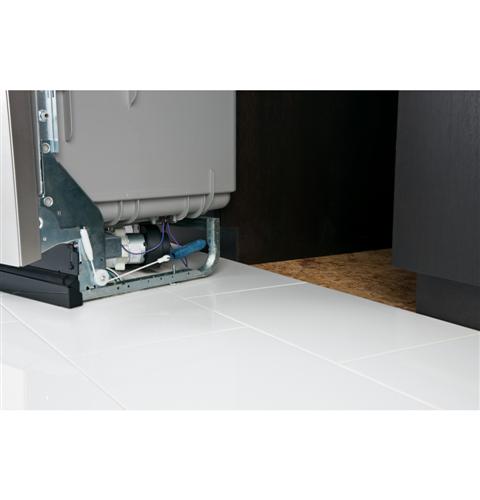

Built Up Floor Capable
- Installation over built-up floors is simple with the ability to adjust the dishwasher height to 33-3/8" - 34-5/8"
Piranha™
- 100% Filtration with Piranha Hard Food Disposer and Removable Filter
Optional Wi-Fi
- Optional (Requires part no. PBX10W00Y0)
- Amazon Alexa
- Amazon Dash Replenishment
- IFTTT
- The Google Assistant
Additional Features
- Built-Up Floor Capable
- Flush Cabinet Installation
- Side or Top Mount Install Brackets Included
- Quiet Water Valve
- Sealed Toe Kick
- Power Cord - Included
- Child Lock
- Dry Boost™
- Heated Dry
- Start/Reset
- Wash TempBoost
- Automatic HotStart
- Automatic Temperature Control
- Dedicated Silverware Jets
- Dual Pumps and Motors
- 4 Touchpads
- Electronic Tactile Buttons
- Front Controls
GDF511PGMBB Energy Guide
Key Features
Dry Boost
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
1 Hr Wash
Enjoy a quality clean when you're short on time
Dedicated Silverware Jets
Get table-ready silverware thanks to powerful jets that focus on silverware baskets
Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
Cabinet Depth Flush Install
Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity
Built Up Floor Capable
Installation over built-up floors is simple with the ability to adjust the dishwasher height to 33-3/8" - 34-5/8"
Heavy Wash
Great for heavily soiled dishes and cookware
Specifications
GTIN
EAN
0084691831099
UPC
084691831099
Appearance
Accepts Panels
No
Type
Built In
Technical Details
ADA Compliant
No
Amps
15
Approved for Outdoor Use
No
Energy Star Rated
Yes
Star-K Certified
Yes
Voltage
120 Volts
Watts
800 Watts
Features
Adjustable Upper Rack
No
Control Style
Full Console
Control Type
Digital
Cup Shelves
No
Cutlery Tray
No
Electronic Display
No
Fingerprint Resistant
No
Fold-Down Tines
No
Leveling Legs
Yes
Number of Spray Arms
2
Rack Material
Nylon
Remote Access
No
Rinse Aid Dispenser
Yes
Smart Home / App Compatible
No
Stainless Steel Interior
Yes
Stemware Holder
No
Tall Tub
Yes
Water Filtration
Yes
Water Heating
No
WiFi Connected
Yes
Product Information
Brand
GE
Model
GDF511PGMBB
Warranty Terms
1 year ? GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
Capacity
Capacity
14 Place Settings
Wash Features
China/Crystal Setting
No
Cycles
4
Delay Start
Yes
Dry Type
Heated
Half Load Option
No
Hard Food Disposer
Yes
Heavy Duty Cycle
Yes
Heavy Duty Wash
Yes
High Temperature Wash
Yes
Leak Protection
No
NSF Certified Rinse
No
Options
5
Quick Wash Setting
Yes
Rinse & Hold
Yes
Sanitize
No
Sanitize Cycle
No
Sensor Clean
No
Sound Level
59 dB
Steam Wash
No
Specifications:
Water Softener
No
Dimensions
Cutout Depth
24 Inch
Cutout Height
34 3/4 Inch
Cutout Width
24 Inch
Depth
24 Inch
Height
34 3/4 Inch
Width
23 3/4 Inch
Warranty Info
Labor
1 Year
Parts
1 Year
Smart
Smart Accessory Required
Yes
WiFi
No
Capacity
Capacity
14 Place Settings
Connected Capabilities
Amazon Alexa, The Google Assistant, IFTTT, Amazon Dash Replenishment
Control Type
Front Controls, Electronic Tactile Buttons
Dishwasher Cycles
4 (Rinse, Heavy Wash, Normal Wash, 1 Hour Wash)
Dishwasher Options
5 (Child Lock; Dry Boost™; Heated Dry;
Dispenser
Rinse Aid with Indicator and Adjustment
Dry Boost™
Yes
Heated Dry - On/Off
Yes
Leveling System
4 Leveling Legs
Lower Rack
Ball-Tip Tines
Silence Rating
59 dBA
Style
Built-In
Tub Liner
Gray Plastic
Tub Type
Tall Tub
Upper Rack
Ball-Tip Tines; Removable
Wash Arms
2 Wash Levels (Lower, Middle)
Wash System
500 Series
Water Filtration System
100% Filtration with Piranha™ Hard Food Disposer and Removable Filter
WiFi Connect
Optional (Requires part no. PBX10W00Y0)
Certifications
ENERGY STAR®
Yes
NSF Certified
No
Dimensions & Weights
Approximate Shipping Weight
76 Lbs.
Cabinet Width
24"
Height w/ Legs Retracted - Minimum Height
33 3/8"
Height w/Legs Extended - Maximum Height
34 5/8"
Net Weight
60 Lbs.
Overall Depth
24"
Overall Height
34"
Overall Width
23 3/4"
Warranty
Parts & Labor
1 Year
Electrical Specifications
Amps
7.4A
Frequency
60 Hz
Volts
120V
General
Manufacturer
GE
