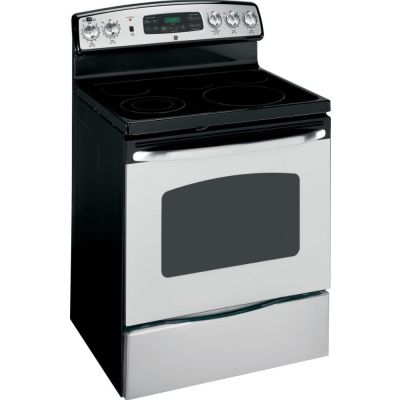

About the GE JB680SPSS
- 30" Freestanding Electric Range with 5 Radiant Elements
- 5.3 cu. ft. Self Clean Oven
- Convection Bake
- Warming Zone and PowerBoil Element: Stainless Steel
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47"
Depth:
28"
Capacity:
5.3 cu. ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
The sleekly elegant new look of GE Profile and GE free-standing ranges makes it simple to immediately update the style of any kitchen, creating a fresh, new appearance without extensive remodeling. Available in both gas and electric models, the redesigned ranges are ideal for enhancing kitchen appearance for resale value or replacing an outdated appliance.
Free-standing GE electric ranges now feature a lustrous, full stainless-steel backguard on stainless steel models, replacing the stainless steel plate on porcelain enamel. On select models, the control panel itself has an elegant stainless steel appearance for a thoroughly seamless look. Gently curved backguards for a more modern look on black, white and bisque models. Gleaming, full stainless steel doors on stainless steel models, without any black vent trim, to achieve a cleaner appearance. Control knobs are also stainless in appearance on select models. A flexible 9-inch PowerBoil dual-ring element accommodates various-sized pots and pans for added cooking versatility, and a large 12-inch element with an expansive cooking surface is wide enough to handle larger cookware. Available at Designer Appliances.
Key Features
- Convection Bake
- This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan
- Super-Large 5.3 Cu. Ft. Oven Capacity
- Provides an impressively large oven interior to cook more dishes and large meals at once
- Hidden bake oven interior
- Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior. The oven does all the work!
- 12" element
- A large, 2700-watt element provides exceptional cooking power
- Warming zone (Fifth element warming zone)
- Simplify meals by keeping foods fresh from the oven warm and ready to serve
- 5"/8" PowerBoil element
- This powerful element supplies the intense heat needed for faster boiling, sautéing and stir frying
- Available at Designer Appliances - www.designerappliances.com
Specifications
Technical Details
ADA Compliant
No
Amps
40
Ignition Type
Electronic
LP Conversion
No
Oven Wattage
2850
Star-K Certified
No
Voltage
240/208 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Touchpad
Primary Oven Capacity
5.3 cu. ft.
Proofing
No
Racks
3
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
No
Timer
Yes
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
Yes
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
No
Cooktop
Smoothtop
Drawer
Storage
Fuel Type
Electric
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
28"
Height
47"
Interior Depth
19 3/8"
Interior Height
19 1/2"
Interior Width
24 1/8"
Width
29 7/8"
Burner Output
Set 1 Output
3000
Set 1 QTY
2
Set 2 Output
1200
Set 2 QTY
2
Set 3 Output
80
Set 3 QTY
1
Set 4 Output
120
Set 4 QTY
1
Capacity
Total Capacity
5.3 cu ft
Unit Capacity
Super Large Oven
Performance
Element - Center
6" 80W Warming Zone
Element - Left Front
6"/9" 3,000W Power Boil
Element - Left Rear
6" 1,200W
Element - Right Front
9"/12" 3,000W
Element - Right Rear
6" 1,200W
Total Capacity
5.3 cu. ft.
Dimensions and Weights
Approximate Shipping Weight
185 Lbs.
Depth with Door Open
47 7/8"
Depth without Handle
25 1/2"
Height to Cooking Surface
35 3/4" - 36 1/2"
Net Weight
165 Lbs.
Oven Interior Depth
19 3/8"
Oven Interior Height
19 1/2"
Oven Interior Width
24 1/8"
Product Depth
28"
Product Height
47"
Product Width
29 7/8"
Power/Ratings
Amp Rating at 208V
40 A
Amp Rating at 240V
40 A
KW Rating at 208V
7.9 KW
KW Rating at 240V
10.5 KW
Warranty
Labor Warranty
Limited 1 Year Entire Appliance
Parts Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Weights and Dimensions
Approximate Shipping Weight
176 lb
Cabinet Width
30"
Depth with Door Open
47 5/8"
Depth Without Handle
25 3/8"
Interior Depth
19 3/8"
Interior Height
19 1/2"
Interior Width
24 1/8"
Net Weight
156 lb
Overall Depth
27 3/4"
Overall Height
46 7/8"
Overall Width
29 7/8"
Features
12" Heating Element
1 Ribbon (2700W)
5"/8" Dual Heating Element
1 Ribbon (2400 watt PowerBoil)
6" Heating Elements
2 Ribbon (1500 watt)
Audible Preheat Signal
Yes
Auto Oven Shut-Off with Override
Yes
Auto Self Clean
Yes
Automatic Oven Timer (Time Bake)
Yes
Certified Sabbath Mode
Yes
Configuration
Range with Storage Drawer
Control Location
Backsplash
Control Type
Digital Temperature Display; Electronic Touchpads
Convection Cook Pads
Yes
Cooking System
True European Convection with Precise Air
Cooking Technology
Convection
Cooktop Burner Type
Radiant; Smoothtop
Cooktop Surface
One Piece Upswept; Black Ceramic Glass
DigiTemp Temperature Display
Yes
Dishwasher Safe Knobs
Yes
Electronic Clock and Kitchen Timer
Yes
Heating Element "ON" Indicator Light
2
Hi/Low Broil
Yes
Hidden Bake
Yes
Hot Surface Indicator Lights
1
Infinite Heat Controls
Yes
Interior Oven Light
1 Halogen
Melt Setting
Yes
Mis-Wire Detection
Yes
One-Piece Upswept
Yes
Oven "ON" Light
Yes
Oven Cleaning Type
Self-Clean with Steam Clean Option
Oven Control Features
C° or F° Programmable
Oven Cooking Modes
Convection Bake
Oven Features
Dual Element Bake
Oven Interior
Hidden Bake
Oven Rack Features
3 Heavy Duty Oven Racks; 6 Rack Positions
Preheated Oven Light
Display
QuickSet IV
Yes
Radiant
Yes
Self-Clean Cool Down Time Display
Yes
Self-Cleaning Cycling Light
Yes
Smoothtop
Yes
Start Pad
Yes
Storage Drawer Features
Removable Full-Width
Style
Free-Standing
Temperature Management System
TrueTemp System
Thermal Bake/Thermal Roast
Yes
Touchpads
Yes
Warming Zone
1 Ribbon (120 watt)
Oven Control Features
Audible Preheat Signal
Yes
Auto Oven Shut-Off
Yes with Override
Auto Recipe Conversion
Yes
Auto Self Clean
Yes
C° or F° Programmable
Yes
Control Lock Capability
Yes
Convection Roast
Yes
Delay Bake Option
Yes (Time Cook)
Delay Clean Option
Yes
Electronic Clock and Kitchen Timer
Yes
Fast Preheat
Yes
Hi/Low Broil
Yes
Oven "On" Light
Yes
Sabbath Mode
Certified
Self-Clean Cool Down Time Display
Yes
Steam Clean
Yes
Warm Mode
Yes
Accessories
Cooktop Cleaning
Cream
Included
Yes
Sponge
Yes
Appearance
Black Frameless Glass Door
Yes
Configuration
Range with Storage Drawer
Control Location
Backsplash
Frameless Lift-off Oven Door
Yes
Handle
Designer-Style
Oven Door Features
Big View Oven Window; Glass Door; Stainless Overlay
Textured Steel Side Panels
Yes
Power Rating
Amp Rating at 208V
40
Amp Rating at 240V
40
Bake Wattage
2850W
Broiler Wattage
3800W
KW Rating at 208V
9.3
KW Rating at 240V
12.4
General
Manufacturer
GE
