About the GE JGBS10DEMWW
- 30 Inch Freestanding Gas Range with Sealed Cooktop Burners
- Heavy-Duty Grates
- Broil Option
- Standard Clean Oven
- Front Controls
- LP Conversion Kit
- 4.8 cu. ft. Oven Capacity and ADA Compliant: White
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/4"
Depth:
28 3/4"
Capacity:
4.8 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
Sealed Cooktop Burners
- Contains spills and make cleaning quick and easy.
Heavy-Duty Grates
- Durable grates are easy to clean and can hold a wide variety of cookware on the stove.
Broil Option
- A versatile heating element allows for more cooking options in the oven.
Standard Clean Oven
- Smooth surface makes cleaning by hand easier.
Front Controls
- Easily-assessable controls make it simple to control the stovetop and oven
LP Conversion Kit
- LP conversion kit is included.
Oven Capacity
- 4.8 cu. ft.
Certification
- ADA Compliant
JGBS10DEMWW Installation Instructions
Key Features

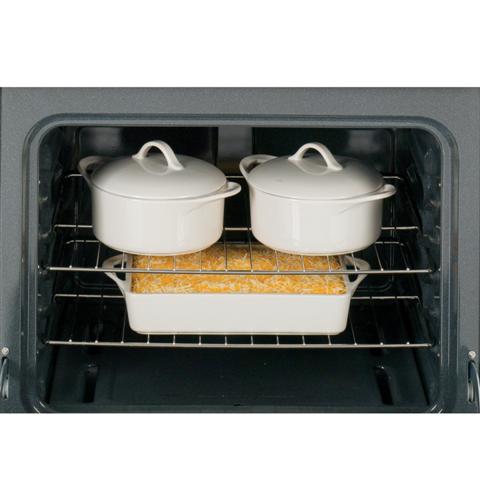

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
Sealed cooktop burners
Contains spills and make cleaning quick and easy

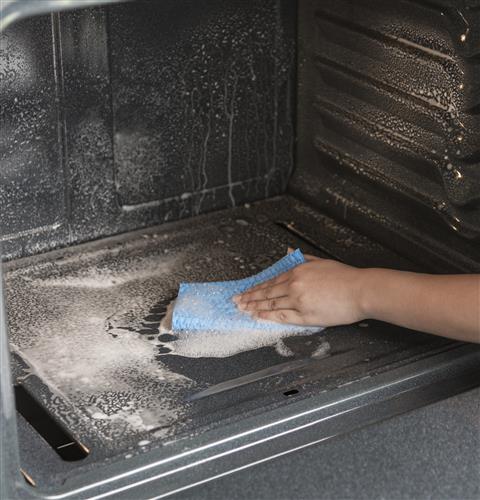

Standard clean oven
Smooth surface makes cleaning by hand easier
Specifications
Product Information
Brand
GE
Model
JGBS10DEMWW
Warranty Terms
1 year ? GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
Appearance
Fuel Type
Gas
Style
Freestanding
Color
White
Cooktop
Sealed Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Broiler
Clock
No
Dimensions
Width
30 Inch
Depth
28 3/4 Inch
Height
46 1/4 Inch
Interior Width
24 Inch
Interior Depth
19 Inch
Interior Height
18 1/2 Inch
Exterior Width
30 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
13000
Set 2 QTY
2
Set 2 Output
9500
Set 3 QTY
1
Set 3 Output
5000
Burner 1 Output
13,000 BTU
Burner 2 Output
9,500 BTU
Burner 3 Output
9,500 BTU
Burner 4 Output
5,000 BTU Precise Simmer
Simmer Burner
Yes
Features
Fingerprint Resistant
No
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
French Top
No
Oven Features
Primary Oven Capacity
4.8 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
No
Double Oven
No
Self-Cleaning
No
Steam Clean
No
Delay Bake
No
Proofing
No
Sabbath Mode
No
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
WiFi Connected
No
Proof Mode
No
Broiler Pan Included
No
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Ignition Type
Electronic
Oven BTUs
18,000
LP Conversion
Yes - Kit Included
Amps
15
Voltage
120 Volts
GTIN
UPC
084691829362
EAN
0084691829362
Capacity
Number of Burners
4
Smart
WiFi
No
Bluetooth
No
Remote Control
No
Dimensions & Weights
Approximate Shipping Weight
165 Lb.
Net Weight
145 Lb.
Oven Interior Dimensions (W x H x D)
24" x 18 1/2" x 19"
Overall Width
30"
Depth Without Handle
26 1/4"
Depth with Door Open
46 1/4"
Overall Depth
28 3/4"
Height to Cooking Surface
36" - 36 1/2"
Overall Height
46 1/4"
Warranty
Parts & Labor
1 Year
Electrical Specifications
Frequency
60 Hz
Amps
15A
Volts
120V
Claims and Certifications
California Prop 65
Yes
CSA Certified
Yes
ADA Compliant
Yes
Oven Features
Oven Cleaning Type
Standard Clean
Oven Rack Features
2 Flat Nickel Racks; 6 Rack Positions
Slide - Out Broiler Drawer
Drop Down Door
Total Capacity
4.8 cu. ft.
Oven Interior
1 Incandescent
Cooktop Features
Burner - Right Rear
5,000 BTU Precise Simmer
Burner - Left Front
9,500 BTU
Burner - Left Rear
9,500 BTU
Burner - Right Front
13,000 BTU
One-Piece Drip Pans
Optional Accessory
Cooktop Burner Grate Material
Heavy Steel
Cooktop Surface
Lift-Up; Porcelain-Enamel
Ignition System
Electronic
Cooktop Type
Standard Grates
Cooktop Burner Type
Sealed
Appearance
Cooktop Burner Grate Color
Black Gloss
Oven Door Features
Oven Window
Control Knobs
Gloss White
Handle
Designer Style
Color Appearance
White
Overview
LP Conversion Kit
Included
Oven Door Features
Oven Window
Cooking Technology
Traditional
Cleaning Type
Manual
Control Location
Front
Control Type
Rotary Knobs
Drawer Type
Broiler
Configuration
Range with Broiler Drawer
Fuel Type
Gas
General
Manufacturer
GE
