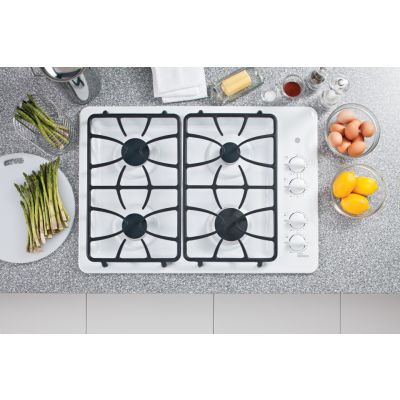

About the GE JGP333DETWW
- 4 Sealed Burners
- PowerBoil 15,000 BTU Burner
- Precise Simmer Burner
- Dishwasher-Safe Medium-Cast Grates
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
3 3/16"
Depth:
21"
Cutout Width:
28 1/2"
Cutout Depth:
19 5/8"
Volts:
120 Volts
Amps:
15
Many cooks prefer a gas cooktop. Gas cooktops are legendary for their responsiveness, even heating and customized control. The JGP333 model have Power Boil? and Precise Simmer burners, which offer high-performance capabilities to do more at once.
Key Features
Deep-Recessed Cooktop
- Deep-recessed cooktop contains spills in one area that's easy to wipe clean
Sealed Cooktop Burners
- Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
PowerBoil 15,000 BTU Burner
- This powerful element instantly supplies the intense heat need for boiling, sauteing and stir frying
Precise Simmer Burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces
Matte Black Medium-Cast Grates
- Holds cookware securely over burners
Dishwasher-Safe Grates and Knobs
- Feature durable construction for worry-free, effortless cleaning and maintenance
LP Conversion Kit is Included
Available at Designer Appliances.
- designerappliances.com
ADA Compliant
JGP333DETWW Installation Instructions
Key Features
Fit Guarantee
Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
Specifications
Burner Output
Burner 4 Output
5000
Burner 3 Output
95000
Burner 2 Output
11000
Burner 1 Output
15000
Set 3 QTY
1
Set 2 Output
11000
Set 2 QTY
1
Set 1 Output
15000
Set 1 QTY
1
Set 3 Output
95000
Set 4 QTY
1
Set 4 Output
5000
Griddle
No
Grill
No
Features
Fuel Type:
Natural Gas (Factory Set)
Valves (Degree of Turn):
270
Cooktop Burner Type:
4 Sealed
High Output Burner:
(1) 11,000 BTU
Control Type:
Manual. Lo (1-9) and Hi.
Cooktop Burner Grate Material:
Medium Cast
Cooktop Burner Grates:
Continuous. Dishwasher Safe. Matte Black.
All-Purpose Burners:
(1) 9,500 BTU
Power Boil Burner:
(1) 15,000 BTU
Precise Simmer Burner:
(1) 5,000 BTU
Ignition System:
Electronic
Cooktop Surface:
Deep Porcelain-Enamel
Control Location:
Right Side
Appearance
Color Appearance:
White
Control Knobs:
Dishwasher Safe. Plastic.
Weights and Dimensions
Cutout Width:
28 1/2"
Net Weight:
41 lbs.
Overall Height:
3 3/16"
Overall Depth:
21"
Overall Width:
30"
Approximate Shipping Weight:
46 lbs.
Cutout Depth:
19 5/8
Warranty
Parts Warranty:
Limited 1-Year Entire Appliance
Labor Warranty:
Limited 1-Year Entire Appliance
Power/Ratings
Burners 000's BTU (Natural Gas/LP Gas):
1 @ 15.0/15.0, 1 @ 10.0/11.0, 1 @ 9.1/9.5, 1 @ 5.0/5.0
Voltz/Hertz/Amps:
120V/60Hz/5A
Appearance
Number of Burners
4
Type
Drop-In
Trim Color
White
Surface Color
White
Color
White
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
Product Information
UPC
084691233077
Model
JGP333DETWW
Brand
GE
Function
Burners / Elements
4
Sabbath Mode
No
Hot Surface Indicator Light
No
Induction
No
Downdraft Venting
No
Control Type
Knobs
Burners
4
Dimensions
Cutout Depth
19 5/8 Inch
Cutout Width
28 1/2 Inch
Actual Height
3 3/16 Inch
Actual Depth
21 Inch
Actual Width
30 Inch
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Modules Required
No
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
General
Manufacturer
GE
