discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the GE JGP940TEKWW
- 4 Sealed Burners
- PowerBoil 15,000 BTU Burner
- Precise Simmer Burners
- Ceramic Glass Cooktop
- Control Lock Capability
- GE Fits! Guarantee
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Gas
Style:
Sealed Burner
Width:
29 3/4"
Height:
3 3/16"
Depth:
21 7/16"
Cutout Width:
28 1/2"
Cutout Height:
3 3/16"
Cutout Depth:
19 5/8"
Volts:
120 Volts
Amps:
10

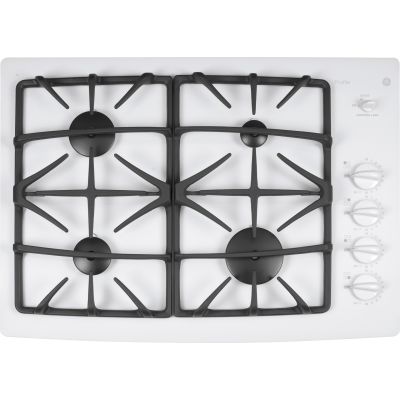

The GE Profile JGP940 Gas-on-glass cooktop has four sealed burners with pilotless Electronic Ignition. The continuous cast-iron grates and ceramic-glass cooktop provides a stylish look that is easy to clean. The Cast-iron dishwasher-safe grates provide added durability and take the work out of cleaning.
Key Features
Key Features
- Gas-on-Glass Cooktop
- Features a flat one-piece ceramic glass surface that is sleek and easy-to-clean.
- Sealed Cooktop Burners
- Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup.
- PowerBoil 15,000 BTU Burner
- Delivers 15,000 BTUs of forceful heat for rapid boiling.
- Precise Simmer Burners
- Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
- Continuous Grates
- Provide a flat, sturdy surface allowing easy movement of pans between burners.
- Dishwasher-Safe Grates and Knobs
- Feature durable construction for worry-free, effortless cleaning and maintenance.
- Control Lock Capability
- Shuts off gas to prevent unintended activation.
- Heavy-Duty Knobs (on Stainless Model Only)
Manuals & Downloads
JGP940TEKWW Installation Instructions
JGP940TEKWW Quick Specs
JGP940TEKWW Use & Care Guide
Specifications
Product Information
Warranty Terms
1 year ?GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
UPC
084691114413
Brand
GE
Model
JGP940TEKWW
Features
All-Purpose Burners 000's BTU
1 @ 11.0/150 Degree Simmer, 1 @ 9.1/150 Degree Simmer
ADA Compliant
No
Continuous Grates
Yes
Control Lock Capability
Yes
Precise Simmer Burners 000's BTU
1 @ 6.0/140 Degree Simmer
PowerBoil Burner 000's BTU
1 @ 15.0/180 Degree Simmer
Electronic Pilotless Ignition
Yes
Dual-Flame Stacked Burner 000's BTU
N/A
Dishwasher-Safe Grates and Knobs
Yes
Cooktop Surface
Ceramic-Glass
Cooktop Grates
Grey Deluxe-Cast
Cooktop Burners
4 Sealed
Controls
Right Side
Control Panel
True White
Power/Ratings
Gas Cooktop Electrical Ratings
120V, 60Hz, 5A
Burners 000's BTU (Natural Gas/LP Gas)
1 @ 15.0/13.0, 1 @ 11.0/9.1, 1 @ 9.1/9.1, 1 @ 6.0/6.0
Dimensions
Overall Width
29 3/4"
Overall Height
3 3/16"
Overall Depth
21 7/16"
Minimum Spacing to Right Wall
6"
Minimum Spacing to Left Wall
3 1/4"
Minimum Spacing to Back Wall
2 1/4"
Minimum Front Countertop Clearance
2 1/2"
Cutout Width
28 1/2"
Cutout Depth
19 5/8"
Burner Output
Set 4 QTY
1
Set 4 Output
6000
Set 3 QTY
1
Set 3 Output
9100
Set 2 QTY
1
Set 2 Output
11000
Burner 4 Output
6000
Burner 3 Output
9100
Burner 2 Output
11000
Burner 1 Output
15000
Set 1 QTY
1
Set 1 Output
15000
Grill
No
Griddle
No
Technical Details
Voltage
120 Volts
Amps
10
ADA Compliant
Yes
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Appearance
Type
Drop-In
Surface Color
White
Style
Sealed Burner
Continuous Grates
Yes
Color
White
Cooktop
Cooktop
Number of Burners
4
Fuel Type
Gas
Appearance
Heavy-Duty Knobs
Stainless Model Only
Function
Burners / Elements
4
Burners
4
Control Type
Knobs
Sabbath Mode
No
Downdraft Venting
No
Dimensions
Actual Width
29 3/4 Inch
Actual Height
3 3/16 Inch
Cutout Width
28 1/2 Inch
Cutout Height
3 3/16"
Cutout Depth
19 5/8 Inch
Actual Depth
21 7/16 Inch
General
Series
Profile
Manufacturer
GE Profile
