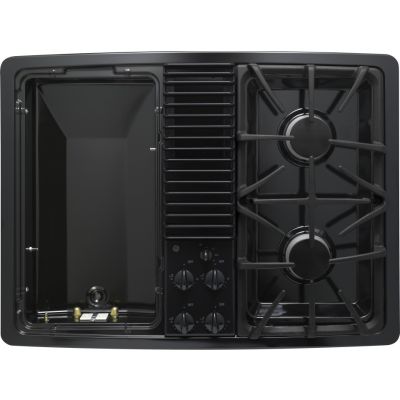

About the GE PGP990DEFBB
- 2 Sealed Burners
- 390 CFM
- Continuous Grates
- Electronic Ignition
- 3-Speed Downdraft Ventilation
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Modular
Width:
30"
Height:
18 1/2"
Depth:
21 3/4"
Cutout Width:
29"
Cutout Depth:
21"
Volts:
120 Volts
Amps:
15
This GE modular gas cooktop lets you tailor your cooktop to your specific cooking needs with optional modules accepted on the left bay. Sealed burners eliminate the space between the burners and the cooktop, simplifying clean-up, while the downdraft exhaust system efficiently pulls smoke and steam from your kitchen.
About GE
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work. Available at Designer Appliances.
Key Features
Modular Cooktop Options
- Allows the cooktop to be customized to suit individual cooking styles and tastes.
Two-burner Gas Module
- Shipped with unit (right bay), offers multiple temperature settings
Downdraft Exhaust
- Powerful exhaust system effectively pulls smoke and steam out of the kitchen.
Sealed Cooktop Burners
- Designed to eliminate the gap between the burner element and the cooktop. This helps contains food and spills on the surface for quick, wipe-away cleaning. Plus, the burner cap is removable or cleaning at the sink.
Available at Designer Appliances
- www.Designer Appliances.com
PGP990DEFBB Installation Instructions
Specifications
FEATURES
Variable Speed Fan
3 Speeds - Hi/Med/Low
Burner - Right Front
10,000 BTU
Valves (Degree of Turn)
270
Two Burner Gas Module (right side included)
JXGB91B (left side sold separately)
Burner - Right Rear
10,000 BTU
Component Style
Downdraft Vent
Accepts Modules
Left and Right Side
Ignition System
Electronic
Cooktop Surface
Deep Porcelain-Enamel
Cooktop Burner Type
2 Sealed
LP Convertible
Yes, Kit Included
Configuration
Dual Modular - Both sides accept optional modules
Control Type
Infinite Heat Rotary
Control Location
Upfront
Removable Grease Filter(s)
Yes
Optional Blower Mount Capabilities
Back or Straight Down
Mix or Match Component Capability
Yes
Griddle Module (sold separately)
JXGL90L (left side only, requires grill module (JXGG90L) to operate)
Gas Grill Module (sold separately)
JXGG90L (left side only)
Fuel Type
Natural Gas (factory set)
Dishwasher Safe Knobs
Yes
CFM/ Sones Rating
390/ 6.5 (High Speed)
Cooktop Burner Grate Features
Continuous GratesDishwasher SafeMatte Black
Burner Output
Set 1 QTY
1
Set 1 Output
10000
Set 2 QTY
1
Set 2 Output
9100
Grill
No
Griddle
No
Burner 1 Output
10000
Burner 2 Output
9100
Function
Burners
2
Control Type
Knobs
Downdraft Venting
Yes
Sabbath Mode
No
Burners / Elements
2
Dimensions
Cutout Depth
21 Inch
Cutout Width
29 Inch
Actual Height
18 1/2 Inch
Actual Width
30 Inch
Actual Depth
21 3/4 Inch
Appearance
Fuel Type
Gas
Style
Modular
Cooktop
Cooktop
Continuous Grates
Yes
Color
Black
Number of Burners
2
Type
Drop-In
Product Information
UPC
084691252931
Warranty Terms
1 year ? GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
Model
PGP990DEFBB
Brand
GE
Technical Details
ADA Compliant
Yes
Star-K Certified
No
Ignition Type
Electronic
Modules Required
Yes
LP Conversion
Yes
Amps
15
Voltage
120 Volts
GTIN
POWER / RATINGS
Volts/Hertz/Amps
120v; 60Hz; 15A
Burner BTU Ratings (000's/BTU) - LP Gas
(1) 9.1
Burner BTU Ratings (000's/BTU) - Natural Gas
(1) 10.0
Griddle BTU Rating (000's/BTU) - Natural Gas
(1) 10.0
Grill BTU Rating (000's/BTU) - LP Gas
(1) 9.1
Grill BTU Rating (000's/BTU) - Natural Gas
(1) 10.0
Griddle BTU Rating (000's/BTU) - LP Gas
(1) 9.1
WEIGHTS & DIMENSIONS
Overall Width
30 in
Overall Depth
21 3/4 in
Net Weight
64 lb
Cabinet Width
30 in
Approximate Shipping Weight
74 lb
Space Required Below Cooktop
6 in
Overall Height
18 1/2 in
APPEARANCE
Cooktop Burner Grate Color
Black Gloss
Color Appearance
Black on Black
Control Panel Color
Black
ACCESSORIES
LP Conversion Kit
Included
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Labor Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
General
Manufacturer
GE Profile
