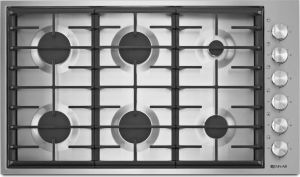

About the Jenn-Air JGC7636BP
- Low-Profile Design
- Pro-Style Stainless Design
- 18,000 BTU Brass PowerBurner
- 6,000 BTU Brass Simmer Burner
- White LED Burner Indicator
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
4 1/2"
Depth:
21"
Cutout Width:
35 3/8"
Cutout Depth:
20 3/8"
Volts:
120 Volts
Amps:
15
Key Features
Low-Profile Design
- With an extremely low profile, you can have a minimal look nearly flush with the countertop for an integrated transition to the cooktop.
Pro-Style Stainless Design
- Make a bold statement with a commercial-styled cooktop and match your other Jenn-Air Pro-Style Stainless appliances.
18,000 BTU Brass PowerBurner
- Enjoy the elegance of brass and robust heat from this PowerBurner thats necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
6,000 BTU Brass Simmer Burner
- Melt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.
White LED Burner Indicator
- White indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.
Single Point Electronic Ignition and Flame-Sensing Re-ignition
- If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.
Electronic Ignition and Flame-Sensing Re-ignition
- Gas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.
9,000 BTU Brass Burner
- Perfect for everyday cooking, this brass burner also allows you to meet special cooking needs like sautéing and braising.
Infinite Burner Control Settings
- Enjoy precise temperature controls by selecting your preferred burner setting from low to high and everywhere in between.
Built-in Oven Compatible
- Experience premium design and performance from high-end appliances when you install a single wall oven beneath your electric cooktop.
15,000 BTU Brass Burner
- Reaching a powerful 15,000 BTUs, this versatile burner features the brilliance of brass and combines precise simmer capabilities with the capacity to quickly boil water or stir fry vegetables.
JGC7636BP Installation Guide
Specifications
GTIN
EAN
0883049283081
UPC
883049283081
Dimensions
Actual Depth
21 Inch
Actual Height
4 1/2 Inch
Actual Width
36 Inch
Cutout Depth
20 3/8 Inch
Cutout Width
35 3/8 Inch
Technical Details
ADA Compliant
Yes
Amps
15
LP Conversion
Yes
Sabbath Mode
No
Star-K Certified
No
Voltage
120 Volts
Product Information
Brand
JennAir
Model
JGC7636BP
Burner Output
Burner 1 Output
15000 BTU
Burner 2 Output
15,000 BTU
Burner 3 Output
18,000 BTU
Burner 4 Output
15,000 BTU
Burner 5 Output
9000 BTU
Burner 6 Output
6000 BTU
Power Burner
Yes
Simmer Burner
Yes
Appearance
Color
Stainless Steel
Control Type
Knobs
Downdraft Venting
No
Fingerprint Resistant
No
Fuel Subtype
Natural Gas
Fuel Type
Gas
Number of Burners
6
Style
Sealed Burner
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Type
Drop-In
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
French Top
No
Griddle
No
Grill
No
Specifications:
Series
Pro
Certifications
Amps
15
Hz
60
Power Cord Included
Yes
Volts
120
Dimensions and Weight
Carton Depth
21"
Carton Height
3 1/4"
Carton Width
36"
Cutout Depth
20 3/8"
Cutout Width
35 3/8"
Depth
21"
Gross Weight
78
Height
4 1/2"
Width
36"
Warranty
Parts Only
5 Year Limited (Years 3-5)
Overview
Automatic Pan Detection
No
Center Front Element-Burner Power
15000 BTU
Center Front Element-Burner Type
High Output
Center Rear Element-Burner Power
15,000 BTU
Center Rear Element-Burner Type
High Output
Control Location
Right Side
Controls
Knobs
Cooktop Element Style
Sealed Burner
Cooktop Surface Color
Stainless
Cooktop Surface Material
Stainless Steel
Cooktop Type
Traditional
Design Type
Stainless Steel
Digital Display
No
Downdraft Vent
No
Fuel Type
Gas
Grate Details
Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish
Griddle
NA
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
No
Ignition Type
Flame-Sensing™ Re-ignition
Infinite Heat Controls
Yes
Installs Over Built-In Oven
Yes
Knob Color
Stainless Steel
Knob Type
Metal
Left Front Element-Burner Power
18,000 BTU
Left Front Element-Burner Type
Power™ Burner
Left Rear Element-Burner Power
15,000 BTU
Left Rear Element-Burner Type
Burner
LP Convertible
Yes - Kit Included
Number of Cooking Element-Burners
6
Number of Grates
3
Number of Open Bays
NA
Power Boost
No
Right Front Element-Burner Power
9000 BTU
Right Front Element-Burner Type
Burner
Right Rear Element-Burner Power
6000 BTU
Right Rear Element-Burner Type
Simmer
Selections
Heating Element On Indicator Light,Simmer
Size
36"
Wall Oven Combinations
JJW2427,JJW2430,JJW3430
Electrical Requirements
ADA Compliant
Yes
Prop 65
Standard
UL
UL
Smart
WiFi
No
General
Manufacturer
Jenn-Air
