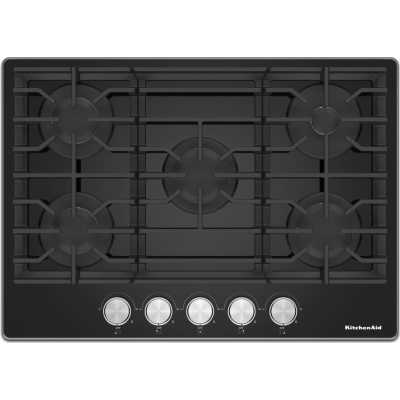

About the KitchenAid KCGG530PBL
- 30 Inch Gas Cooktop with 5 Sealed Burners
- 56.2K Total BTUs
- 18K BTU Central Burner
- Black Glass Cooktop
- Continuous Grates
- Dishwasher Safe Cast-Iron Grates
- Stainless Steel Knobs
- LP Convertible Kit Included and ADA Compliant
Brand:
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
3 1/4"
Depth:
21 1/4"
Cutout Width:
29"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
This 30' KitchenAid® [Gas-on-Glass] Cooktop is both easy to clean and the most powerful cooktop in it's class*. With 56.2K total BTUS, every meal is heated to perfection, while a glass top and dishwasher-safe elements like professionally inspired knobs and cast-iron grates, make cleaning up meals almost as easy as making them.
About KitchenAid
From the iconic stand mixer to innovative appliances, KitchenAid brand's appliance suites are designed to unlock potential. Make a meal - and a statement - with our major and small kitchen appliances. Since 1919 we've been bringing culinary inspiration to life, ensuring that anything you want to do in the kitchen, you can do with KitchenAid.
Key Features
5 Sealed Burners
- Five sealed burners offer a range of cooking options, from high heat to simmering, ensuring you have the perfect burner for every culinary need.
Powerful Performance - 56.2K Total BTUs
- With a total of 56.2K BTUs, this cooktop delivers robust heat output for faster cooking and precise temperature control.
High-Powered Precision - 18K BTU Central Burner
- The 18K BTU central burner provides intense heat for quick boiling or high-temperature cooking tasks, ensuring efficiency and speed in your kitchen.
Sleek Elegance - Black Glass Cooktop
- The black glass cooktop not only offers a sophisticated appearance but also ensures durability and easy cleanup, adding a touch of modernity to your kitchen.
Effortless Movement - Continuous Grates
- Continuous grates provide a seamless surface for moving cookware across burners, allowing for easy and stable pot and pan transfer during cooking.
Dishwasher Safe Cast-Iron Grates
- The cast-iron grates are dishwasher safe, making cleanup a breeze after preparing your favorite meals.
Stainless Steel Knobs
- The stainless steel knobs offer both durability and a sleek appearance, allowing for precise control while complementing your kitchen's aesthetic.
Flexibility in Fuel - LP Convertible Kit Included
- The LP Convertible Kit offers the option to use propane gas, providing flexibility in fuel choices to suit your cooking preferences.
ADA Compliant
- Compliant with ADA (Americans with Disabilities Act) guidelines, ensuring accessibility and ease of use for individuals with disabilities, making your kitchen more inclusive and user-friendly.
Specifications
GTIN
UPC
883049678092
EAN
0883049678092
Appearance
Glass Surface
Yes
Downdraft Venting
No
Surface Color
Black
Trim Color
Stainless Steel
Color
Black
Style
Sealed Burner
Number of Burners
5
Fuel Type
Gas
Control Type
Knobs
Controls Location
Top
Type
Drop-In
Dimensions
Actual Width
30 Inch
Actual Height
3 1/4 Inch
Actual Depth
21 1/4 Inch
Cutout Depth
19 Inch
Cutout Width
29 Inch
Burner Details
Cooktop Style
Sealed Burner
Right Rear Burner Type
Simmer
Center Burner Type
Power
Center Burner Power
18,000 BTU
Right Rear Burner Power
5000 BTU
Right Front Burner Type
Standard
Left Front Burner Power
9100 BTU
Left Front Burner Type
Standard
Left Rear Burner Power
9100 BTU
Left Rear Burner Type
Standard
Number of Cooking Burners
5
Power Boost
No
Right Front Burner Power
15,000 BTU
Cooktop Details
Digital Display
No
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Control Type
Knobs
Control Location
Front
Grate Details
Cast Iron Grates / Continuous / Dishwasher Safe / Matte Finish
Number of Grates
3
Smart Compatibility
No
Downdraft Vent
No
Electrical Requirements
120 V / 60 Hz / AC only / 15 A
Power Cord Included
Yes
Shabbos Compliance
Sabbath Mode
No
Smart
WiFi
No
Dimensions & Weights
Net Weight
68-17/50 lbs.
Cutout Width Max
29-313/1000"
Gross Weight
74-24/25 lbs.
Cutout Depth Max
20"
Cutout Height
2-7/8"
Cutout Depth Min
19"
Cutout Width
29"
Cutout Depth
19"
Product Overview
Cooktop Type
Standard
Cooktop Surface Material
Glass
Fuel Type
Gas
LP Convertible
Yes - Kit Included
Installs Over Built-In Oven
Yes
Cooktop Configuration
All Burners
Power Outage Compatible
Yes
Number of Cooking Burners
5
Cooktop Style
Sealed Burner
Technical Details
LP Conversion
Yes
ADA Compliant
Yes
Amps
15
Voltage
120 Volts
Burner
Burner 1 Output
9100 (Left Front)
Power Burner
Yes
Simmer Burner
Yes
Burner 5 Output
5000 (Right Rear)
Burner 3 Output
18000 (Center)
Burner 4 Output
15000 (Right Front)
Burner 2 Output
9100 (Left Rear)
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Product Information
Brand
KitchenAid
Model
KCGG530PBL
General
Manufacturer
KitchenAid
