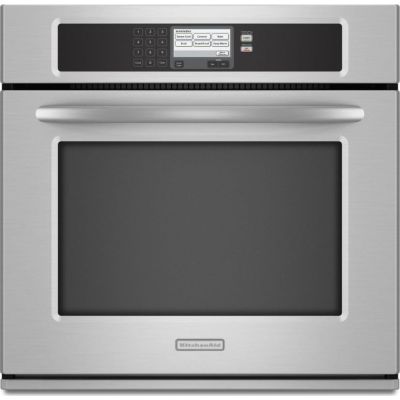

About the KitchenAid KEBU107SSS
- 30" Single Steam-Assist Electric Wall Oven with 4.3 cu. ft. Self-Cleaning Dual-Fan Convection Oven and Glass-Touch LCD Display
Brand:
Oven Style:
Single
Capacity:
4.3 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
30"
Height:
28 3/4"
Cutout Width:
28 1/2"
Cutout Height:
27 3/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
30
Introducing the U.S. industry's first full-size built-in oven with steam-assist technology, which eliminates the need for manual steps such as spritzing or basting. And with dual-fan convection, this oven promotes even airflow for consistent cooking on all three racks.
What is Dual-Fan Convection with Steam-Assist Technology?
The dual-fan convection system consists of a hidden, 2,600-watt oven element and 2 round fans in the rear of the oven. This combination promotes the most consistent heat distribution from the convection oven element thoughout the oven cavity. Steam-assist technology enhances flavor and eliminates the need for manual water baths, spritzing and basting. The combination of a dual-fan convection and steam-assit technology provides the most optioal cooking results.
EasyConvect Time and Temperature Conversion System
This system takes the guesswork out of the convection cooking by automatically converting conventional times and temperatures to their lower, more efficient, convection equivalents.
Key Features
- EasyConvect Time and Temperature Conversion System takes the guesswork out of convection cooking
- Enhanced self-clean cycle includes an energy-saving quick setting
- Dual-fan convection with steam-assist technology provides even heating and enhances flavor and texture
- High-speed, adjustable broiling performance for large or small quantities
- True-Broil Reflector concentrates heat for optimum broiling
- Removable temperature probe accurately measures internal temperature of meats, poultry, and liquid-based casseroles
- Proof bread without needing a bread maker
- Dehydrate fruits and vegetables for fresh taste throughout the year
- Blue-enameled cavity
- Certified by STAR-K KOSHER CERTIFICATION
- Glass-touch menu-driven LCD display is the perfect complement to the premium performance of the steam-assist oven
- Roll-out extension rack and slide-out racks provide heft and easy loading
- Halogen oven lights allow a more natural view of cooking progress
- Large window provides a wide, full view of all three racks
- Full glass inner door provides easy clean-up and sleek look
- Beveled edges create a soft, integrated look with surrounding cabinets
- Architect Series II styling
Specifications
Technical Details
Wattage
3250
Undercounter Installable
Yes
Voltage
240/208 Volts
Amps
30
Built-in Single Wall Ovens
Style
Architect Series II
Model Number
KEBU107S
Craftsmanship
Blue-Enameled Cavity
Yes
ClearVue Large Viewing Window
Yes
Control Lock Function
Yes
Electronic Controls with Graphic Display
No
Frameless Design with Beveled Edges
Yes
Full-Width Glass Inner Door
Yes
Glass-Touch Display
Menu-Driven LCD
Halogen Lights
3
Hefty Slide-Out Racks with Handles
2
In-Wall/Undercounter Installation
Yes
SatinGlide Roll-Out Extension Rack with Handle
Yes
Standard Oven Racks
No
Dimensions
Width (in.)
29 3/4
Cabinet Cutout Depth (min.)(in.)
24
Cabinet Cutout Height (in.)
27 3/4
Cabinet Cutout Width (in.)
28 1/2
Depth (in.)
23
Height (in.)
28 3/4
Performance
Thermal Broil
Closed-Door with Full and Center Settings
Thermal Oven
Yes
True-Broil Reflector
Yes
Temperature Probe
Yes
T.H.E. True Convection
No
Convect Roast
Yes
Dehydration
Yes
Dual-Fan Convection with Steam-Assist Technology
Yes
EasyConvect Time and Temperature Conversion System
Yes
Even-Heat True Convection System
No
Holiday/Sabbath Mode
Yes
Manual Steam
Yes
Self-Cleaning System
Soil Level/Time
Convect Broil
Closed-Door with Full and Center Settings
Convect Bake
Yes
Bread Proofing
Yes
Capacity (cu. ft.)
4.3
CleanBake Hidden Element
Yes
Appearance
Stainless Steel Handle
Yes
Steam Oven
No
Style
Single
Viewing Window
Yes
Speed Oven
No
Drawer
None
Fuel Type
Electric
Clock
Digital
Color
Stainless Steel
Microwave
No
Oven Features
Temperature Probe
Yes
Timer
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Broiler Element Location
Top
Capacity
4.3 Cu. Ft.
Control Type
Touch Sensor
Convection
Yes
Oven Racks
3
Proofing
Yes
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Specifications
Volts/Amps Required
240/30
Color Availability
SS (Stainless Steel)
Elements Ratings (Watts) - Bake
2,000
Elements Ratings (Watts) - Broil (Full/Center)
3,250/1,800
Elements Ratings (Watts) - Convection
2,600
Elements Ratings (Watts) - Steam Broiler
1,300
Dimensions
Exterior Depth
23"
Exterior Height
28 3/4"
Exterior Width
30"
Cutout Width
28 1/2"
Cutout Height
27 3/4"
Cutout Depth
24"
General
Series
Architect Series II
Manufacturer
KitchenAid
