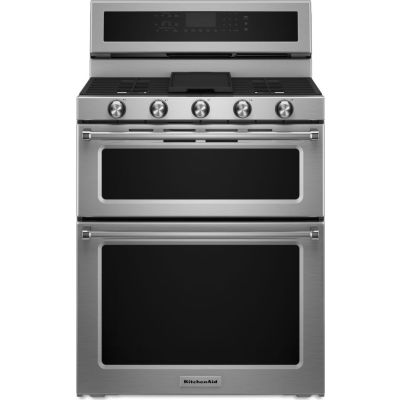

About the KitchenAid KFDD500ESS
- 30 Inch Freestanding Dual Fuel Range with 5 Sealed Burners
- 17
- 000 BTU
- 6.7 cu. ft. Combined Oven Capacity
- Even-Heat True Convection
- Steam Rack
- SatinGlide Rack
- Glass Touch Controls
Brand:
Style:
Freestanding
Width:
29 15/16"
Height:
35 3/4"
Depth:
28 1/2"
Capacity:
2.5 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
40
Key Features
Dual Fuel Range
- Satisfies the culinary needs of the most demanding cooks by combining the precise control of a gas cooking surface with an electric oven
Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
Professionally-Inspired Design
- Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid badge, a symbol of uncompromising quality
Even-Heat True Convection
- Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the inter oven is heated to, and stays at, the perfect temperature
6.7 cu. ft. Total Capacity
- Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones
5 Burners
- Provides the perfect range of cooking power from 5,000 to 16,000 BTU so you can go from a rolling boil to a delicate simmer
EasyConvect Conversion
- Takes guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you
Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience
SatinGlide Rack
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes
Stainless Steel Cooktop
- Adds the beauty of brushed stainless steel to the range cooktop
Available at Designer Appliances
- www.Designer Appliances.com
KFDD500ESS Installation Instructions
Specifications
Cooktop Features
Left Front Burner
17,000 BTU
Number of Cooking Burners
5
Center Rear Burner
7,350 BTU
Dishwasher Safe Grates
Yes
Right Rear Burner
5,000 BTU
Right Front Burner
10,000 BTU
Left Rear Burner
5,000 BTU
Grate Type
Continuous
Grate Material
Cast Iron
Grate Finish
Matte
Cooktop Surface Material
Stainless Steel
Cooktop Surface Color
Color Coordinated
Cooktop Element Style
Gas Burner
Number of Grates
2
Oven Features
Oven Control Type
Digital
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Self-Cleaning
Yes
Delay Bake
Yes
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Top
Interior Oven Light
Yes
Racks
3
Removable Door
Yes
Secondary Oven Capacity
4.2 Cu. Ft.
Primary Oven Capacity
2.5 Cu. Ft.
Proof Mode
No
Dimensions and Weight
Overall Depth
28 1/2"
Overall Height
35 3/4"
Electrical Requirements
240V/40A
Shipping Weight
260 Lbs.
Overall Width
29 15/16"
Appearance
Fuel Type
Dual Fuel
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
Yes
Technical Details
Voltage
240 Volts
LP Conversion
Yes
Amps
40
Oven Wattage
3,600
ADA Compliant
No
Ignition Type
Electronic
Star-K Certified
No
Cooktop Features
Hot Surface Indicator Light
No
Induction
No
Grill
No
Modules Required
No
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Burners / Elements
5
Griddle
Yes
Burner Output
Set 4 Output
5000
Set 3 Output
7350
Set 4 QTY
2
Set 3 QTY
1
Set 2 QTY
1
Set 2 Output
10000
Set 1 Output
17000
Set 1 QTY
1
Burner 4 Output
5000
Burner 3 Output
7350
Burner 2 Output
10000
Burner 1 Output
17000
Dimensions
Height
35 3/4 Inch
Width
29 15/16 Inch
Depth
28 1/2 Inch
Oven Features
Handle Material
Metal
Oven Rack Type
1 Gliding Roll-Out, 2 Heavy Duty
Number of Rack Guides
2 Upper, 5 Lower
Number of Oven Racks
1 Upper, 2 Lower
Number of Oven Lights
1 Upper, 1 Lower
Hidden Bake Element
Yes
Convection Functions
Bake, Broil, Roast
Convection Element Type
Single-Fan
Convection Element Power
1,600 W
Broiler Location
Top of Oven
Heating Element On Indicator Light
No
Light Type
Incandescent
Each Oven Broil Element
3,600 W
Each Oven Bake Element
2,000 W
Power On Indicator Light
Yes
Hot Surface Indicator Light
No
Automatic Convection Conversion Temperature Adjust
Yes
Overview
Lower Capacity
4.2 Cu. Ft.
Upper Capacity
2.5 Cu. Ft.
Size
30
Range Type
Freestanding Double Oven
Total Capacity
6.7 Cu. Ft.
Fuel Type
Dual Fuel
GTIN
UPC
883049326313
Smart
WiFi
No
Capacity
Number of Burners
5
Product Information
Model
KFDD500ESS
Brand
KitchenAid
General
Manufacturer
KitchenAid
