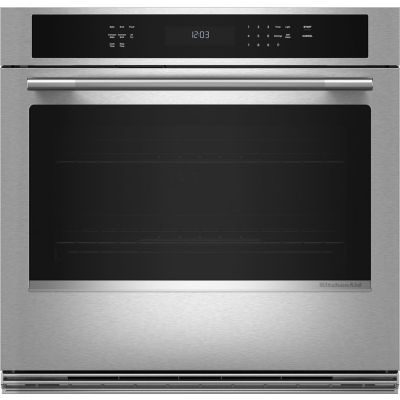

About the KitchenAid KOES530SPS
- KitchenAid KOES530SPS 30 Inch Single Wall Oven with 5.0 cu. ft. Oven Capacity
- Even-Heat™ True Convection
- EasyConvect™ Conversion System
- SatinGlide™ Roll-Out Extension Rack
- No Preheat Air Fry Mode
- Temperature Probe
- Self Cleaning & Steam Clean Cycle
- PrintShield™ Finish
- Sabbath Mode and STAR-K Certified
Brand:
Oven Style:
Single
Capacity:
5 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Fingerprint Resistant Stainless Steel
Width:
29 3/4"
Height:
28 3/4"
Cutout Width:
28 1/2"
Cutout Height:
28"
Fuel Type:
Electric
Volts:
240 Volts
Amps:
20
Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.
*When compared to deep frying.
Key Features
Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Temperature Probe
- Provides internal temperature updates on oven screen or your mobile device* so you can keep the precise heat needed for juicy pork loin roasts, halibut, lamb and more, without opening the door.
- Plus works in tandem with our Assisted Cooking Modes for seamless precision.
- *Wi-Fi & App required. Features subject to change. Amazon Alexa capabilities available in U.S. only.
- *Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada).
SatinGlide™ Roll-Out Extension Rack
- features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.
No Preheat Air Fry Mode
- Uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.*†
- *When compared to deep frying.
- †Dishwasher-safe basket sold separately.
PrintShield™ Finish
- Resists smudges and fingerprints.
- The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
EasyConvect™ Conversion System
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
FIT System Limited Guarantee
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
- *On 27" and 30" KitchenAid® wall ovens.
- Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
- Visit kitchenaid.com/promotions.
5.0 Cu. Ft. Oven Capacity
- Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts.
- It can even fit multiple dishes at once.
Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
Steam Clean
- Uses the power of steam and added water to help release spills so they can be easily wiped away.
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Appearance
Door Style
Drop Down
French Door Oven
No
Color
Fingerprint Resistant Stainless Steel
Handle Color
Stainless Steel
Fingerprint Resistant
Yes
Stainless Steel Handle
Yes
Handless
No
Control Type
Touch Sensor
Viewing Window
Yes
Drawer
None
Clock
Yes
Steam Oven
No
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
Dimensions
Cutout Height
28 Inch
Exterior Width
29 3/4 Inch
Exterior Depth
24 1/2 Inch
Exterior Height
28 3/4 Inch
Depth to Handle
26 15/16 Inch
Cutout Depth
24 Inch
Cutout Width
28 1/2 Inch
Shabbos Compliance
Sabbath Mode
Yes
Certification
STAR-K
Smart
WiFi
No
Capacity
Capacity
5 Cu. Ft.
Oven Racks
2
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Air Fry
Yes
Sous Vide
No
Push to Open
No
Soft Close
No
Removable Door
Yes
Interior Oven Light
Yes
Convection Type
True European
Proof Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat & Steam
Steam Clean
Yes
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Technical Details
ADA Compliant
No
Amps
20
Voltage
240 Volts
GTIN
UPC
883049923031
General Specifications
Product Type
Single Electric Wall Oven with Air Fry Mode
Glide-Rack Type
Roll-out extension on ball-bearing rollers
FIT System Limited Guarantee
Yes (fits standard, short or tall cabinet heights)
Self-Close Door
Yes
Steam Clean Mode
Yes (light-duty)
Fuel Type
Electric
Color
PrintShield™ Stainless
Capacity
5.0 cu ft (Oven)
Convection
Even-Heat™ True Convection with bow-tie element & fan
Air Fry Mode
Yes (Air Fry Basket sold separately)
Temperature Probe
Yes (integrated, works with Assisted Cooking)
SatinGlide™ Roll-Out Extension Rack
Yes
Instant-On Preheat & Even-Heat Preheat
Yes
EasyConvect™ Conversion System
Yes
Self-Cleaning Cycle
Yes
Dimensions & Weights
Width
29.75"
Height
28.75"
Depth
26.94" (excluding handles)
Depth Closed Including Handles
27.1"
Depth with Door Open 90°
46.25"
Cutout Width
28.5"
Cutout Height
28.0–28.5" (recommended 28.5")
Cutout Depth
24" (flush install requires ≥25")
Gross Weight
167.4 lbs.
Net Weight
~167 lbs.
Oven Cavity Details
Oven Interior Width
25"
Oven Interior Height
18"
Oven Interior Depth
19"
Oven Capacity
5.0 cu ft
Controls & Features
Broil Element
Yes
Proof Mode
Yes
Assisted Cooking Modes
Yes (e.g., meat probe guidance)
Integrated Meat Thermometer
Yes (auto-off when target reached)
Control Type
Electronic Touch Controls
Display
Digital
Timer & Clock
Yes
Control Lock
Yes
Electrical & Technical
Volts
240 V
Amps
20 A
Hz
60 Hz
Product Information
Brand
KitchenAid
Model
KOES530SPS
Oven Performance
Bake Element Power
2800 W
Broiler Element Power
4000 W (Top of oven)
Convection Element Power
3200 W
General
Manufacturer
KitchenAid
