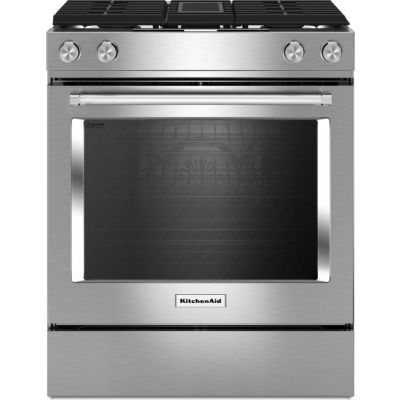

About the KitchenAid KSDG950ESS
- 30 Inch Slide-in Dual Fuel Range with 4 Sealed Burners
- 17
- 000 BTU
- 6.4 cu. ft. Convection Oven
- Built-in Downdraft Ventilation and Glass Touch Controls
Brand:
Style:
Slide-In
Width:
29 7/8"
Height:
36"
Depth:
28 7/8"
Capacity:
6.4 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
40
Key Features
Downdraft
- Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately
Even-Heat True Convection
- Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to and stays at the perfect temperature
Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
6.4 cu. ft. Oven Capacity
- This slide-in range provides a large cooking capacity that easily handles multiple dishes at once
4 Burners
- Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer
EasyConvect Conversion
- Takes guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you
FIT Guarantee
- The FIT Guarantee is KitchenAid's promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24 - 25", cabinet depth of 23 - 24" and countertop height of 36"
Aqualift
- Cleans your whole oven in less than an hour without odors and at a temperature below 200C F. This innovative system combines low heat with water to release baked-on spills
Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience
SatinGlide Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes
Available at Designer Appliances
- www.Designer Appliances.com
KSDG950ESS Dimension Guide
Specifications
Appearance
Fuel Type
Dual Fuel
Style
Slide-In
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
Yes
Cooktop Features
Hot Surface Indicator Light
No
Modules Required
No
Downdraft Ventilation
Yes
Cooktop Control Type
Knobs
Burners / Elements
4
Griddle
No
Induction
No
Grill
No
Dimensions
Width
29 7/8 Inch
Depth
28 7/8 Inch
Height
36 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
17000
Set 2 QTY
1
Set 2 Output
15000
Set 3 QTY
1
Set 3 Output
9200
Set 4 QTY
1
Set 4 Output
5000
Burner 1 Output
17000
Burner 2 Output
15000
Burner 3 Output
9200
Burner 4 Output
5000
Selections
Steam Bake
Yes
Bake
Yes
Timer
Yes
Bread Proofing
Yes
Broil
Yes
Keep Warm Setting
Yes
Delay Start
Yes
Cook Time
Yes
Clock
Yes
Cancel/Off
Yes
Controls
UL
Yes
ADA Compliant
Yes
Handle Type
Stainless Steel Towel Bar Handles
Handle Material
Metal
Drawer Type
Access Panel
Oven Features
Oven Rack Type
1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Number of Rack Guides
7
Broiler Element Power
4,000 W
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Power On Indicator Light
Yes
Bake Element Power
3,600 W
Broiler Location
Top of Oven
Convection Element Power
3,200 W
Convection Element Type
Single-Fan
Convection Functions
Bake, Broil, Roast
Number of Oven Racks
3
Number of Oven Lights
2
Light Type
Incandescent
Hidden Bake Element
Yes
Automatic Convection Conversion Temperature Adjust
Yes
Technical Details
Amps
40
Voltage
240 Volts
Oven Wattage
4,000
LP Conversion
Yes
ADA Compliant
Yes
Ignition Type
Electronic
Star-K Certified
No
Oven Features
Removable Door
No
Racks
3
Interior Oven Light
Yes
Temperature Probe
No
Sabbath Mode
Yes
Broiler Element Location
Top
Delay Bake
Yes
Proofing
Yes
Convection
Yes
Self-Cleaning
Yes
Timer
Yes
Digital Temperature Display
Yes
Oven Control Type
Touch Sensor
Primary Oven Capacity
6.4 Cu. Ft.
Proof Mode
Yes
Dimensions and Weight
Overall Height
36"
Electrical Requirements
240V/40A
Overall Depth
28 7/8"
Overall Width
29 7/8"
Shipping Weight
205 Lbs.
Cooktop Features
Number of Grates
3
Grate Type
Continuous
Grate Material
Cast Iron
Grate Finish
Matte
Dishwasher Safe Grates
Yes
Right Rear Burner
9,200 BTU
Right Front Burner
15,000 BTU
Left Rear Burner
5,000 BTU
Left Front Burner
17,000 BTU
Number of Burners
4
Cooktop surface Material
Stainless Steel
Cooktop Element Style
Sealed Gas Burner
Overview
Capacity
6.4 Cu. Ft.
Size
30"
Range Type
Slide-in
Fuel Type
Dual Fuel
Product Information
Brand
KitchenAid
Model
KSDG950ESS
Capacity
Number of Burners
4
GTIN
UPC
883049343648
General
Manufacturer
KitchenAid
