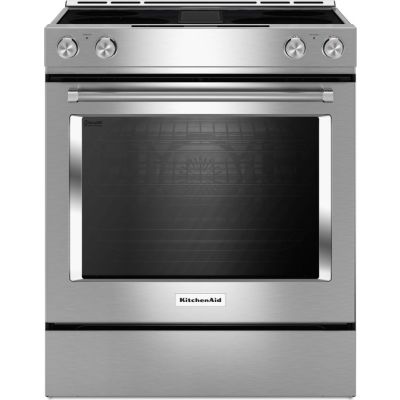

About the KitchenAid KSEG950ESS
- 30 Inch Slide-In Electric Range with 4 Elements
- 6.4 cu. ft. Capacity
- Self-Clean Oven
- Downdraft
- Even-Heat™ True Convection
- Steam Rack
- EasyConvect™ Conversion
- Aqualift®
- Glass Touch Controls
- SatinGlide® Max Racks
Brand:
Style:
Slide-In
Width:
29 7/8"
Height:
36"
Depth:
28 7/8"
Capacity:
6.4 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240 Volts
Amps:
40
Key Features
Downdraft
- Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside
Even-Heat True Convection
- Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature
Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
6.4 cu. Ft. Oven Capacity
- This slide-in range provides a large cooking capacity that easily handles multiple dishes at once
4 Cooking Elements
- >Provides four independent cooking surfaces that allow you to do more on your range. It features a double cooking zone of 6 and 10 inches, one 10 inch zone, plus two 6 inch cooking zones
EasyConvect Conversion
- Takes guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you
FIT Guarantee
- The FIT Guarantee is KitchenAid's promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24 - 25", cabinet depth of 23 - 24" and countertop height of 36"
Aqualift
- Cleans your oven in less than an hour without odors and at a temperature below 200C F. This innovative system combines low heat with water to release baked-on spills
Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience
SatinGlide Max Racks
- These racks move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Available at Designer Appliances
- www.Designer Appliances.com
KSEG950ESS Dimension Guide
Specifications
Burner Output
Burner 2
3000W (front left)
Burner 1
3200W (front right)
Burner 3
1300W (rear left)
Burner 4
1200W (rear right)
Cooktop Details
Right Rear Element-Burner Size
6"
Right Front Element-Burner Size
10"
Left Front Element-Burner Size
12"/6"
Cooktop Surface Color
Black
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Number of Cooking Element-Burners
4
Auto Re-ignition
No
Details
Number of Oven Racks
3
Cooktop Surface Material
Ceramic Glass
Number of Rack Guides
7
Oven Light Type
Incandescent
Oven Details
Power On Indicator Light
Yes
Interior Color
Grey
Oven Control Type
Electronic Touch
Oven Interior Depth
20 5/8"
Oven Interior Height
22 1/8"
Oven Interior Width
24 1/8"
Oven Light Switch Location
Oven Control
Automatic Convection Conversion Temperature Adjust
Yes
Automatic Shut-Off
Yes
Broiler Location
Top of Oven
Convection Functions
Bake, Broil, and Roast
Door Removable
Yes
Drawer Type
Access Panel
Hidden Bake Element
Yes
Dimensions & Weight
Product Width
29 7/8"
Product Depth
28 7/8"
Product Height
36"
Product Cutout Width
30"
Product Depth with Door Open 90°
48 3/4"
Net Weight
162 lbs
Electrical Details
Power Cord Included
No
Volts
240 v
Amps
40 a
Frequency
60 hz
Burner Output
Burner 3 Output
1300W (rear left)
Burner 2 Output
3000W (front left)
Power Burner
Yes
Burner 1 Output
3200W (front right)
Simmer Burner
Yes
Set 4 Output
1200
Set 4 QTY
1
Set 3 Output
1300
Set 2 Output
3000
Set 3 QTY
1
Set 1 Output
3200
Set 2 QTY
1
Set 1 QTY
1
Burner 4 Output
1200W (rear right)
Oven Features
Primary Oven Capacity
6.4 Cu. Ft.
Oven Control Type
Touch Sensor
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Self-Cleaning
Yes
Delay Bake
Yes
Proofing
Yes
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
3
Removable Door
Yes
Fast Preheat
No
Proof Mode
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Air Fry
No
Sous Vide
No
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Oven Wattage
4000
Amps
40
Voltage
240 Volts
LP Conversion
No
Cooktop Features
Grill
No
Griddle
No
Induction
No
Hot Surface Indicator Light
Yes
Modules Required
No
Downdraft Ventilation
Yes
Cooktop Control Type
Knobs
Burners / Elements
4
Dimensions
Height
36 Inch
Width
29 7/8 Inch
Depth
28 7/8 Inch
Exterior Width
30 Inch
Appearance
Drawer
None
Clock
Yes
Viewing Window
Yes
Cooktop
Smoothtop
Stainless Steel Handle
Yes
Color
Stainless Steel
Fuel Type
Electric
Style
Slide-In
Fingerprint Resistant
No
Double Oven
No
Downdraft Venting
Yes
Configuration and Overview
Fuel Type
Electric
LP Convertible
No
Range Type
Slide-in
Size
30"
Handle Material
Metal
GTIN
UPC
883049343655
Product Information
Brand
KitchenAid
Model
KSEG950ESS
Smart
WiFi
No
Smart Accessory Required
No
Capacity
Number of Burners
4
General
Manufacturer
KitchenAid
