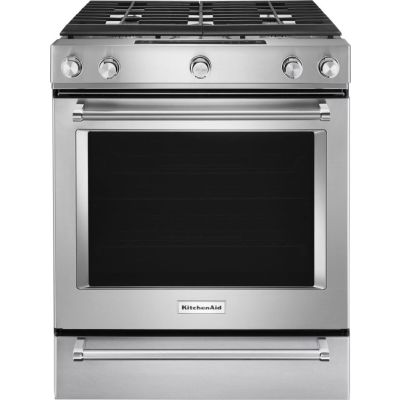

About the KitchenAid KSGB900ESS
- 30 Inch Slide-in Gas Range with 5 Sealed Burners
- 19
- 000 BTU
- 6.5 cu. ft. Convection Oven
- Wireless Probe
- Baking Drawer and Aqualift Self Clean: Stainless Steel
Brand:
Style:
Slide-In
Width:
29 7/8"
Height:
36"
Depth:
28 7/8"
Capacity:
6.5 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
Baking Drawer
- Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm
Even-Heat True Convection
- Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature
Wireless Probe
- Set this high-tech probe to the desired temperature, and listen for the alert when that temperature is reached. Easy!
Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
6.5 cu. ft. Total Capacity
- This slide-in range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer
5 Burners
- Provides the perfect range of cooking power from 5,000 to 19,000 BTU so you can go from a rolling boil to a delicate simmer
EasyConvect Conversion
- Takes guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you
FIT Guarantee
- The FIT Guarantee is KitchenAid's promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24 - 25", cabinet depth of 23 - 24" and countertop height of 36"
Aqualift
- Cleans your oven in less than an hour without odors and at a temperature below 200C F. This innovative system combines low heat with water to release baked-on spills
Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience
Available at Designer Appliances
- www.Designer Appliances.com
KSGB900ESS Dimension Guide
Specifications
Overview
Fuel Type
Gas
Range Type
Slide-in
Size
30
Drawer Type
Baking Drawer
Oven Cleaning Type
AquaLift® Self Clean
Power Outage Compatible
No
Oven Configuration
Single Oven
Oven Capacity
6.5 cu. ft.
Oven Features
Interior Oven Light
Yes
Racks
3
Removable Door
No
Temperature Probe
Yes
Proofing
Yes
Sabbath Mode
Yes
Broiler Element Location
Top
Self-Cleaning
Yes
Delay Bake
Yes
Timer
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Control Type
Touch Sensor
Primary Oven Capacity
6.5 Cu. Ft.
Proof Mode
Yes
Air Fry
No
Glide Rack(s)
Yes
Broiler Pan Included
No
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Ignition Type
Electronic
Oven BTUs
18,000
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Appearance
Fuel Type
Gas
Fuel Subtype
Natural Gas
Style
Slide-In
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Oven
Clock
Yes
Downdraft Venting
No
Fingerprint Resistant
No
Double Oven
No
Dimensions
Width
29 7/8 Inch
Depth
28 7/8 Inch
Height
36 Inch
Interior Height
22 1/8 Inch
Exterior Width
30 Inch
Interior Width
24 1/8 Inch
Interior Depth
20 5/8 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
19000
Set 2 QTY
1
Set 2 Output
15000
Set 3 QTY
1
Set 5 Output
5000
Set 4 Output
8000
Set 5 QTY
1
Set 3 Output
9200
Set 4 QTY
1
Burner 1 Output
19000
Burner 2 Output
15000
Burner 3 Output
9200
Burner 4 Output
8000
Burner 5 Output
5000
Oven Features
Broiler Location
Top of Oven
Convection Element Power
900 W
Convection Element Type
Single-Fan
Convection Functions
Bake, Broil, Roast
Hidden Bake Element
Yes
Light Type
Incandescent
Number of Oven Lights
2
Number of Oven Racks
3
Number of Rack Guides
7
Oven Rack Type
1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Broil Element Power
13,000 BTU
Bake Element Power
18,000 BTU
Power On Indicator Light
Yes
Hot Surface Indicator Light
No
Heating Element On Indicator Light
No
Automatic Convection Conversion Temperature Adjust
Yes
Cooktop Features
Grill
No
Griddle
No
Induction
No
Modules Required
No
Hot Surface Indicator Light
No
Downdraft Ventilation
No
Cooktop Control Type
Knobs
Burners / Elements
5
Selections
Baking Drawer Slow Cook
Yes
Baking Drawer Keep Warm
Yes
Baking Drawer Bake
Yes
Clock
Yes
Warm Zone
Yes
Delay Start
Yes
Cook Time
Yes
Keep Warm Setting
Yes
Bread Proofing
Yes
Steam Bake
Yes
Cooktop Features
Number of Grates
2
Grate Type
Continuous
Grate Material
Cast Iron
Grate Finish
Matte
Dishwasher Safe Grates
Yes
Right Rear Burner
9,200 BTU
Right Front Burner
15,000 BTU
Left Rear Burner
5,000 BTU
Center Rear Burner
8,000 BTU
Number of Burners
5
Cooktop Surface Material
Porcelain Coated Steel
Cooktop Element Style
Sealed Gas Burner
Left Front Burner
19,000 BTU
Cooktop Surface Color
Color Coordinated
Product Information
Brand
KitchenAid
Model
KSGB900ESS
Capacity
Number of Burners
5
GTIN
UPC
883049343587
Burner
Simmer Burner
Yes
Power Burner
Yes
Gas Cooktop Features
Dishwasher Safe Grates
Yes
Shabbos Compliance
Certification
None
Smart
WiFi
No
Bluetooth
No
Certifications
UL
Yes
ADA Compliant
ADA Height and Operation Compliant
Dimensions & Weight
Net Weight
215 lbs.
Gross Weight
262 lbs.
Oven Interior Width
24 1/8"
Oven Interior Depth
20 5/8"
Oven Interior Height
22 1/8"
Height
36"
Depth With Door Open 90 Degree
48 3/4"
Depth Closed Including Handles
28 7/8"
Depth Closed Excluding Handles
26 3/8"
Width
29 7/8"
General
Manufacturer
KitchenAid
