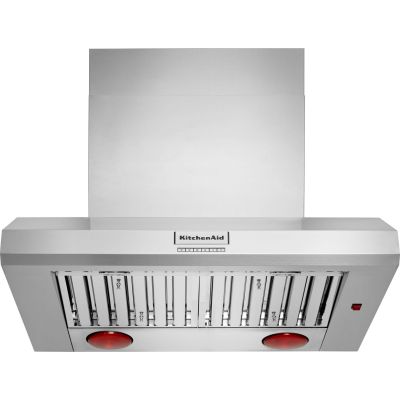

About the KitchenAid KVWC956KSS
- 36 Inch Wall Mount Canopy Range Hood with Four-Speed Fan
- 585/1
- 170 CFM Motor Sold Separately
- Push Button Control
- LED Lights
- Food Warming Lamps
- Stainless Steel Baffle Filters
- Power Boost
- Automatic Turn On
- 105
- 000 BTU Rating
Brand:
CFM:
1,170 CFM
Venting Type:
Ducted
Style:
Canopy Pro Style
Width:
36"
Height:
36"
Depth:
25"
Equip your kitchen with a powerful 36-inch wall-mount canopy range hood designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Two food-warming heat lamps hold cooked items at serving temperature for up to an hour while you finish other dishes.
About KitchenAid
KitchenAid has spent decades creating innovative products for the well-equipped kitchen. From commercial grade cooktops and wine cellars to stand mixers and an impressive assortment of cookware, bakeware and accessories, they offer virtually every culinary essential you need. So whether you cook, bake, brew, blend, or anything you want to do in the kitchen, you can do with KitchenAid.
Key Features
Four-Speed Fan
- With low, medium, high, and power boost settings, you can choose the ideal fan speed for every cooking adventure, from gentle simmering to high-heat searing.
585 or 1,170 CFM Motor Sold Separately
- Requires a 585 or 1,170 CFM Motor Class, allowing you to customize a powerful ventilation system with your choice of commercial-style blowers (two blower options sold separately).
Push Button Control
- Allow for quick fan and light adjustments.
Two LED Lights with Night Light Setting
- Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Two Food Warming Lamps
- Radiate heat downwards to hold cooked items at serving temperature for up to an hour, allowing you to focus on other steps in your creative process or finish one dish while another rests.
Removable Stainless Steel Baffle Filters
- Help capture the grease, steam, and odors of high-heat cooking. The stainless steel design adds to the hood's bold commercial-style look, and the filters are removable for easy cleaning with soap and water.
Power Boost Function
- Assists high-heat cooking by activating maximum fan speed for five minutes to help clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Automatic Turn On
- Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
105,000 BTU Rating
- Pairs with KitchenAid® Commercial-Style Ranges, Rangetops, and other models with total burner outputs up to 105,000 BTU.
KitchenAid® Commercial-Style Wall-Mount Canopy Hoods
- Add industrial style with the bold look of stainless steel. Choose from models featuring an exposed chimney or hidden ductwork.
KVWC956KSS Owners Manual
Specifications
Smart
WiFi
No
Bluetooth
No
Configuration and Overview
Filter
Removable Stainless Steel Baffle Filters
Damper Included
Yes
Control Type
Buttons
Food Warming Lamps
2
Hood Type
Wall-Mount Canopy
Night Light
Yes
Task Lighting
Yes
Task Light Type
LED
Size
36"
Power Boost
Yes
Number of Task Light Settings
1
Number of Night Light Settings
1
Night Light Type
LED
Dimensions
Width
36"
Net Weight
30 lb.
Height
36"
Gross Weight
35 lb.
Depth
25"
Ventilation System
Venting
Exterior
Vent Fan Location
Side
Sound Min Speed
2.5
Sound Max Speed
12.5
Number of Speeds
4
Minimum Air Flow Capacity
585 CFM Motor Class - Sold Separately
Maximum Air Flow Capacity
1,170 CFM Motor Class - Sold Separately
Exhaust Vent Location
Top
Duct Length
13"
Duct Direction
Vertical
Blower Motor
Blower Motor to be Purchased Separately
Blower Included
No
Auto Function
Auto On
Dimensions
Width
36 Inch
Depth
25 Inch
Height
36 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Canopy Pro Style
Color
Stainless Steel
Blower Included
No
Fingerprint Resistant
No
Mounting Type
Wall Mount
Glass Canopy
No
GTIN
UPC
883049590738
Features
Dishwasher Safe Filters
No
Delay Shut-Off
No
Filter Type
Baffle
Number of Fan Speeds
4
Lights
LED
Lighting Levels
2
Capacity
CFM
1,170 CFM
Product Information
Brand
KitchenAid
Model
KVWC956KSS
General
Series
Commercial-Style
Manufacturer
KitchenAid
