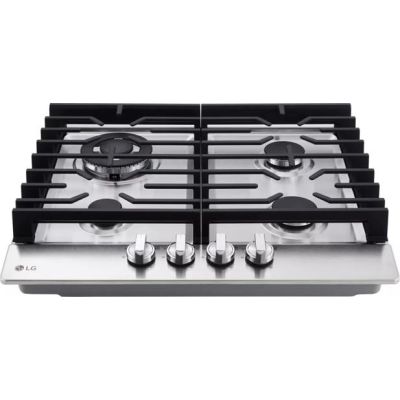

About the LG CBGD2414S
- 24 Inch Gas Cooktop with 4 Sealed Burners
- Continuous Cast-Iron Grates
- 14K BTU Ultraheat™ Burner
- Front Center Knob Control
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
23 3/8"
Height:
4 27/64"
Depth:
20 1/4"
Cutout Width:
22 1/8"
Cutout Depth:
18 57/64"
Volts:
120 Volts
Amps:
5
Enjoy high-performance cooking, consistent heat, and heavy-duty continuous cast-iron grates with LG's 24 Inch Gas Cooktop. With the 14K BTU Ultraheat™ Burner, instantly go from sizzle to true simmer. In addition, the five sealed burners and continuous cast-iron grates simplify meal preparation while providing an even and steady cooking surface for your cookware.
About LG
LG home appliances are right in step with your busy world by offering the next step in home innovations. With technologically advanced solutions and top-performing products, LG appliances allow your home to work more efficiently so you can spend more time on the things that matter most. LG offers a full range of kitchen appliances, innovative appliance accessories, vacuums, air conditioners, and more - all designed to make life good.
Key Features
4 Sealed Burners
- Four cooktop burners of varying sizes and power levels provide all the power and precision you need.
Continuous Cast-Iron Grates
- Not only do our heavy-duty, continuous cast-iron grates look great, but they also help provide even heating and a stable surface for your cookware.
14K BTU Ultraheat™ Burner
- Turn up the power with a burner that can rapidly go to high heat for quick boiling, or turn down to a true simmer.
Front Center Knob Control
- Provide effortless operation with just a turn of a knob.
Manuals & Downloads
CBGD2414S Installation Guide
CBGD2414S Owners Guide
CBGD2414S Specification Sheet
Specifications
Product Information
Warranty Terms
1 year ? LG appliances include a one-year limited parts and labor warranty. For full details, visit https://www.lg.com/us/support
Brand
LG
Model
CBGD2414S
Overview
Cooktop Burner Type
Sealed Gas Burner
Control Location
Front Center
Burner/BTU - Right Front
6900 / 6900
Burner / BTU - Right Rear
6900 / 6900
Burner / BTU - Left Rear
14000 / 14500
Burner / BTU - Left Front
5500 / 4800
Auto Re-lgnition
No
Cooktop Control Type
Knobs
EasyClean® Cooktop
No
Number of Burners
4
Type
24" Gas Cooktop
Power/Ratings
Required Power Supply
120 V / 60Hz AC
KW Rating at 240V
120V 60Hz / 0.01A
Dimensions & Weight
Shipping Weight
38.93 lb.
Shipping Dimensions (W x H x D)
26 7/16" x 6 13/16" 22 15/16"
Product Weight
33.03 lb.
Product Dimensions (W x H x D)
23 3/8" x 4 27/64" x 20 1/4"
Cut-out Dimensions (W x H x D)
22 1/8" x 18 57/64"
Technical Details
Voltage
120 Volts
Amps
5
GTIN
UPC
195174070413
EAN
0195174070413
Appearance
Type
Rangetop
Trim Color
Stainless Steel
Surface Color
Stainless Steel
Style
Sealed Burner
Color
Stainless Steel
Number of Burners
4
Fuel Type
Gas
Control Type
Knobs
Accessories
Conversion Kit
Yes
Cast Iron Griddle
No
Limited Warranty
Parts & Labor
1 Year
Burner
Burner 4 Output
6900
Burner 3 Output
5500
Burner 2 Output
6900
Burner 1 Output
14500
Dimensions
Actual Width
23 3/8 Inch
Actual Height
4 27/64 Inch
Actual Depth
20 1/4 Inch
Cutout Width
22 1/8 Inch
Cutout Depth
18 57/64 Inch
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
No Accessory
General
Manufacturer
LG
