About the Liebherr HCB1580

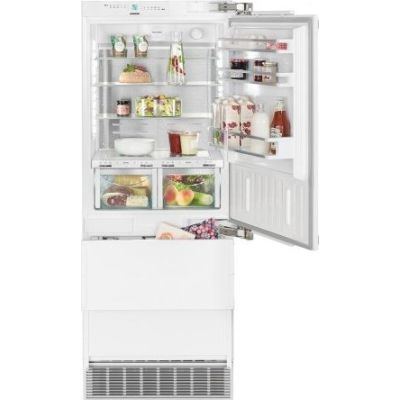

- HCB1580 | Liebherr 30" Built-In Bottom Freezer Refrigerator - Panel Ready, Right Hinge
Brand:
Hinge Side:
Right
Total Capacity:
14.1 Cu. Ft.
Width:
29 13/16"
Height:
79 11/16"
Depth:
24 1/16"
Key Features
BioFresh Crisper Drawers
- Liebherr's patented BioFresh system provides the perfect climate for keeping your foods fresh longer and makes a substantial contribution to a healthy diet.
- With the temperature maintained at just above freezing and at an ideal humidity level, fruit, vegetables, meat and fish retain their vitamins and minerals, delicate flavor and attractive appearance for up to three times longer.
DuoCooling System
- The Dual Refrigeration System creates optimal conditions in both the Refrigerator and Freezer. Separate silent cooling systems ensure accurate temperature and humidity control.
- Ice-cold dry air circulates in the Freezer section, while the Refrigerator maintains cool moist air, thus sealing in vitamins and safeguarding food. This technology also preserves the flavor and texture of foods since there is no transfer of unwanted air.
Ice Maker
- Serves up fresh, crisp ice.
GlassLine Shelving
- The elegant yet tough GlassLine shelves are scratch resistant and easy to clean as well as dishwasher safe.
- The space-saving shelves are designed for organization and are completely adjustable to suit your needs and the contents of the refrigerator; additionally the lighting shines through for a brighter interior.
Stainless Steel Back Wall
- Prevents dripping and the build-up of ice.
SuperCool and SuperFrost
- The SuperCool function reduces the temperature of the refrigerator to +36° F (+2° C) for 6 hours. This is ideal for chilling fresh food quickly.
- In the freezer, the SuperFrost function ensures that the vitamins in food are optimally preserved when frozen. It quickly reduces the temperature in your freezer to as low as -25° F (-32° C) so you can freeze fresh food quickly and carefully.
SuperQuiet
- Noise is kept to a minimum with virtually silent, speed controlled compressors and a low nose cooling circuit; while also ensuring exact performance, energy efficiency and SuperQuiet operation.
SoftTelescopic Freezer Drawers
- Provide reliable self-retraction and soft closing.
LED Lighting
- Distinctive LED light columns are integrated into both sides of the compartment liner. Inside the columns are numerous cool LED lights that ensure uniform lighting throughout the interior.
No Frost Performance
- Food is frozen with chilled, recirculating air, while expelling humidity. As a result, the freezer is always free of ice, ensuring long-term freshness.
Electronic Control
- The intuitive electronic touch control panel ensures all functions are easy and convenient to use as well as guarantees that the settings selected remain accurate and constant.
Total Capacity
- 14.1 cu. ft.
Certifications
- Star-K Certified
- Sabbath Mode
- ENERGY STAR®
Manuals & Downloads
HCB1580 Energy Guide
Specifications
Overview
Total Capacity
14.1 Cu. Ft.
Noise Level
42 dB
Type of Control
Digital Temperature Display in the MagicEye
Control Operation
Touch-Electronic
Defrost
Automatic
Door Open Alarm
Yes
FrostControl
Yes
SuperCool
Yes
SuperFrost
Yes
LED Lighting
Yes
DuoCooling
Yes
Forced Air Cooling
Yes
Ice Maker
Fixed water connection
Ice Cube Capacity in 24h
3.1 Lbs.
Ice Cube Stock
7.9 Lbs.
Energy Consumption Per Year
507 kWh/a
Fresh Food Section
Capacity
9.8 cu. ft. (7.7 cu. ft. Refrigerator, 2.1 cu. ft. BioFresh)
Number of Shelves
4 (3 Full-Width Adjustable; 1 Full-Width Fixed)
BioFresh Crisper Drawers
2 Half-Width
Door Bins
3
Gallon Storage
Yes
Freezer Section
Capacity
4.3 cu. ft.
Drawers
2
Certifications
Star-K Certified
Yes
Sabbath Mode
Yes
ENERGY STAR®
Yes
Electrical Specifications
Amps
15A
Volts
120V
Warranty
Sealed System Parts Only
6th Through 12th Year
Sealed System Only (Parts & Labor)
5 Years
Parts & Labor
2 Years
Dimensions and Weights
Width
29 13/16"
Depth
24 1/16"
Height
79 11/16"
Cutout Width
30" (60" Side-by-Side)
Cutout Depth
24" + Panel Thickness
Cutout Height
80" or 84"
Shipping Width
32 5/16"
Shipping Depth
29 3/16"
Shipping Height
82 11/16"
Net Weight
335.1 Lbs.
Shipping Weight
363.8 Lbs.
Product Information
Brand
Liebherr
Model
HCB1580
MPN
HCB-1580
Appearance
Type
Built In
Style
Bottom Freezer
Size
Full Size
Double Freezer Drawers
Yes
Counter Depth
Yes
Glass Door
No
Undercounter
No
Hinge Side
Right
Reversible Doors
No
Accepts Custom Panels
Yes
Color
Panel Ready
Door Color
Panel Ready
Freezer Drawers
Double
Door Hinge Covers/Hidden Hinges
Yes
Leveling Legs
Yes
Capacity
Refrigerator Capacity
9.8 Cu. Ft.
Freezer Capacity
4.3 Cu. Ft.
Total Capacity
14.1 Cu. Ft.
Dimensions
Width
29 13/16 Inch
Depth
24 1/16 Inch
Depth with Door at 90°
55 5/8 Inch
Height
79 11/16 Inch
Features
Column
No
Stainless Steel Interior
Yes
Fingerprint Resistant
No
Refrigerator Features
Type of Shelves
Glass
No. of Shelves
4
Slide-out Shelves
No
Spill Safe Shelves
No
Cantilever Shelves
No
Split Shelves
No
No. of Door Bins
3
Adjustable Door Bins
Yes
Gallon Door Storage
Yes
Humidity Controlled Crispers
2
Temperature Zones
Dual
WiFi Connected
No
Keurig Brewing System
No
Touch Screen
No
Freezer Features
Defrost
Frost-Free
Ice Maker
Yes
Secondary Ice Maker
No
Ice Dispenser
No
Quick Freeze
Yes
Technical Details
Energy Star Rated
Yes
Star-K Certified
Yes
ADA Compliant
No
Approved for Commercial Use
No
Approved for Medical Use
No
Approved for Outdoor Use
No
Amps
15
Voltage
120 Volts
Settings
Digital Temperature Control
Yes
Convertible Freezer/Refrigerator
No
Sabbath Mode
Yes
GTIN
UPC
9005382213957
Warranty
Parts
2 Years
Labor
2 Years
Smart
WiFi
No
Water
Water Dispenser
No
Hot Water Dispenser
No
Sparkling Water Dispenser
No
Water Filtration
Yes
Ice
Daily Ice Production
3.1
Ice Capacity (lbs.)
7.9
Shabbos Compliance
Certification
STAR-K
General
Manufacturer
Liebherr
