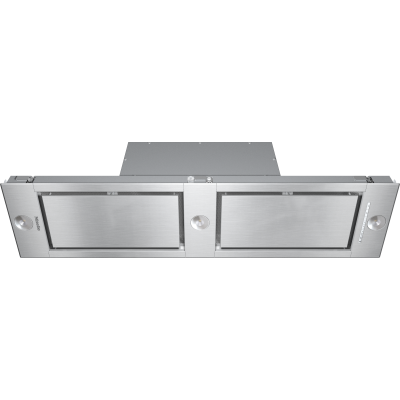

About the Miele DA2628
- 46 Inch Range Hood with LED Lights
- Energy Efficient
- ECO Motor
- Wi-Fi
- Stainless Steel Filters
- Auto Switch-Off and Delayed Shutdown
Brand:
CFM:
625 CFM
Speeds:
4
Venting Type:
Ducted
Style:
Standard Hood
Width:
46 1/2"
Height:
2"
Depth:
11 5/8"
Key Features
LED Lights
- Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light
ECO Motor
- Powerful and quiet: DC motor with up to 70% energy savings compared with conventional motors.
Wi-Fi
- The required blower output is automatically controlled by the cooktop settings.
Stainless Steel Filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
Auto Switch-Off
- Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.
Delayed Shutdown
- Odor-free room air: after cooking, the blower can be set to switch off automatically after 5 or 15 minutes
Design Variety
- Clear design, intelligent technology: you can choose between many models and features.
Edge Vented
- Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor
Handcrafted in Germany
- Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product
Perfect Craftsmanship
- Unique characteristics of Miele hoods: precise contours and precision joints.
Safety Turn Off
- Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.
DA2628 Installation and User Manual
Specifications
GTIN
JAN
9017237294
UPC
28262855USA
EAN
4002516024439
Technical data
Fuse rating in A
15
Number of phases
1
Vent connection at top
Yes
Vent connection at top and rear
Yes
Voltage in V
120
Total connected load in kW
0.36
Diameter of vent connection in in.
6
Wireless stick Con@ctivity 2.0
XKS 3000 Z
Overview
Delayed shutdown for 5 or 15 minutes
Yes
Programmable 'Intensive' switch-off
Yes
Intensive setting
Yes
Power levels (number excl. Intensive)
3
Backlit controls
Yes
Electronic controls
Yes
Recirculated mode
Air extraction
Programmable grease filter saturation indicator
Yes
EasyClean CleanCover hood liner
Yes
Power management system
Yes
Eco package
Yes
WiFiConn@ct
Yes
Dishwasher-safe stainless steel grease filters
4
LED ClearView lighting
Yes
Light intensity in Lx
700
Color temperature in K
3,500
Light dimmer function
Yes
Dual-action blower
Yes
DC motor
Yes
Safety
Safety shut-off
Insert ventilation hood
Yes
Features
Dishwasher Safe Filters
Yes
CFM
625 CFM
Speeds
4
Halogen Lighting
No
Number of Fan Speeds
4
Dimensions
Height
2 Inch
Depth
11 5/8 Inch
Width
46 1/2 Inch
Appearance
Blower Type
Internal
Venting Type
Ducted
Mounting Type
Under Cabinet
Color
Stainless Steel
Type
Cabinet Insert
Style
Standard Hood
Product Information
Model
DA2628
Brand
Miele
Dimensions and Weight
Canopy width in in.
46 1/2
Height of hood canopy in in.
2 5/8
Depth of hood canopy in in.
11 5/8
Minimum distance above electric cooktops in in.
24 1/8
Minimum height above gas cooktop
26
Net weight
34 Lbs
Technical Details
Voltage
120 Volts
Amps
15
Energy Star Rated
No
General
Manufacturer
Miele
