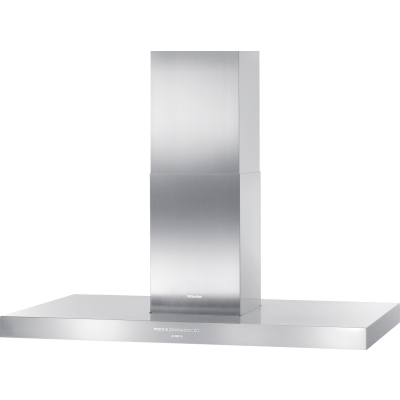

About the Miele DA4248VD
- 48 Inch Stainless Steel Ventilation Hood with Con@ctivity
- CleanCover
- Grease Filters
- Design Variety
- LED ClearView Lighting
- Automatic 'Intensive' switch-off
- Safety turn off
- Delayed shutdown and Motorized canopy
Brand:
CFM:
625 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
47 1/4"
Height:
41 1/4"
Depth:
27 1/2"
A brand is like an enduring promise that needs to be fulfilled continuously. Miele adheres to this promise with the utmost commitment. For more than 115 years, Miele stands for highest product quality. Miele - that means durability, reliability, security and peace of mind. As part of this philosophy, Miele avows itself to Germany as its center of production. Ninety percent of the total value creation is generated here. "Made in Germany" is a promise of quality and Miele strives to fulfill the high requirements of their customers and provide them with appliances of the highest quality and tested durability to make their lives more comfortable.
Key Features
Con@ctivity
- Automatic operation for intelligent blower control
CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor
Grease Filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
Design Variety
- Clear design, intelligent technology: you can choose between many models and features.
LED ClearView Lighting
- Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light
Automatic 'Intensive' switch-off
- Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.
Safety turn off
- Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.
Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Motorized canopy
- Best possible ergonomics The ventilation hood canopy automatically moves to the ideal work position
DA4248VD DA4248VD Fitting
Specifications
Product Information
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Model
DA4248VD
Brand
Miele
MPN
DA 4248V D
Appearance
Mounting Type
Island Mount
Color
Stainless Steel
Type
Hood
Style
Chimney Style
Venting Type
Convertible
Blower Included
Yes
Dimensions and Weight
Net weight in lbs. (kg)
109 (49.0)
Minimum height above gas cooktop in
26
Minimum distance above electric cooktops in in.
24 1/8
Depth of hood canopy in in.
27 1/2
Height of hood canopy in
2 7/8 (70)
Canopy width in
47 1/4 (1,198)
Overall hood height for vented and external in
29 3/4 - 41 1/4
Capacity
CFM
625 CFM
GTIN
UPC
28424855USA
EAN
4002515990162
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
Features
Dishwasher Safe Filters
Yes
Dimensions
Height
41 1/4 Inch
Depth
27 1/2 Inch
Width
47 1/4 Inch
Technical data
Diameter of vent connection in in.(mm)
6 (150)
Number of phases
1
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.51
Overview
Motor-operated cooker hoods
Yes
Acoustic package
Yes
Programmable grease filter saturation indicator
Yes
Delayed shutdown for 5 or 15 minutes
Yes
Programmable 'Intensive' switch-off
Yes
Intensive setting
Yes
Power levels (number excl. Intensive)
3
Backlit controls
Yes
Electronic controls
Yes
Recirculated mode
air extraction
Variable height available as special order
Yes
Customization possible on request
Yes
EasyClean CleanCover hood liner
Yes
Miele@home
Yes
Safety shut-off
Yes
AC motor
Yes
Dual-action blower
Yes
Light dimmer function
Yes
Color temperature in K
3,500
Light intensity in Lx
600
LED ClearView lighting
Yes
Dishwasher-safe stainless steel grease filters
6
Automatic function Con@ctivity 2.0 (Zigbee)
Yes
WiFiConn@ct
Yes
Color
Stainless steel
General
Manufacturer
Miele
