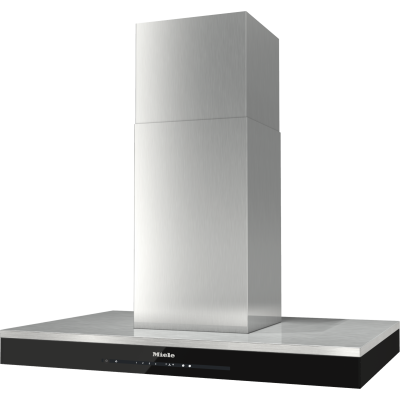

About the Miele DA6698DSS
- 36 Inch Island Hood with LED Lighting
- Con@ctivity
- Automatic Switch-off
- Active AirClean
- Stainless-steel Grease Filters
- Safety Turn Off and Tempered Glass
A brand is like an enduring promise that needs to be fulfilled continuously. Miele adheres to this promise with the utmost commitment. For more than 115 years, Miele stands for highest product quality. Miele - that means durability, reliability, security and peace of mind. As part of this philosophy, Miele avows itself to Germany as its center of production. Ninety percent of the total value creation is generated here. "Made in Germany" is a promise of quality and Miele strives to fulfill the high requirements of their customers and provide them with appliances of the highest quality and tested durability to make their lives more comfortable.
Key Features
- Con@ctivity
- Optimum room climate: The required blower output is automatically controlled by the cooktop settings.
- Stainless-steel grease filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- LED ClearView Lighting
- Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light.
- Automatic 'Intensive' switch-off
- Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.
- Active AirClean filter
- Efficient in absorbing odors: In recirculation mode odors are absorbed and neutralized completely.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.
- Tempered glass
- To be on the safe side: If the glass should break, it will shatter into many small, blunt pieces.
Manuals & Downloads
DA6698DSS Installation Instructions
DA6698DSS Specification Sheet
DA6698DSS Warranty Page
Specifications
GTIN
UPC
28669855USA
EAN
4002516024651
Overview
Safety shut-off
Yes
Single-ply safety glass (ESG)
Yes
Blower
Dual-action blower
Lighting
LED ClearView lighting
RAL color possible as special order
Yes
Customization possible on request
Yes
Variable height available as special order
Yes
Operating modes
Yes
Recirculated mode
Convertible
Control panel
Electronic controls
Touch controls on glass
Yes
Dishwasher-safe stainless steel grease filters
3
Automatic function Con@ctivity 2.0 (Zigbee)
Yes
WiFiConn@ct
Yes
Miele@home
Yes
Networking of domestic appliances
Yes
EasyClean CleanCover hood liner
Yes
Acoustic package
Yes
Programmable charcoal filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Delayed shutdown for 5 or 15 minutes
Yes
Programmable 'Intensive' switch-off
Yes
Intensive setting
Yes
Power levels (number excl. Intensive)
3
Technical Data
Total connected load in kW
0.36
Fuse rating in A
15
Number of phases
1
Voltage in V
120
Dimensions and Weight
Overall hood height for vented and external in in.
27 7/8 - 39 5/8
Overall hood height for recirculation in in.
30 1/8 - 42 3/8
Canopy width in in.
35 3/8
Depth of hood canopy in in.
23 5/8
Net weight in lbs.
78
Minimum height above gas cooktop in
26
Minimum distance above electric cooktops in in.
24 1/8
Height of hood canopy in in.
3 3/8
Product Information
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Brand
Miele
MPN
DA6698DSS
Model
DA6698DSS
Appearance
Type
Hood
Style
Standard Hood
Mounting Type
Island Mount
Color
Stainless Steel
Blower Included
Yes
Venting Type
Convertible
Dimensions
Depth
23 5/8 Inch
Width
35 3/8 Inch
Height
3 3/8 Inch
Features
Dishwasher Safe Filters
Yes
Technical Details
Voltage
120 Volts
Amps
15
General
Manufacturer
Miele
